2-10 متر در دقیقه ماشین آلات تشکیل رول فلز 12 ماه ضمانت

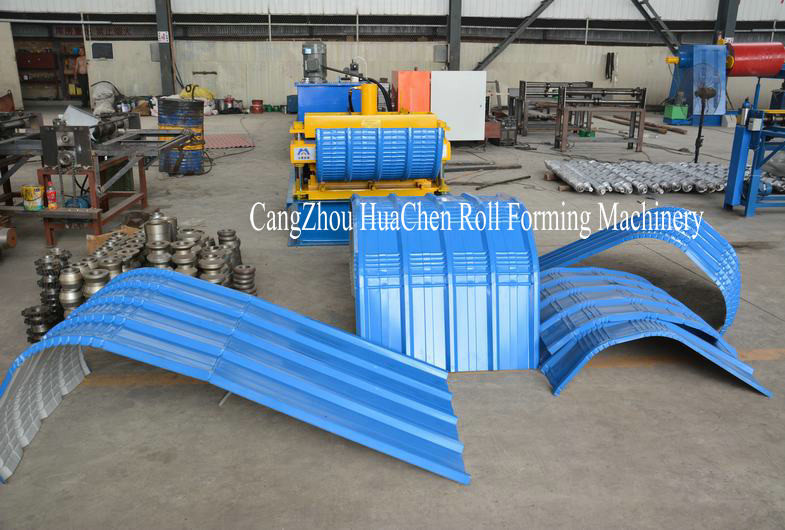

Our Roofing Tile Roll Forming Machine can produce various of steel roof and wall panel, it is a new building materials, the products are widely used as the roof and wall of factory, warehouse, garage, gymnasium, exhibition center, cinema, theatre, etc. It has many advantages, such as easy installation, short building period, beauty, light weight but high strength.

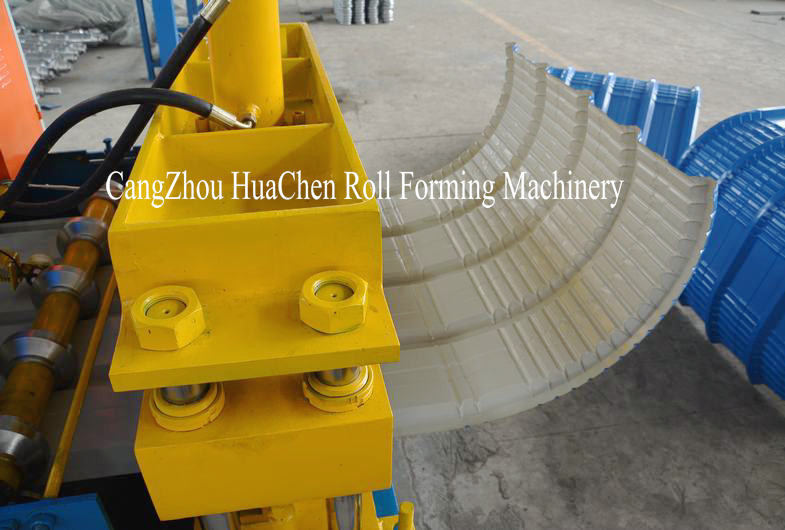

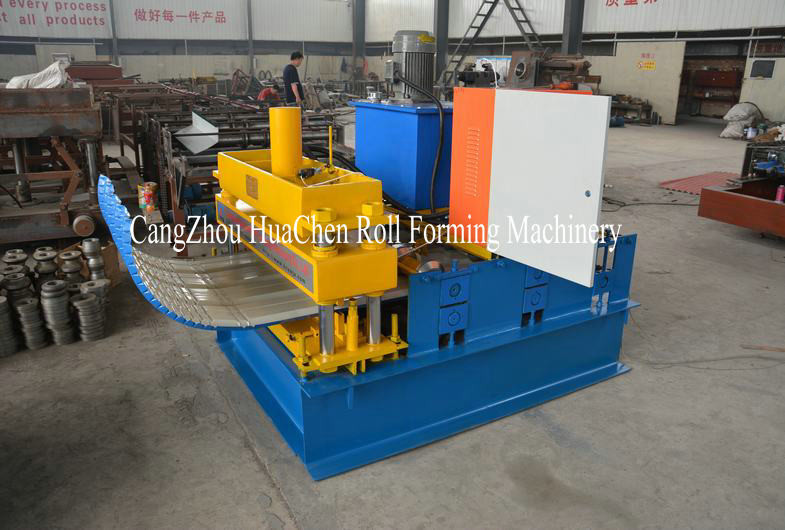

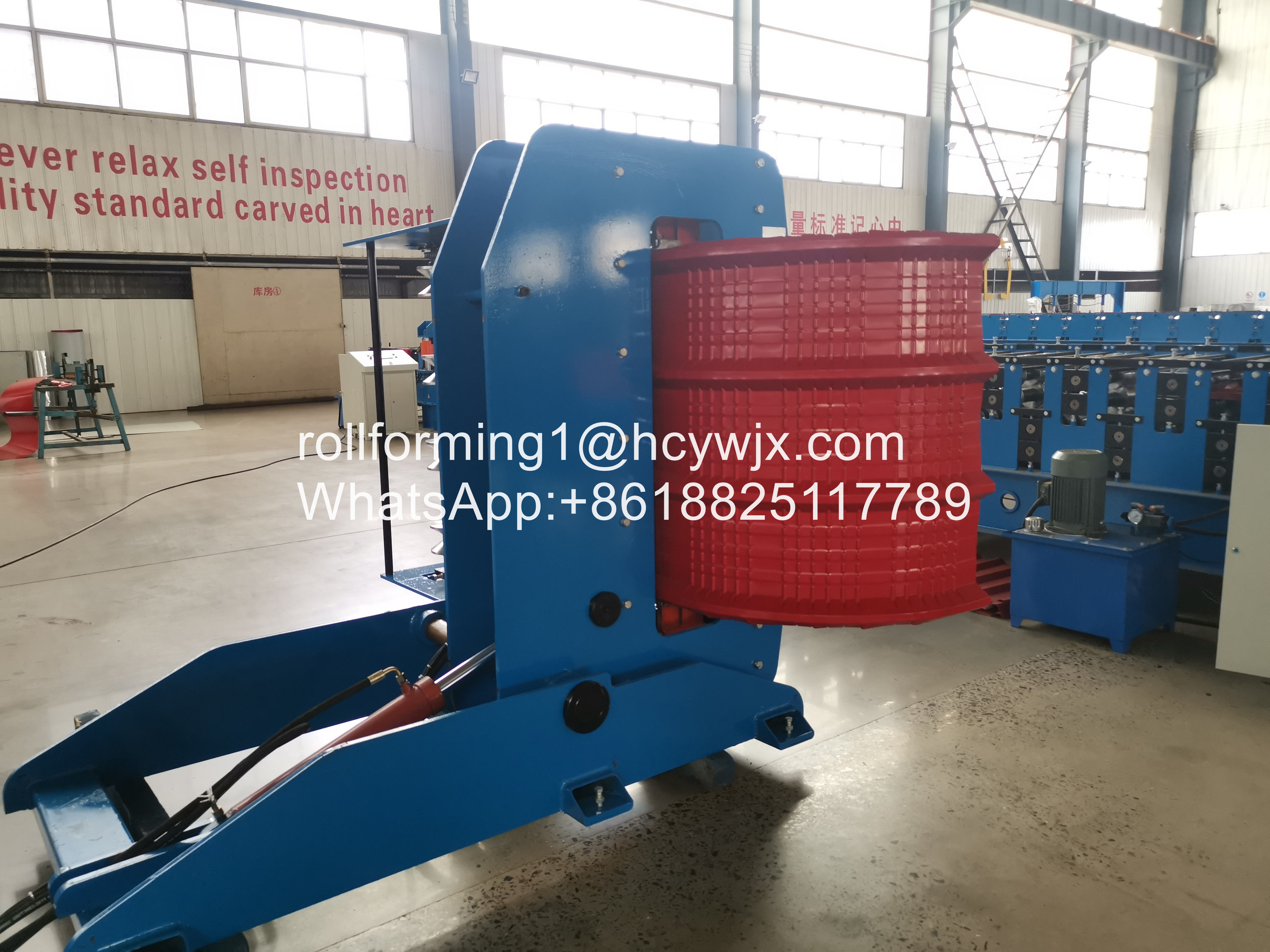

Metal Roofing Hydraulic Curving Profile Machine​ Features

Metal Roofing Hydraulic Curving Profile Machine Machine​ Parts



Name: Rollers In order to get high quality product, our machine adopts welded steel frame structure, AC frequency conversion motor reducer drive, chain transmission, roller surfaces polishing, hard plating, heat treatment and chrome coating. Roller chrome coated thickness: 0.05 mm Roller material: Forging Steel 45# heat treatment

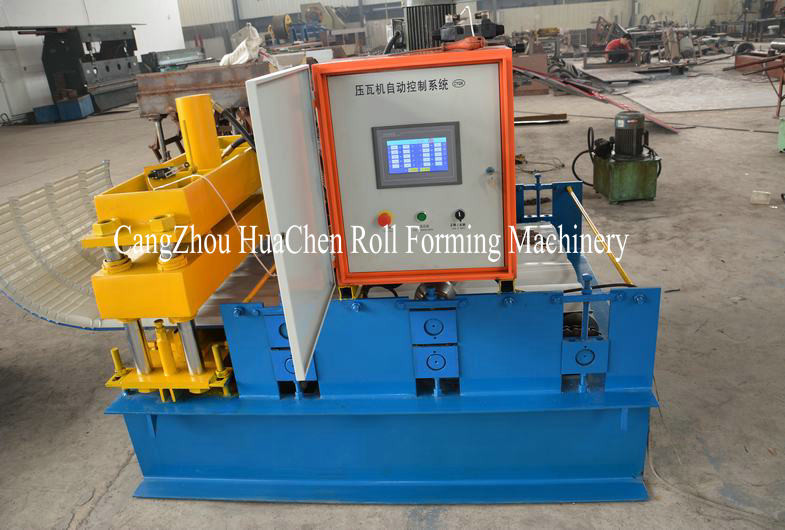

PLC control system Brand : EURA or Customized EURA PLC is adopted to organize all actions of the machine. The length of workpiece is adjustable according to the setting of on the PLC.  In order to make the machine has a long service life and easy maintenance; we only adopt globally famous electrical components. And by our special designed program, the HIM (Human Machine Interface) is very easy to be adopted by any level of operators.



Our Service



Pre-Sales Service * Inquiry and consulting support. * Sample testing support. * View our Factory.	After-Sales Service * Training how to instal the machine, training how to operate the machine. * Engineers available to service machinery overseas.


Packing & Delivery

Size: 2600 (L) * 850 (W) * 1510 (H) Weight: 3.1T 1.Main Roll Forming Machine and un-coiler is nude packing (If you need, we can also packed it with water-proof plastic) 2. PLC control system and motor pump are packed with water proof paper,spare parts in carton box. 3.One set of machine needs a 40' container to shipping.
