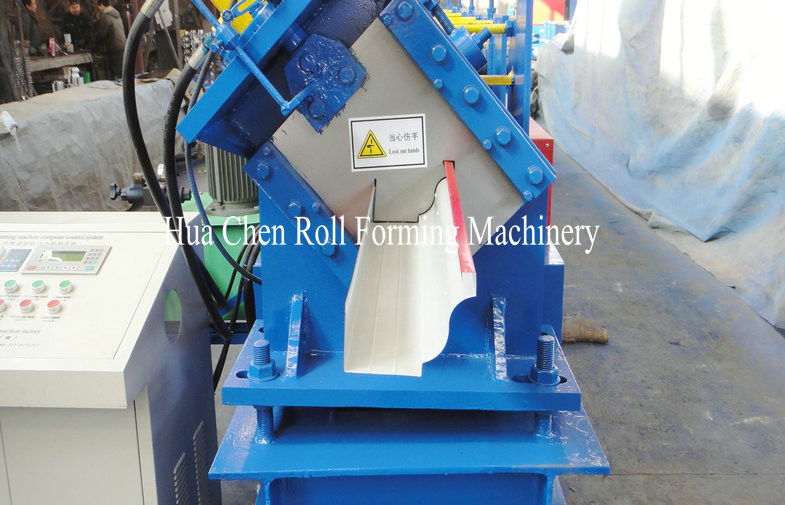

Run Copper Half Round Seamless Gutter Machine with manual Decoiler
Quick Detail:
The Roll forming machine can Manufacturing a various kinds of gutters profile to satisfy customers’ required. Produced gutters are in fashionable outline and high superiority. Gutters are so mostly used in our daily life, so this machine will surely bring you a lot of profitable benefits to you.
Description:
• Polyurethane Drive Rollers
• Stainless Steel Forming Rollers
• Push Button RUN/JOG Controls at Entry and Exit Ends
• Forward Pulling, Easy Cut Shear
• Power Interruption Safety Circuit
• Two 360º Rotatable Reel Stands with Easy Lift Reels
• Electric Motor ¾ HP, 220V, 50 Hz,
• Welded Tubular Steel Frame
Specifications of Half Round Seamless Gutter Machine
| Seamless Gutter Machine | Item | Offered specification |
| Main forming Machine | 5K,6K,7K,HALFROUND 3”/4”/5”/6” | |
| (Each machine does one size and configuration) | ||
| Material width | Depend on profile | |
| Rolling Speed | 0-10m/min(not include cutting time) | |
| Material Thickness | 0.3-0.8mm G250mpa | |
| Drive System | •Urethane top and bottom drive rollers for smooth even, non-twisting drive | |
| Un Coiler | 3 ton manual de-coiler (Built in the machine) | |
| Roller Stations | 11 stations | |
| Roller Material | 45# forge steel, coated with chrome,covered with rubber | |
| Shaft Material and DIA | ￠50mm, material is 45# forge steel | |
| Main Motor Power | 3.0kw | |
| Cutoff Mechanism(alternative) | •Hand operated shear with built-in | |
| •crimper or Cutoff saw | ||
| Tolerance | ±1.5mm/3M | |
| Electric Source | 220V, 60HZ,3 phase | |
| Also can satisfy customer’s require | ||
| Way Of Drive | 1 inch single chain |
Applications:
Our mission is to provide excellent custom gutter machines and tools for professional gutter installation and quality product at competitive prices, such as K-STYLE Gutter and Half Round gutter forming machines for
Residential Gutter Machines and Commercial Gutter Machines with our patent design technology.
Competitive Advantage:
Half round Gutters are attached to the roof edges and used to draw water down and away from the house
and its foundation. Most gutters consist of sections of gutter, drop outlets and downspouts. Gutters can be
constructed out of aluminum, copper, galvalume, galvanized steel, copper penny aluminum, freedom gray
copper, preweathered zinc, copperplus, designer copper aluminum, lead coated copper, paint grip steel.
We have the gutter machines for various needs: K-style, Half-round, and Box, offers a wide selection of
gutter machines and machines to cover both the residential and commercial industries. Custom gutter
machine is according your requirement, gutter samples or drawings.
The new patented technical solution has allowed the remarkable reduction of the machine overall
dimensions, while guaranteeing top quality products in all materials (copper, zinc-titanium, pre-painteed
metal, zinc, aluminium, etc.)We design innovative range of gutter machines for the production of half round gutters with traditional profiles .
