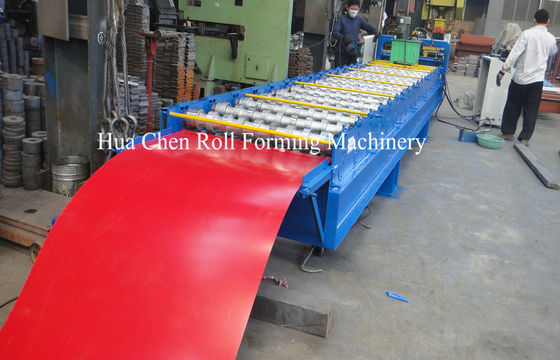

High Speed 3 Phases Shutter Door Roll Forming Machine With 18 Rows

High Speed 3 Phases Shutter Door Roll Forming Machine With 18 Rows
High Speed 3 Phases Shutter Door Roll Forming Machine With 18 Rows High Speed 3 Phases Shutter Door Roll Forming Machine With 18 Rows High Speed 3 Phases Shutter Door Roll Forming Machine With 18 Rows High Speed 3 Phases Shutter Door Roll Forming Machine With 18 Rows High Speed 3 Phases Shutter Door Roll Forming Machine With 18 Rows

تصویر بزرگ :  High Speed 3 Phases Shutter Door Roll Forming Machine With 18 Rows

جزئیات محصول:
Place of Origin: Botou Hebei China
نام تجاری: HC
گواهی: ISO
Model Number: HC800
پرداخت:
Minimum Order Quantity: 1set
قیمت: 5000-19000USD
Packaging Details: Main machine is nude,the computer control box is packed by carton box
Delivery Time: 30days
Payment Terms: 30% deposit by T/T in advance and 70% balance after inspection confirmation before shipment
Supply Ability: 20 sets/month

High Speed 3 Phases Shutter Door Roll Forming Machine With 18 Rows

شرح
type: Shutter Door Roll Forming Machine thickness: 0.3-0.6mm
warranty: 18 month
برجسته:

steel roll forming machine,door frame roll forming machine

,

door frame roll forming machine



Shutter Door Roll Forming Machine Application

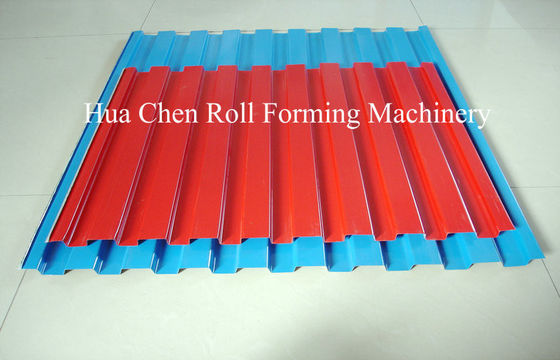

Our Shutter Door Roll Forming Machine can produce various of steel roof and wall panel, it is a new building materials, the products are widely used as the roof and wall of factory, warehouse, garage, gymnasium, exhibition center, cinema, theatre, etc. It has many advantages, such as easy installation, short building period, beauty, light weight but high strength.


SPECIFICATIONS FOR Shutter Door Roll Forming Machine

Main Roll Forming Machine
Roller station 18 rows
Material of roller High grade 45# forged steel plated with hard chrome plating
Material of cutter Cr12 mould steel with quenched treatment

Material
Type PPGI GI AL
Material width customized
Material thickness 0.3-0.8mm

Others
Speed 20m/min
PLC system EURA or customized
Weight 4..5T

High Speed 3 Phases Shutter Door Roll Forming Machine With 18 Rows 0High Speed 3 Phases Shutter Door Roll Forming Machine With 18 Rows 1

Roof Panel Cold Roll Forming Equipment Features

We do high standard roll forming machine for export about 10 years.
We have mature foreign trade team,senior engineers, experienced workers to make you satisfied.
We have machines at more than 90 cuntries and regions,and keep good business relationship.
we offer one year free warranty and free service for whole life of any machine.



Certifications
High Speed 3 Phases Shutter Door Roll Forming Machine With 18 Rows 2High Speed 3 Phases Shutter Door Roll Forming Machine With 18 Rows 3High Speed 3 Phases Shutter Door Roll Forming Machine With 18 Rows 4

Metal Roofing Sheet Roll Forming Machine Parts

Detailed Images

High Speed 3 Phases Shutter Door Roll Forming Machine With 18 Rows 5 Name: Rollers
In order to get high quality product, our machine adopts welded steel frame structure, AC frequency conversion motor reducer drive, chain transmission, roller surfaces polishing, hard plating, heat treatment and chrome coating.
Roller chrome coated thickness: 0.05 mm
Roller material: Forging Steel 45# heat treatment

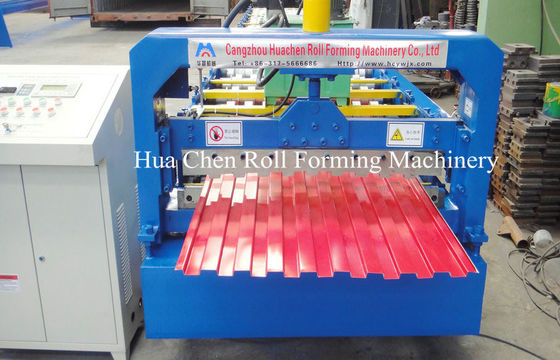

Main Roll Former

We have experieced workers to design the rollers as customized profile drawing , and adopts welded steel frame sturcture, AC frequency conversion motor reducer drive, chain transmission , to get strong machine for good finish products .



High Speed 3 Phases Shutter Door Roll Forming Machine With 18 Rows 6
High Speed 3 Phases Shutter Door Roll Forming Machine With 18 Rows 7

Hydraulic Cutting System

It adopts the hydraulic drive and automatic location to decide the dimension and cut the target products.
With non stop cutting
Material of blades: Cr12,quenching treatment



Our Service



High Speed 3 Phases Shutter Door Roll Forming Machine With 18 Rows 8 High Speed 3 Phases Shutter Door Roll Forming Machine With 18 Rows 9

Pre-Sales Service

* Inquiry and consulting support.
* Sample testing support.
* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to operate the machine.
* Engineers available to service machinery overseas.


Packing & Delivery

High Speed 3 Phases Shutter Door Roll Forming Machine With 18 Rows 10 Size: 8600 (L) * 1500 (W) * 1510 (H)
Weight: 4.5T
1.Main Roll Forming Machine and un-coiler is nude packing (If you need, we can also packed it with water-proof plastic)
2. PLC control system and motor pump are packed with water proof paper,spare parts in carton box.
3.One set of machine needs a 40' container to shipping.


High Speed 3 Phases Shutter Door Roll Forming Machine With 18 Rows 11 High Speed 3 Phases Shutter Door Roll Forming Machine With 18 Rows 12 High Speed 3 Phases Shutter Door Roll Forming Machine With 18 Rows 13
