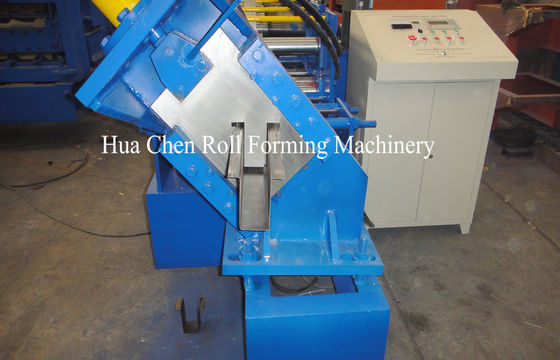

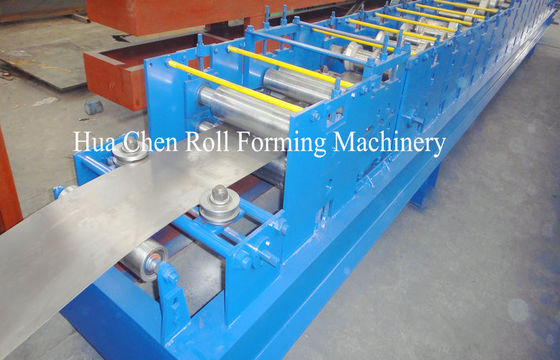

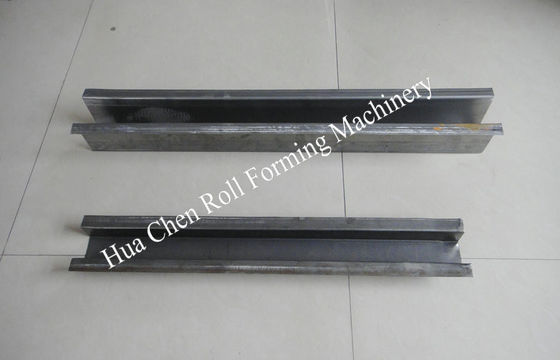

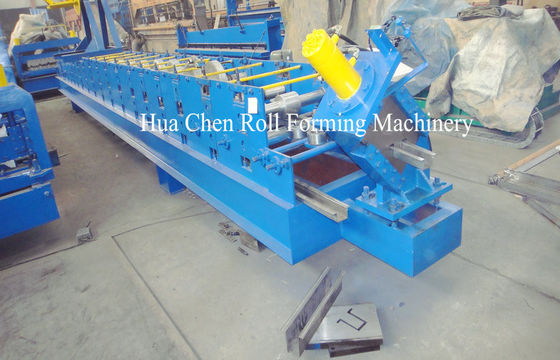

Light Steel Gauge Metal Stud And Track Roll Forming Machine size adjustable CE

Light Steel Gauge Metal Stud And Track Roll Forming Machine size adjustable CE
Light Steel Gauge Metal Stud And Track Roll Forming Machine size adjustable CE Light Steel Gauge Metal Stud And Track Roll Forming Machine size adjustable CE Light Steel Gauge Metal Stud And Track Roll Forming Machine size adjustable CE Light Steel Gauge Metal Stud And Track Roll Forming Machine size adjustable CE

تصویر بزرگ :  Light Steel Gauge Metal Stud And Track Roll Forming Machine size adjustable CE

جزئیات محصول:
Place of Origin: Botou Hebei China
نام تجاری: HC
گواهی: ISO
Model Number: HC210
پرداخت:
Minimum Order Quantity: 1set
قیمت: 15000USD
Packaging Details: Main machine is nude,the computer control box is packed by carton box
Delivery Time: 30days
Payment Terms: 30% deposit by T/T in advance and 70% balance after inspection confirmation before shipment
Supply Ability: 20 sets/month

Light Steel Gauge Metal Stud And Track Roll Forming Machine size adjustable CE

شرح
Type: cold roll forming profile: omega
Thickness: 1mm capacity: 10m/min
weight: 5T warranty: 1 year
برجسته:

Plate roll forming machine,sheet metal forming equipment

,

sheet metal forming equipment



Light Steel Gauge Metal Stud And Track Roll Forming Machine

Product Description

Product Application

Colored steel are widely used in building: the steel-structured large scale warehouses, plants, super markets, shopping malls, trade markets, stadiums, holiday villages, sanatoriums, hotels, villas, residences, and different kinds of greenhouses. What's more, equipment can be designed and manufactured as customers' requests.

Machine Main Parameter Table


Material thickness
1.5-3mm
Material yield stress
230~550 Mpa
Max. forming speed
16m/min
Roller material
45# steel with chrome treatment
Roller driven type
Chain transmission
Controller & operation
PLC & touch screen and button
Hydraulic system pressure
12 Mpa
Hydraulic station motor power
4Kw
Main motor power
11Kw
Total power
15Kw
Total weight
About 6000 Kgs



Quick Detail:



1. Suitable to process: Color steel plate

2. Width of the plate:210mm

3. Rollers: 13 rows

4. Dimensions: 6.6*1.35*1.51m

5. Power: 5.5+4kw

6. Rolling material: shaft bearing steel(quenching)

7. Thickness of the plate:0.8-1.2mm

8. Voltage: 380V 50Hz 3phases

9. Material of the cutting plate: Cr12

10. Hydraulic: 40#

11. Processing precision: Within 1.00mm

12. Control system: PLC control

Light Steel Gauge Metal Stud And Track Roll Forming Machine size adjustable CE 0Light Steel Gauge Metal Stud And Track Roll Forming Machine size adjustable CE 1Light Steel Gauge Metal Stud And Track Roll Forming Machine size adjustable CE 2Light Steel Gauge Metal Stud And Track Roll Forming Machine size adjustable CE 3



Description:



Keel Roll Forming Machine Main parameter

No.

   Main parameter of Keel Roll Forming Machine

1

Suitable to process

Color steel plate

2

Width of the plate

210 mm

3

Rollers

13 rows

4

Dimensions

6600*1350*1510mm

5

Power

5.5+4kw

6

Rolling material

shaft bearing steel(quenching)

7

Thickness of the plate

0.8-1.2 mm

8

Productivity

20m/min

9

Diameter of the roller

Φ50mm

10

Voltage

380V 50Hz 3phases

11

Material of the cutting plate

Cr12

12

Hydraulic

40#

13

Processing precision

Within 1.00mm

14

Control system

PLC control

Equipment components: Man-made uncoiler-roll forming machine-computer control system-hydraulic control system-cutting

Main Features

1.Our machines can uses galvanized steel sheet, colored armor plate or aluminum plate as the material plate.

2. Controlling by computer, PLC display, operation is easy, running is steady and reliable,endurable,maintenance-free

3. We can make and design with kinds of roll forming machine according to customer's request.
