جزئیات محصول:
|
| Usage: | roof gutter | material: | PPGI GI |
|---|---|---|---|
| thickness: | 0.3-0.6mm | size: | 4'' |
| weight: | 2T | warranty: | 1 year |
| برجسته: | sheet forming machine,sheet metal rolling machine,sheet metal rolling machine |
||

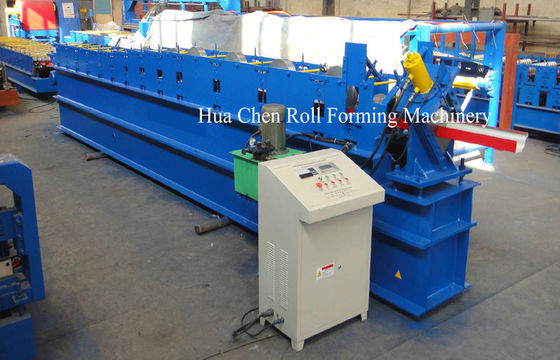

Most Popular color sheet steel metal Rain Gutter roof roll forming machine
1.machine adopt advanced technicall
2.high quality of the structure
3,one year warranty
4.more the 10 years experience
Quick Detail:
1. Suitable to process: Color steel plate
2. Width of the plate: 285mm
3. Rollers: 18 rows
4. Dimensions: 8.6*1.15*1.51m
5. Power: 3+3kw
6. Rolling material: 45# steel(plated chrome on surface)
7. Thickness of the plate:0.3-0.6mm
8. Voltage: 380V 50Hz 3phases
9. Material of the cutting plate: Cr12
10. Hydraulic: 40#
11. Processing precision: Within 1.00mm
12. Control system: PLC control
|
3T hydraulic decoiler
|
|
|
Coil weight (Max)
|
3000kg
|
|
Inter diameter of coil
|
420mm-510mm
|
|
Working by hydraulic pressure
|
8-12Mpa with connect with the decoiler hydraulic unit
|
|
Working lift journey
|
Maximal 250mm
|
|
Working function
|
forward and reverse movable
|
|
Move journey
|
maximal 2 meters
|
|
|

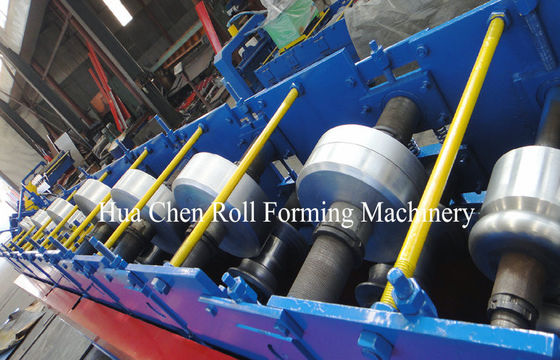

Forming Section
|
|
Roller material
|
ASTM1045 chrome plated surface with chrome,CNC,
|
|
Thickness range
|
0.3-0.8mm
|
|
Main motor power
|
5.5kw, AC motor, motor inside of main machine
|
|
Roll station
|
about 16 stations (according the final design)
|
|
Shaft diameter
|
￠65mm
|
|
Machine roll forming speed
|
not less than 12m/min
|
|
Transmission
|
by chain, one inch, Single line
|
|
Post cutting system
|
|
|
Material of blade
|
Cr12, 58-62 HRC hardness
|
|
Cutting power
|
hydraulic, 5.5KW
|
|
Working pressure
|
12Mpa adjustable
|
|
Length measuring
|
Automatic encoder length measuring
|
|
brand
|
Omron
|
|
Tolerance of length
|
+/- 1.5mm for each piece end product
|
|
The cutting sequence is also contained and controlled by the same PLC program
|
|
|
|
Hydraulic station
|
|
Hydraulic power
|
5.5kw
|
|
Working pressure
|
12Mp adjustable
|
|
Solenoid valve
|
1 groups
|
|
Hydraulic oil
|
46# hydraulic oil
|
|
Color
|
Blue (or base on customer request)
|
|
Quantity
|
1
|
|
Control desk
|
|
|
Programmable setting of profile length and quantity
|
|
|
Automatic stopping of the equipment after completion of the cutting programme will be provided.
|
|
|
language
|
English and Chinese
|
|
Voltage, Frequency, Phase
|
380 V, 50 Hz, 3Phase
|
|
Control panel
|
Button-type switch and touch screen
|
|
Unit of length
|
millimeter
|
|
PLC brand
|
Panasonic
|
Application
This product is widely used in many kinds of industrial factory, civilian buildings, and Roof board for attached part product. It has advantage of pretty appearance, durable using and so on.
Competitive Advantage
1. elegant appearance
2.high quality steel structure
3. One year free guarantee
4. lifelong maintain
5. Panasonic PLC
