Self Joint Roofing Sheet Roll Forming Machine 3 phases For 380 Voltage

Self Joint Roofing Sheet Roll Forming Machine 3 phases For 380 Voltage
Self Joint Roofing Sheet Roll Forming Machine 3 phases For 380 Voltage
Self Joint Roofing Sheet Roll Forming Machine 3 phases For 380 Voltage Self Joint Roofing Sheet Roll Forming Machine 3 phases For 380 Voltage Self Joint Roofing Sheet Roll Forming Machine 3 phases For 380 Voltage Self Joint Roofing Sheet Roll Forming Machine 3 phases For 380 Voltage

تصویر بزرگ :  Self Joint Roofing Sheet Roll Forming Machine 3 phases For 380 Voltage

جزئیات محصول:
محل منبع: Botou Hebei China
نام تجاری: HC
گواهی: ISO
شماره مدل: HC350
پرداخت:
مقدار حداقل تعداد سفارش: 1set
قیمت: 8000-29000USD
جزئیات بسته بندی: Main machine is nude,the computer control box is packed by carton box
زمان تحویل: 30days
شرایط پرداخت: 30% deposit by T/T in advance and 70% balance after inspection confirmation before shipment
قابلیت ارائه: 20 sets/month

Self Joint Roofing Sheet Roll Forming Machine 3 phases For 380 Voltage

شرح
برجسته:

roof tile roll forming machine,roof panel roll forming machine

,

roof panel roll forming machine

Self Joint Roofing Sheet Roll Forming Machine 3 phases For 380 Voltage





Roof Sheet Profile Machine, Tile Making Machine



1.Working Flow: Self Joint Roofing Sheet Roll Forming Machine Price For 380Voltagedouble sheet forming machine.jpg

Manual Uncoiler- Roll Forming Machine - Computer Control System - Hydraulic Control System - Cutting



Quick Detail: Self Joint Roofing Sheet Roll Forming Machine Price For 380Voltage



1. Suitable to process: Color steel plate

2. Width of the plate: 500mm

3. Rollers: 16 rows

4. Dimensions: 7.8*1.35*1.51m

5. Power: 3+3kw

6. Rolling material: 45# steel(plated chrome on surface)

7. Thickness of the plate:0.3-0.7mm

8. Voltage: 380V 50Hz 3phases

9. Material of the cutting plate: Cr12

10. Hydraulic: 40#

11. Processing precision: Within 1.00mm

12. Control system: PLC control



Description: Self Joint Roofing Sheet Roll Forming Machine Price For 380Voltage

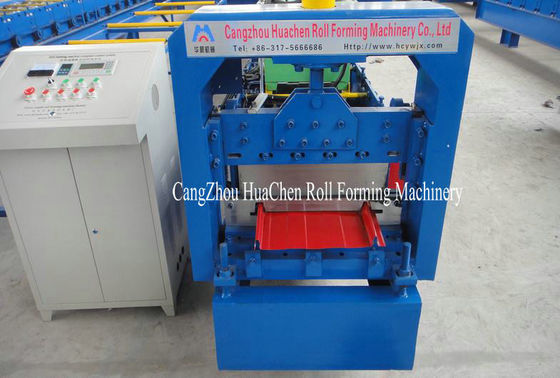

Self Joint Roofing Sheet Roll Forming Machine 3 phases For 380 Voltage 1

Roof Sheet Roll Forming Machine  Main parameter

No.

   Main parameter of Roof Sheet Roll Forming Machine

1

Suitable to process

Color steel plate

2

Width of the plate

500mm

3

Rollers

16 rows

4

Dimensions

7800*1350*1510mm

5

Power

3+3kw

6

Rolling material

45# steel(plated chrome on surface)

7

Thickness of the plate

0.3-0.6mm

8

Productivity

8-10m/min

9

Diameter of the roller

Φ66mm

10

Voltage

380V 50Hz 3phases

11

Material of the cutting plate

Cr12

12

Hydraulic

40#

13

Processing precision

Within 1.00mm

14

Control system

PLC control

Equipment components: Man-made uncoiler-roll forming machine-computer control system-hydraulic control system-cutting





Application

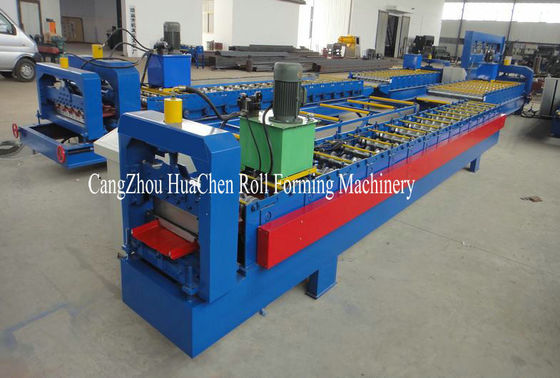

Self Joint Roofing Sheet Roll Forming Machine 3 phases For 380 Voltage 2

This type of sheet can be widely used in plant, house, storage and simple steel roof and wall. It has advantage of pretty appearance, durable using and so on.





Competitive Advantage



1. operations safety

2. nice appearance, high quality

3. reasonable price

4. CE certification

5. ISO certification
