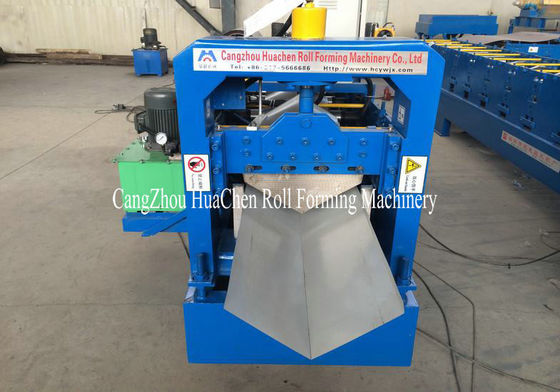

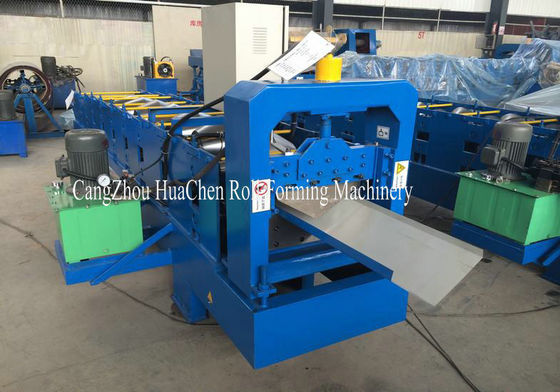

Warehouse Ridge Cap Roll Forming Machine steel plate with Vally Type
Quick Detail:Vally Type Ridge Cap Roll Forming Machine Used on Warehouse and Plant
1. Suitable to process: Color steel plate
2. Width of the plate: 400mm

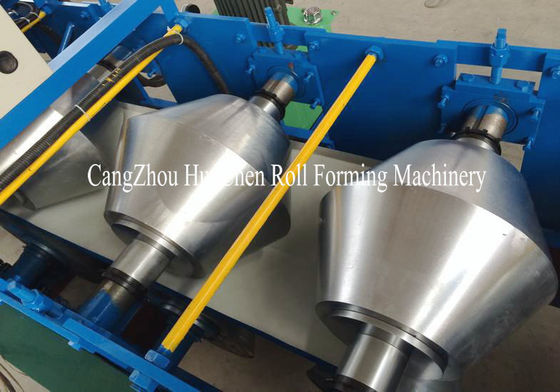

3. Rollers: 15 rows
4. Dimensions: 8.1*1.15*1.51m
5. Power: 3+3kw
6. Rolling material: 45# steel(plated chrome on surface)
7. Thickness of the plate:0.3-0.6mm
8. Voltage: 380V 50Hz 3phases
9. Material of the cutting plate: Cr12
10. Hydraulic: 40#
11. Processing precision: Within 1.00mm
12. Control system: PLC control
Description: Vally Type Ridge Cap Roll Forming Machine Used on Warehouse and Plant
Main parameter
|
No. |
Main parameter of Ridge Cap Roll Forming Machine |
|
|
1 |
Suitable to process |
Color steel plate |
|
2 |
Width of the plate |
400mm |
|
3 |
Rollers |
15rows |
|
4 |
Dimensions |
8100*1150*1510mm |
|
5 |
Power |
3+3kw |
|
6 |
Rolling material |
45# steel(plated chrome on surface) |
|
6 |
Thickness of the plate |
0.3-0.6mm |
|
7 |
Productivity |
4m/min |
|
8 |
Diameter of the roller |
Φ66 mm |
|
9 |
Voltage |
380V 50Hz 3phases |
|
10 |
Material of the cutting plate |
Cr12 |
|
11 |
Hydraulic |
40# |
|
12 |
Processing precision |
Within 1.00mm |
|
13 |
Control system |
PLC control |
Equipment components: Man-made uncoiler-roll forming machine-computer control system-hydraulic control system-press form-cutting
Application

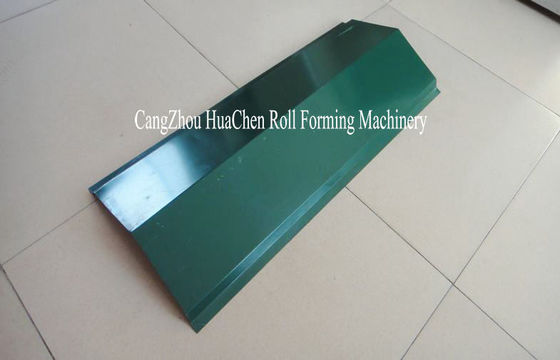

This product is widely used in many kinds of industrial factory, civilian buildings, and Roof board for attached part product. It has advantage of pretty appearance, durable using and so on.
Competitive Advantage
1. operations safety
2. nice appearance, high quality
3. reasonable price
4. CE certification
5. ISO certification
