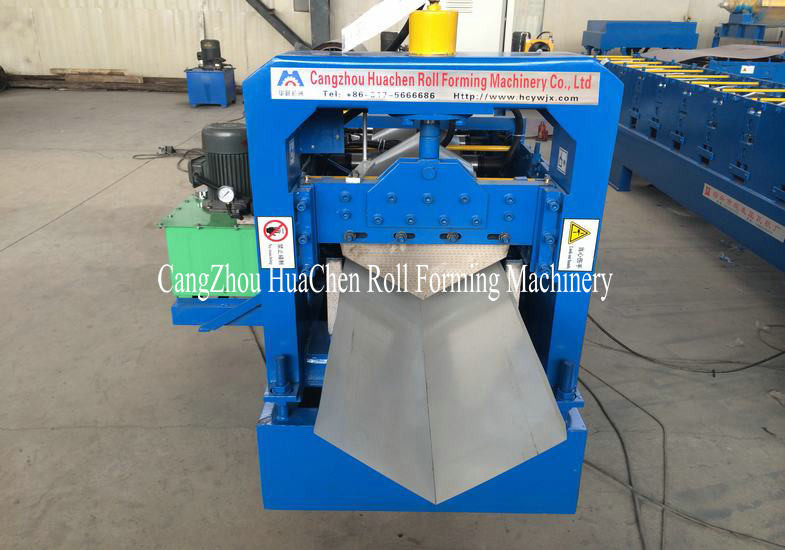

1 Years Warranty Ridge Cap Tile Forming Machine Touch Screen PLC Controller
Features of Metal Roof Panel Roll Forming Machine
1. This Metal Roof Panel Roll Forming Machine adopts PLC control, AC frequency and speed adjusting technology and it realizes the continuous automatically production.
2. The roof panel is roll formed by this roof panel roll forming machine, the surface of roof panel is very smooth and beautiful without any scratch.
3. The metal roof panel roll forming machine is with fully automatic PLC control system, the length, quantity of sheets is adjustable, very easy operation.
4. The main frame of this roof panel roll forming machine is structured by welding wall plate, and the stand of this roll forming machine are welded by H shape welding steel, which is highly maintain the rigidity and stability of the roll forming machine.
5. The forming rollers of roof panel forming machine is high grade 45# steel with hard chrome 0.05mm surface. And all the forming rollers are processed by CNC milling machine to guarante high accuracy.
6. The Cutting part is the last process of this roof panel forming machine line, it accurately custs sheet to any required length. The cutting part consistes of hydruic driver, profiled cutting blades and cutting frame. The blade adopt Cr12mov steel, cutter profile is same as the sheet profiles to cut the sheet profile in a good shape and no waste.
7. We also can do a custom roll forming machine, we can design roll forming machines according to clients specifications and profile drawings, all our machines are customized.
Reference Specifications of Metal Roof Roll Forming Machine
| Item | Roof Panel Roll Forming Machine | |
| Coil Material | Thickness | 0.3-0.8mm |
| Coil width | Custom-made, 1000mm or 1200mm or 1250mm | |
| Yield Strength | 250-350 Mpa | |
| Material | PPGI, Color Steel, GI. | |
| Decoiler / Uncoiler | Uncoiler Type | Manual or Hydraulic or Auto Type |
| Coil Width | Max. 1250mm | |
| I.D | 508-610mm | |
| O.D | Max. 1500mm | |
| Roof Panel Roll Forming Machine | Forming Stations | 11 Stations ( Depend on Profiles ) |
| Roller material | 45# steel, surface coated with 0.05mm hard chrome | |
| Diameter of shaft | 70mm | |
| Shaft material | High grade 45# steel | |
| Drive type | Chain transmission | |
| Forming speed | 0-15m/min | |
| Main power | 5.5KW | |
| Cutting Device | Cutting type | Hydraulic cutting |
| Cutting Die Material | Cr12Mov steel, HRC58-62 | |
| Cutting power | 3KW | |
| CuttingTolerance | 10m+/-1.5mm | |
| Encoder | OMRON Brand | |
| PLC Electrical Control System | PLC | PANASONIC Brand |
| Inverter | YASKAWA Brand | |
| Touch screen | PANASONICE | |
| Operation type | Touch screen & Button | |
| Hydraulic Station | Hydraulic station | Famous Chinese brand |
| Runout Tables | Table type | Simple nonpower type |
| Function | To support the finished panels | |
Main Components of Roof Panel Roll Forming Machine
| Decoiler / Uncoiler | 1 Unit |
| Feeding Guide | 1 Unit |
| Roof Panel Roll Forming Machine | 1 Unit |
| Hydraulic Cutting System | 1 Unit |
| Hydraulic Station | 1 Unit |
| PLC Computer Control Box | 1 Unit |
| Support Tables | 2 Units |

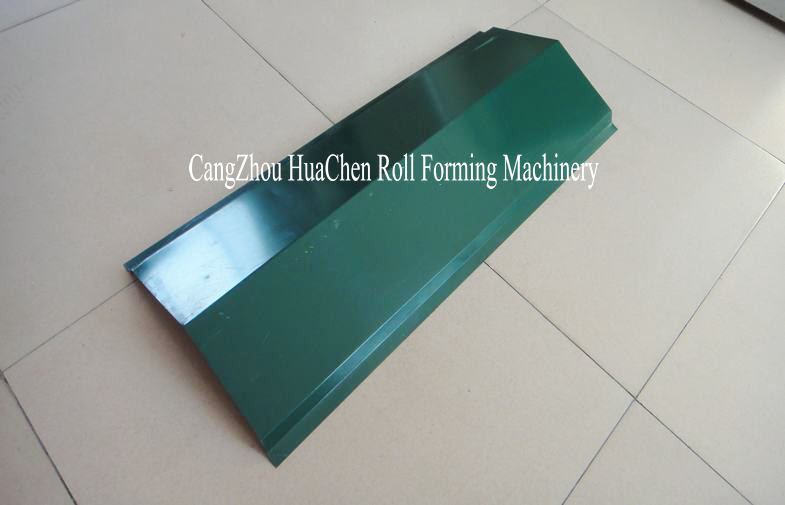

Reference Roof Panel Profiles
