جزئیات محصول:
|
| color: | blue | type: | Rain Gutter Forming Machine |
|---|---|---|---|
| control system: | PLC control | cutting method: | hydraulic cut |
| per month: | 30 sets | workers: | 100 |
| برجسته: | sheet forming machine,sheet metal rolling machine,sheet metal rolling machine |
||
Our Rain Gutter Forming Machine can produce various of steel roof and wall panel, it is a new building materials, the products are widely used as the roof and wall of factory, warehouse, garage, gymnasium, exhibition center, cinema, theatre, etc. It has many advantages, such as easy installation, short building period, beauty, light weight but high strength.
|
SPECIFICATIONS FOR Rain Gutter Forming Machine
|
|||
|
Main Roll Forming Machine
|
Roller station | 18 rows | |
| Material of roller | High grade 45# forged steel plated with hard chrome plating | ||
| Material of cutter | Cr12 mould steel with quenched treatment | ||
|
Material
|
Type | PPGI GI AL | |
| Material width | customized | ||
| Material thickness | 0.3-0.8mm | ||
|
Others
|
Speed | 20m/min | |
| PLC system | EURA or customized | ||
| Weight | 4..5T | ||
Rain Gutter Forming Machine Features
We do high standard roll forming machine for export about 10 years.
We have mature foreign trade team,senior engineers, experienced workers to make you satisfied.
We have machines at more than 90 cuntries and regions,and keep good business relationship.
we offer one year free warranty and free service for whole life of any machine.
|
Name: Rollers In order to get high quality product, our machine adopts welded steel frame structure, AC frequency conversion motor reducer drive, chain transmission, roller surfaces polishing, hard plating, heat treatment and chrome coating. Roller chrome coated thickness: 0.05 mm Roller material: Forging Steel 45# heat treatment |

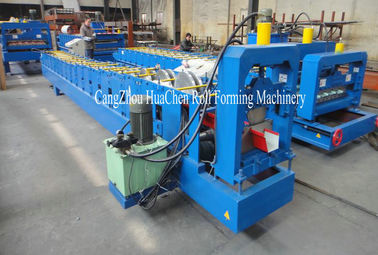

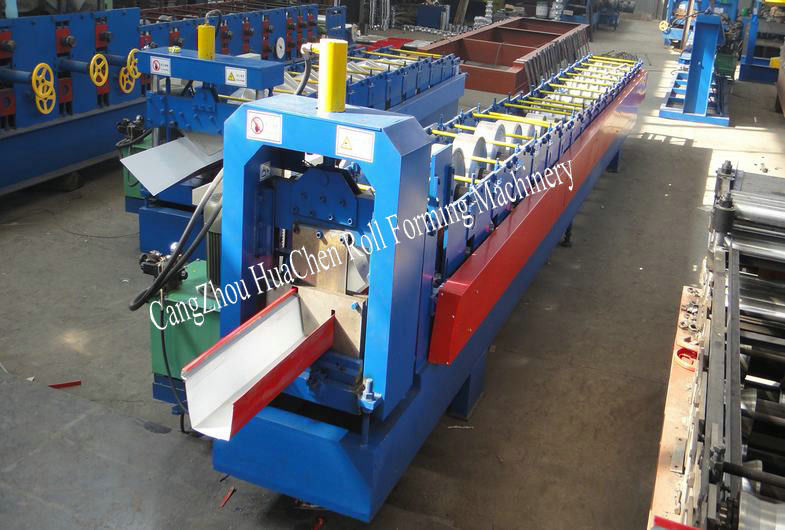

Main Roll FormerWe have experieced workers to design the rollers as customized profile drawing , and adopts welded steel frame sturcture, AC frequency conversion motor reducer drive, chain transmission , to get strong machine for good finish products .
|
|
|

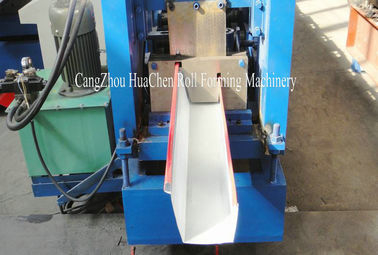

Hydraulic Cutting SystemIt adopts the hydraulic drive and automatic location to decide the dimension and cut the target products. |
Our Service
|
|
Pre-Sales Service* Inquiry and consulting support. |
After-Sales Service* Training how to instal the machine, training how to operate the machine. |
Packing & Delivery
|
Size: 7200 (L) * 1500 (W) * 1510 (H) Weight: 4.5T 1.Main Roll Forming Machine and un-coiler is nude packing (If you need, we can also packed it with water-proof plastic) 2. PLC control system and motor pump are packed with water proof paper,spare parts in carton box. 3.One set of machine needs a 40' container to shipping. |
