Galvanized New Type Ridge Cap Light Gauge Steel Roll Forming Machine with CE ISO

Galvanized New Type Ridge Cap Light Gauge Steel Roll Forming Machine with CE ISO
Galvanized New Type Ridge Cap Light Gauge Steel Roll Forming Machine with CE ISO Galvanized New Type Ridge Cap Light Gauge Steel Roll Forming Machine with CE ISO Galvanized New Type Ridge Cap Light Gauge Steel Roll Forming Machine with CE ISO Galvanized New Type Ridge Cap Light Gauge Steel Roll Forming Machine with CE ISO Galvanized New Type Ridge Cap Light Gauge Steel Roll Forming Machine with CE ISO

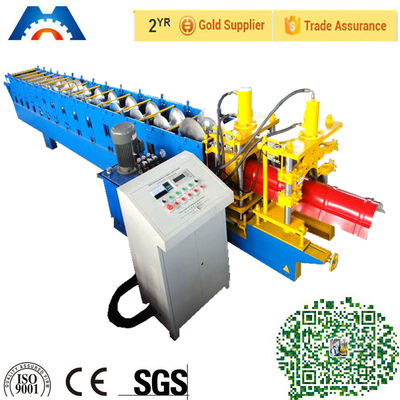

تصویر بزرگ :  Galvanized New Type Ridge Cap Light Gauge Steel Roll Forming Machine with CE ISO

جزئیات محصول:
محل منبع: Botou Hebei China
نام تجاری: HC
گواهی: ISO/CE
شماره مدل: HC280
پرداخت:
مقدار حداقل تعداد سفارش: 1set
قیمت: 13000-29000USD
جزئیات بسته بندی: Main machine is nude,the computer control box is packed by carton box
زمان تحویل: 30days
شرایط پرداخت: 30% deposit by T/T in advance and 70% balance after inspection confirmation before shipment
قابلیت ارائه: 20 sets/month

Galvanized New Type Ridge Cap Light Gauge Steel Roll Forming Machine with CE ISO

شرح
color: blue type: automatic
control system: PLC control cutting method: hydraulic cut
per month: 30 sets
برجسته:

metal forming machines,cold roll forming equipment

,

cold roll forming equipment



Galvanized New Type Ridge Cap Light Gauge Steel Roll Forming Machine





Total length of equipment

5.5m

(depend on design)



Width

0.85m

(depend on design)



height

1.2m

(depend on design)

Motor Power 3Kw+3Kw Operating Voltage 380V
Production speed 8 - 10 m / min
transfer method Chain drive
Machine forming shaft

A total of 10 rows of large shaft:

250H steel, vertical plate 12mm

Adjust the set Using 45 # steel seamless steel pipe finishing
Wheel material 45 # steel hard chrome plated
Shaft material 45 # steel shaft diameter: 65mm solid shaft



Forming part

Divided into Seiko wheel rotation molding, forming effect is good, reduce the wheel and the friction between the raw materials, debugging convenient, fast.
Numerical control system

PLC panel,

KEL-320 displa

counter The use of domestic photoelectric rotary encoder, A40S6-600-2-12-ACP
Cut 3Kw pumping station, shear pressure type equipment
Pressure plate thickness 0.3—0.8mm
Random attachments

The use of a manual,

a gift rack

warranty period 12 months





Description:



Main parameter

No.

   Main parameter of Ridge Cap Roll Forming Machine

1

Suitable to process

Color steel plate

2

Width of the plate

400mm

3

Rollers

15rows

4

Dimensions

8100*1350*1510mm

5

Power

3+3kw

6

Rolling material

45# steel(plated chrome on surface)

6

Thickness of the plate

0.3-0.6mm

7

Productivity

4m/min

8

Diameter of the roller

Φ66 mm

9

Voltage

380V 50Hz 3phases

10

Material of the cutting plate

Cr12

11

Hydraulic

40#

12

Processing precision

Within 1.00mm

13

Control system

PLC control

Equipment components: Man-made uncoiler-roll forming machine-computer control system-hydraulic control system-press form-cutting





Application



This product is widely used in many kinds of industrial factory, civilian buildings, and Roof board for attached part product. It has advantage of pretty appearance, durable using and so on.





Competitive Advantage



1. save space

2. easy install

3. perfect service

4. excellent quality

5. save freight

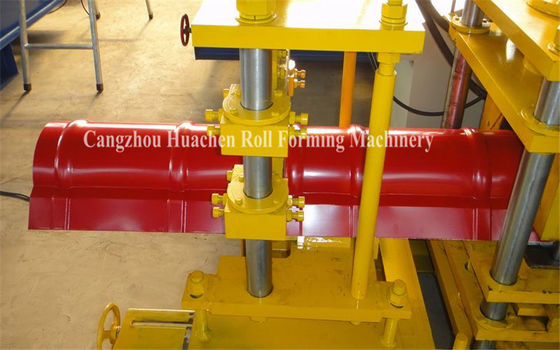

Galvanized New Type Ridge Cap Light Gauge Steel Roll Forming Machine with CE ISO 0

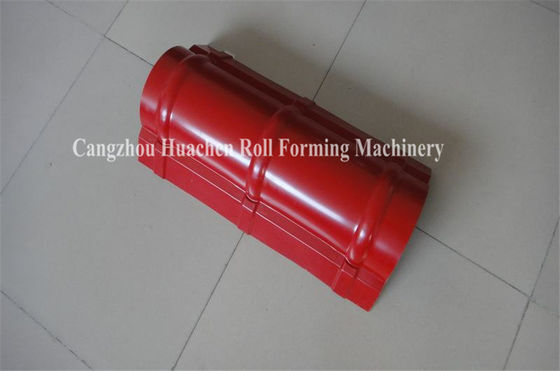

Galvanized New Type Ridge Cap Light Gauge Steel Roll Forming Machine with CE ISO 1

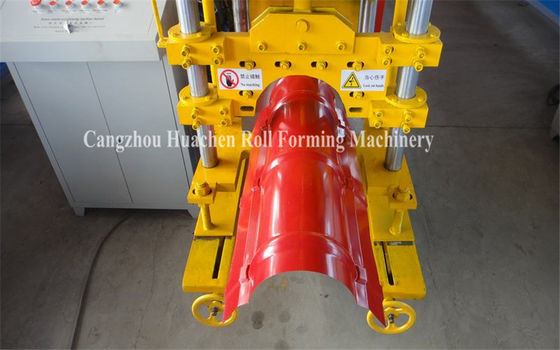

Galvanized New Type Ridge Cap Light Gauge Steel Roll Forming Machine with CE ISO 2

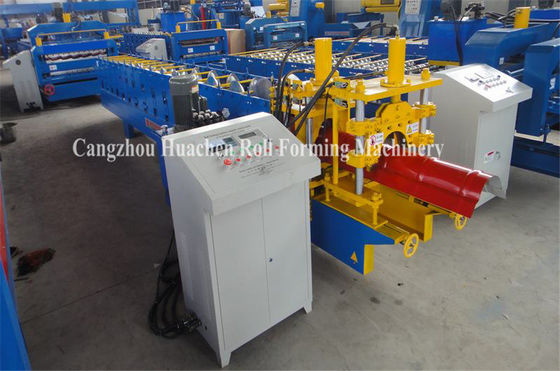

Galvanized New Type Ridge Cap Light Gauge Steel Roll Forming Machine with CE ISO 3
