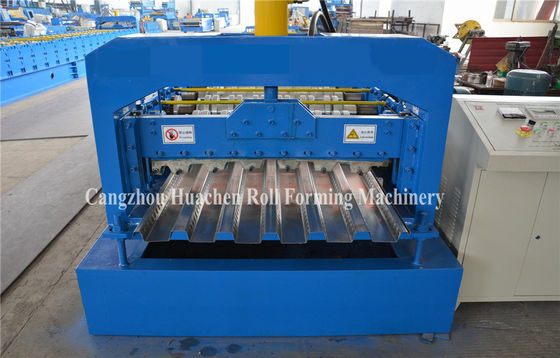

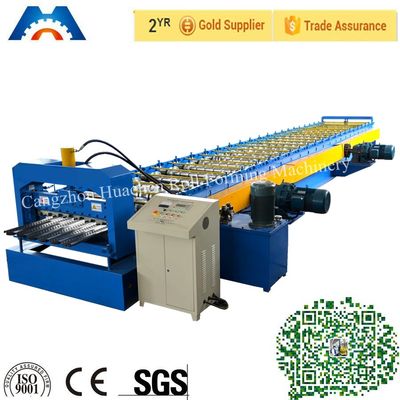

High Strength Steel Floor Deck Roll Forming Machine with 45 forge Steel

High Strength Steel Floor Deck Roll Forming Machine with 45 forge Steel
High Strength Steel Floor Deck Roll Forming Machine with 45 forge Steel High Strength Steel Floor Deck Roll Forming Machine with 45 forge Steel High Strength Steel Floor Deck Roll Forming Machine with 45 forge Steel High Strength Steel Floor Deck Roll Forming Machine with 45 forge Steel

تصویر بزرگ :  High Strength Steel Floor Deck Roll Forming Machine with 45 forge Steel

جزئیات محصول:
محل منبع: China
نام تجاری: HC
گواهی: ISO CE
شماره مدل: HC40
پرداخت:
مقدار حداقل تعداد سفارش: 1set
قیمت: USD25000-45000
جزئیات بسته بندی: 1.Main roll forming machine and un-coiler is nude packing (If you need, we can also packed it with water-proof plastic) 2. PLC control system and motor pump are packed with water proof paper,spare parts in carton box. 3.One set of machine needs a 40' con
زمان تحویل: 30 work days
شرایط پرداخت: D/A, Western Union, L/C, T/T
قابلیت ارائه: 20 sets per month

High Strength Steel Floor Deck Roll Forming Machine with 45 forge Steel

شرح
Material: PPGi GI capacity: 8-10m/min
machine weight: 22T rollers: 45# steel
Type: Roll Forming Machine warranty: 12 month
technical support: whole life
برجسته:

wall panel roll forming machine,rolling forming machine

,

rolling forming machine

Floor Deck Roll Forming Machine​ Application

Our Floor Deck Roll Forming Machine can produce various of steel roof and wall panel, it is a new building materials, the products are widely used as the roof and wall of factory, warehouse, garage, gymnasium, exhibition center, cinema, theatre, etc. It has many advantages, such as easy installation, short building period, beauty, light weight but high strength.

SPECIFICATIONS FOR Floor Deck Roll Forming Machine

Main Roll Forming Machine
Roller station
22 rows
Material of roller
High grade 45# forged steel plated with hard chrome plating
Material of cutter
Cr12 mould steel with quenched treatment

Material
Type
PPGI GI AL
Material width
customized
Material thickness
1.2mm

Others
Speed
8-10m/min
PLC system
EURA or customized
Weight
22T


High Strength Steel Floor Deck Roll Forming Machine with 45 forge Steel 0High Strength Steel Floor Deck Roll Forming Machine with 45 forge Steel 1     High Strength Steel Floor Deck Roll Forming Machine with 45 forge Steel 2

Floor Deck Roll Forming Machine Features

We do high standard roll forming machine for export about 10 years.
We have mature foreign trade team,senior engineers, experienced workers to make you satisfied.
We have machines at more than 90 cuntries and regions,and keep good business relationship.
we offer one year free warranty and free service for whole life of any machine.



Certifications
High Strength Steel Floor Deck Roll Forming Machine with 45 forge Steel 3High Strength Steel Floor Deck Roll Forming Machine with 45 forge Steel 4High Strength Steel Floor Deck Roll Forming Machine with 45 forge Steel 5

Floor Deck Roll Forming Machine​ Parts

Detailed Images

High Strength Steel Floor Deck Roll Forming Machine with 45 forge Steel 6

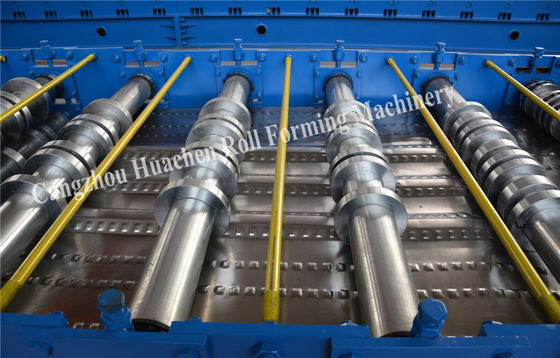

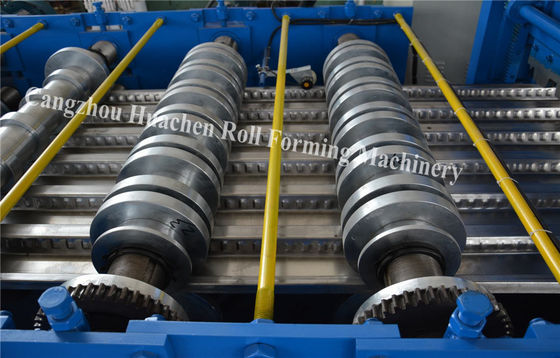

Name: Rollers
In order to get high quality product, our machine adopts welded steel frame structure, AC frequency conversion motor reducer drive, chain transmission, roller surfaces polishing, hard plating, heat treatment and chrome coating.
Roller chrome coated thickness: 0.05 mm
Roller material: Forging Steel 45# heat treatment



Main Roll Former

We have experieced workers to design the rollers as customized profile drawing , and adopts welded steel frame sturcture, AC frequency conversion motor reducer drive, chain transmission , to get strong machine for good finish products .



High Strength Steel Floor Deck Roll Forming Machine with 45 forge Steel 7
High Strength Steel Floor Deck Roll Forming Machine with 45 forge Steel 8 PLC control system

Brand : EURA or Customized
EURA PLC is adopted to organize all actions of the machine. The length of workpiece is adjustable according to the setting of on the PLC.  In order to make the machine has a long service life and easy maintenance; we only adopt globally famous electrical components. And by our special designed program, the HIM (Human Machine Interface) is very easy to be adopted by any level of operators.

Hydraulic Cutting System

It adopts the hydraulic drive and automatic location to decide the dimension and cut the target products.
Material of blades: Cr12,quenching treatment

High Strength Steel Floor Deck Roll Forming Machine with 45 forge Steel 9



Our Service



High Strength Steel Floor Deck Roll Forming Machine with 45 forge Steel 10High Strength Steel Floor Deck Roll Forming Machine with 45 forge Steel 11

Pre-Sales Service

* Inquiry and consulting support.
* Sample testing support.
* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to operate the machine.
* Engineers available to service machinery overseas.


Packing & Delivery

High Strength Steel Floor Deck Roll Forming Machine with 45 forge Steel 12

Size: 11200 (L) * 1850 (W) * 1510 (H)
Weight: 22T
1.Main Roll Forming Machine and un-coiler is nude packing (If you need, we can also packed it with water-proof plastic)
2. PLC control system and motor pump are packed with water proof paper,spare parts in carton box.
3.One set of machine needs a 40' container to shipping.


High Strength Steel Floor Deck Roll Forming Machine with 45 forge Steel 13 High Strength Steel Floor Deck Roll Forming Machine with 45 forge Steel 14 High Strength Steel Floor Deck Roll Forming Machine with 45 forge Steel 15
