جزئیات محصول:
|

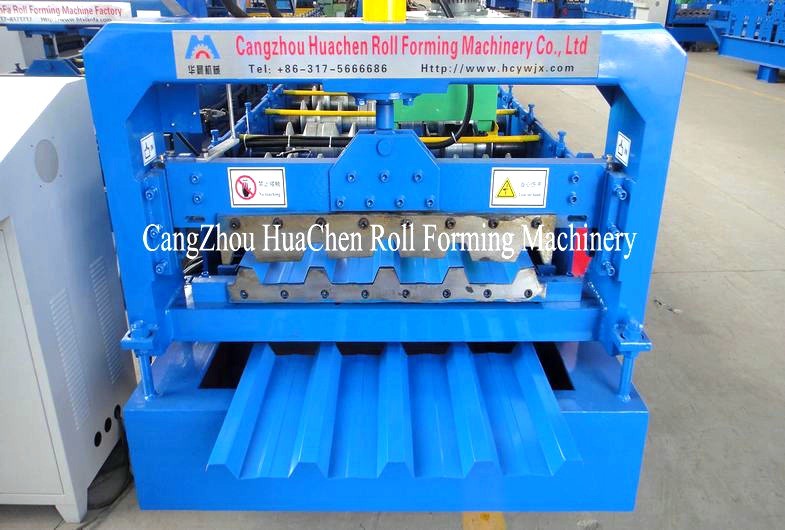

| type: | Standard 686mm IBR Sheet Roll Forming Machine | rollers: | 16 |
|---|---|---|---|
| roller material: | No.45 steel | warranty: | 12 month |
| برجسته: | roof tile roll forming machine,roof panel roll forming machine,roof panel roll forming machine |
||
1) wall & roof forming machine
2) step tile. Ridge cap roll forming machine
3) EPS/PU sandwich panel line
4) C&Z purlin machine
5) metal decking forming machine
6) shutter door roll forming machine
7) rain spout forming machine
8) slitting line
9) cut to length line
10) guardrail roll forming machine
The roofing panel machines can produce various of steel roof and wall panel, it is a new building materials,the products are widely used as the roof and wall of factory, warehouse, garage, gymnasium,exhibition center, cinema, theatre, etc. It has many advantages, such as easy installation, short buildi-ng period , beauty, light weight but high strength.
Technical parameter
| Suitable material | color steel sheet;0.3-07mm, |
| Working speed | about10-25m/min |
| stress | 235MPa,345MPa,550MPa. |
| Power | Main motor power: 5.5 Kw(Depend on final design) |
| Hydraulic station power: 4Kw(Depend on final design) | |
| Material of forming rollers | No.45 steel, plated with chrome on surface. |
| Material of cutter,pressing die | Cr12 mould steel with quench treatment, HRC58-60 |
| Material of shaft | High quality 45# steel, Roller grinder milling. |
| Shaft diameter | 72mm |
| Controlling system | Mitsubishi PLC & converter |
| Total weight of machine | About 9500KGS |
| Machine’s size | about 18m×1.8m× 1.5m (Depend on final design) |
Layout drawing of machine
