5.5Kw Metal Roofing Sheet Roll Forming Machine Electric Control Standing Seam

5.5Kw Metal Roofing Sheet Roll Forming Machine Electric Control Standing Seam
5.5Kw Metal Roofing Sheet Roll Forming Machine Electric Control Standing Seam
5.5Kw Metal Roofing Sheet Roll Forming Machine Electric Control Standing Seam 5.5Kw Metal Roofing Sheet Roll Forming Machine Electric Control Standing Seam

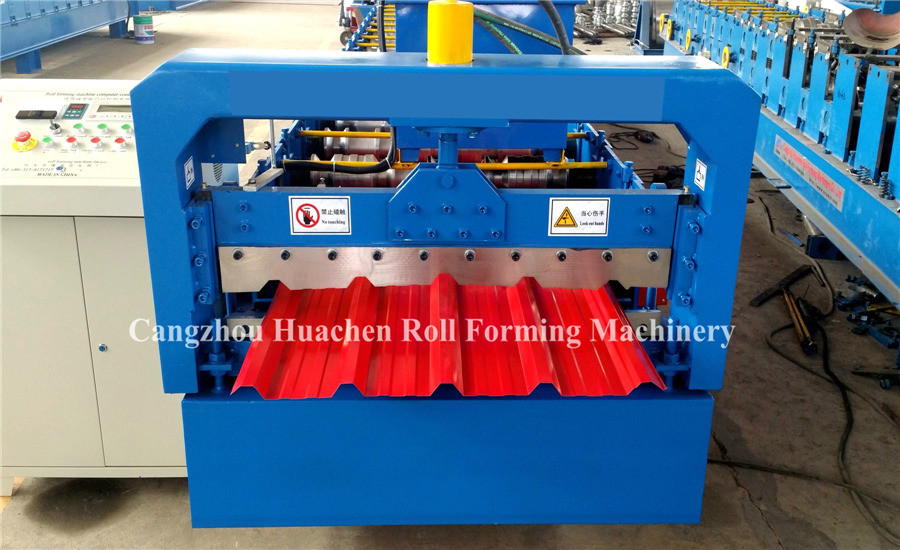

تصویر بزرگ :  5.5Kw Metal Roofing Sheet Roll Forming Machine Electric Control Standing Seam

جزئیات محصول:
محل منبع: Botou Hebei China
نام تجاری: HC
گواهی: ISO
شماره مدل: HC25
پرداخت:
مقدار حداقل تعداد سفارش: 1set
قیمت: 8000-29000USD
جزئیات بسته بندی: Main machine is nude,the computer control box is packed by carton box
زمان تحویل: 30days
شرایط پرداخت: 30% deposit by T/T in advance and 70% balance after inspection confirmation before shipment
قابلیت ارائه: 20 sets/month

5.5Kw Metal Roofing Sheet Roll Forming Machine Electric Control Standing Seam

شرح
type: Electric Control Standing Seam Metal Roof Machine rollers: 19
roller material: No.45 steel warranty: 12 month
برجسته:

roof tile roll forming machine,cold roll forming machine

,

cold roll forming machine


Electric Control Standing Seam Metal Roof Machine Application

Sumarry of Steel Roof Roll Forming Machine



  • Model: HC25 roof profile
  • Material thickness: 0.3-0.8mm
  • Material width: depend on customer’s requirement
  • Decoiler Type: manual or automatical type ( depend on customer’s requirement )
  • Weight Capacity Of Decoiler: 5 Ton
  • Main Motor Power: 5.5 Kw
  • Hydraulic Motor Power: 3 Kw
  • Working Speed: 0-15 m/min
  • Transporting Type: Chain Drive type
  • Heat Treatment of Cutting Blade: HRC 50-60
  • Type of Cutting: Hydraulic cutting
  • Material Of Cutting Blade: CR12mov
  • Heat Treatment of Cutting Blade: HRC 50-60
  • Machine Frame stand: Welded structural steel
  • Thickmess of Fame Steel: 18mm
  • Forming Station: 19 ( depend on profile drawing )
  • Material of Roller: High grade 45# forge steel, Polished and coated with 0.05mm Chrome Surface.
  • Main Axis Material: High grade 45#, quenched and heat treatment.
  • Axis Diameter: ¢ 76mm
  • Electrical Control: PLC Frequency Control System with touch screen
  • PLC: PANASONIC Brand
  • Encoder: OMRON Brand
  • Transducer: PANASONIC Brand
  • Machine Weight: about 5 Ton



Components of Roof Roll Forming Machine





Decoiler / Uncoiler 1 Unit
Feeding Guide 1 Unit
Roof Roll Forming Machine 1 Unit
Hydraulic Cutting Part 1 Unit
Hydraulic Station 1 Unit
PLC Computer Control Box 1 Unit
Support Tables 2 Units



Feature of Steel Roof Roll Forming Machine



  • This Roof Profile Roll Forming Machine can rollfor roofing panel sheet. After roll formed by this roof roll forming machine, the surface of steel iron metal roof sheet panel is very smooth and beautiful without any scratch on the surface of profile sheets.
  • The Roof Sheeting Roll Forming Machine is with fully automatic control system with PLC.
  • Length, quantity of sheets is adjustable.
  • Rollforming process: Decoiler, Rollforming, Cut to length.
  • Easy operation: Key in the length and quantity on the control panel.
  • 1 Year warranty, lifelong time service.
  • We also can do a custom roll forming machine, we can design machines according to your specifications and profile drawings, all our machines are customized.

5.5Kw Metal Roofing Sheet Roll Forming Machine Electric Control Standing Seam 05.5Kw Metal Roofing Sheet Roll Forming Machine Electric Control Standing Seam 15.5Kw Metal Roofing Sheet Roll Forming Machine Electric Control Standing Seam 2
