16 Rollers Wall Pane Cold Roll Forming Machine For Steel , 0.3-0.6mm Thickness

چین 16 Rollers Wall Pane Cold Roll Forming Machine For Steel , 0.3-0.6mm Thickness تامین کننده

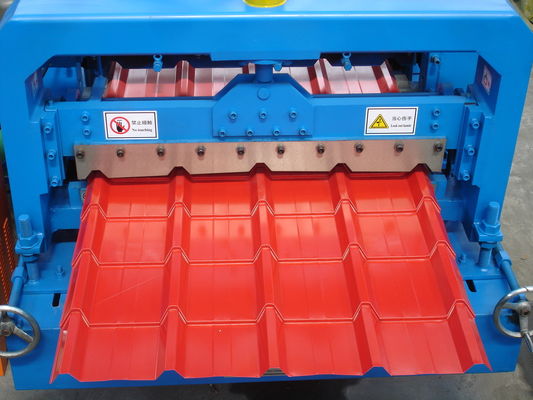

تصویر بزرگ :  16 Rollers Wall Pane Cold Roll Forming Machine For Steel , 0.3-0.6mm Thickness

جزئیات محصول:

Place of Origin: Botou Hebei China
نام تجاری: HC
گواهی: ISO/CE
Model Number: HC24

پرداخت:

Minimum Order Quantity: 1set
قیمت: 12000-29000USD
Packaging Details: Main machine is nude,the computer control box is packed by carton box
Delivery Time: 30days
Payment Terms: 30% deposit by T/T in advance and 70% balance after inspection confirmation before shipment
Supply Ability: 20 sets/month
Contact Now
توضیحات محصول جزئیات
Tile Type: Steel Power(W): 5.5kw
Voltage: 380V Weight: 4.5T
control: PLC computer control

16 Rollers Wall Pane Cold Roll Forming Machine For Steel , 0.3-0.6mm Thickness



1.Main Accessories:

1 Decoiler(manual or hydraulic for options) 1 set
2 Feeding device 1 set
3 Main Forming Machine 1 set
4 Hydraulic step press device 1 set
5 Hydraulic cutting device 1 set
6 Hydraulic Station 1 set
7 PLC computer control system 1 set
8 2m Run Out Table(auto stacker for options) 2 sets



2.Main Technicial Parameter:

1 Inner diameter of manual decoiler 500mm
2 Outer diameter of manual decoiler 1200mm
3 Weight capacity of manual decoiler 5T
4 Appearance Size 10000mm*1350mm*1510mm
5 Raw Material colored steel or galvanized steel
6 Roller material high grade 45# forged steel,polished,heated,quenched
7 Blade Material CR12 with polished,heated and quenched HRC60-62
8 Chrome Coating coated with 0.05mm hard chrome
9 Control System PLC control
10 Main Motor Power 5.5 KW
11 Hydraulic Power 4 KW
12 Roller station 16 rollers
13 Material of chain high grade 45# steel:polished,heated,quenched HRC 45-50
14 Speed of Product 3-4m/min
15 Thickness range 0.3-0.6mm
16 Type of cutting hydraulic cutting
17 Coil Width 914mm(max1250mm,or as your requirement)
18 Cover Width 800mm(or as your requirement)
19 Material of rack complete welded structure of A3 steel plate
20 Machine frame stand welded with 36# I-steel
21 Type of forming machine single station with chain transmission
22 Thickness of frame 18mm
23 Shaft Diameter 80mm
24 Weight about 8T
25 Voltage 380V 50HZ 3Phases( or as your local requirement)
26 Electrical control PLC frequency control system with touch screen in English



3. Work flowing:

Decoiling -- Feeding guide -- Roll forming -- Press step -- Hydraulic cutting -- Running out





4. Payment Term and Condition:

1 Payment Term 30% T/T in advance, 70% T/T before shipment
2 Delivery Time Within 45 Working Days after receipt of the down payment
3 Warranty 1 year and life-long maintenance
4 Installation and commissioning Our engineer will go to make installation there,buyer pay our engineer 100USD/day,and provide accommodation,visa and the round-trip ticket fee



5. Use:

1 It is widely used in load bearing roof and buttree of large and medium-size industrial and civilian buildings
2 Like factory,workshop,garage, warehouse, locomotive shed, hanger, exhibition building, cinema, theatre, stadium, garden etc
3 They are widely used as the supporter of roof and wall in large-scale and mid-scale construction



16 Rollers Wall Pane Cold Roll Forming Machine For Steel , 0.3-0.6mm Thickness16 Rollers Wall Pane Cold Roll Forming Machine For Steel , 0.3-0.6mm Thickness16 Rollers Wall Pane Cold Roll Forming Machine For Steel , 0.3-0.6mm Thickness
