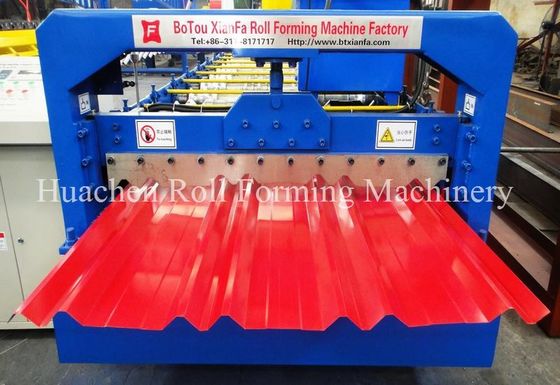

Fast Speed Color Steel Roof Sheet Roll Forming Machine With High Capacity

Fast Speed Color Steel Roof Sheet Roll Forming Machine With High Capacity
Fast Speed Color Steel Roof Sheet Roll Forming Machine With High Capacity
Fast Speed Color Steel Roof Sheet Roll Forming Machine With High Capacity Fast Speed Color Steel Roof Sheet Roll Forming Machine With High Capacity Fast Speed Color Steel Roof Sheet Roll Forming Machine With High Capacity Fast Speed Color Steel Roof Sheet Roll Forming Machine With High Capacity Fast Speed Color Steel Roof Sheet Roll Forming Machine With High Capacity

تصویر بزرگ :  Fast Speed Color Steel Roof Sheet Roll Forming Machine With High Capacity

جزئیات محصول:
محل منبع: China
نام تجاری: HC
گواهی: ISO CE
شماره مدل: HC23
پرداخت:
مقدار حداقل تعداد سفارش: 1set
قیمت: USD8000-15000
جزئیات بسته بندی: 1.Main roll forming machine and un-coiler is nude packing (If you need, we can also packed it with water-proof plastic) 2. PLC control system and motor pump are packed with water proof paper,spare parts in carton box. 3.One set of machine needs a 40' con
زمان تحویل: 30 work days
شرایط پرداخت: D/A, Western Union, L/C, T/T
قابلیت ارائه: 20 sets per month

Fast Speed Color Steel Roof Sheet Roll Forming Machine With High Capacity

شرح
Material: PPGi GI capacity: 20m/min
machine weight: 4.5T rollers: 45# steel
Type: Roof Sheet Roll Forming Machine cutting blade: Cr12
برجسته:

roof tile roll forming machine,roof panel roll forming machine

,

roof panel roll forming machine

FAQ

FAQ



1. Do you have overseas engineers?
Yes, we not only provide overseas engineers, but also provide technical training.



2. What`s the machines` production rate?
Between 8-20m/min by control.



3. Do you provide customized?
Sure,we can design the equipment according to the data of the structural section you provide.

We are professional sheet metal forming machine designer and manufacturer.

Double color steel tile machine specification:







1. Number of forming groups: 13 group







2. The machine material: welding comprise of 300 double T-steel







3. The wallboard: processing compose of 20mm steel plate

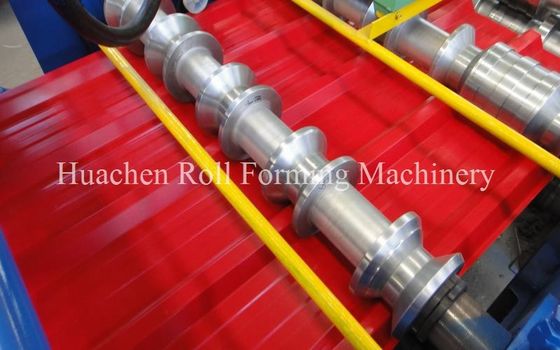

4. The mold: The mold is made of 45#steel, processed after rough turning, finish turning, finish grinding, hard chrome



plating to ensure that the mold no deformation, glabrous, wearable and accurate.







5. The shaft: The shaft is made of 45#steel, diameter of 62mm, finish turning, finish grinding after heat treatment,



quenching and high temperature tempering.







6. The bearing: Harbin type 6208

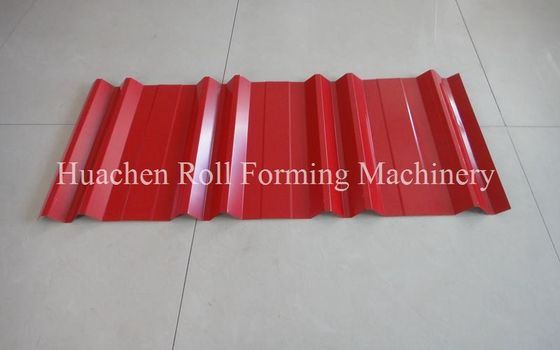

7. The roll material: 0.3-0.5mm color steel sheet, galvanized steel sheet, aluminium sheet, expansion material 1000mm,



ejection of compact effective area is 840, 900. Model: 840/900 or customized.







8. Motor:4kw * 1sets (380v)







9. Transmission: 1.0 inch chain







10. Discharge rack: 1 set

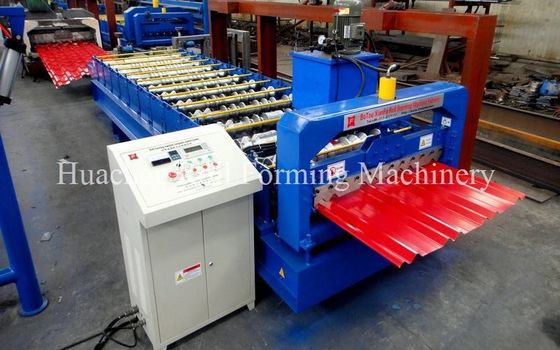

11. Machine feature: PLC NC frequency electrical boxes, touch screen`s display, the encoder counting,



the length and quantity of the material is controllable, accuracy with in 1.0mm, automatic hydraulic cut.







12. Machine Length: 5.6m * 1.5 m * 1.5 m







13. Machine Weight: 2.8tons







14. Production time: 20 days







15. One year warranty







Fast Speed Color Steel Roof Sheet Roll Forming Machine With High Capacity 0Fast Speed Color Steel Roof Sheet Roll Forming Machine With High Capacity 1
