جزئیات محصول:
|
| Voltage: | 380V 50HZ 3 Phase | Material: | galvanized/color steel sheet |
|---|---|---|---|
| Shaft: | 75mm, solid | ||
| برجسته: | sheet metal rolling machine,metal roll forming machines,metal roll forming machines |
||

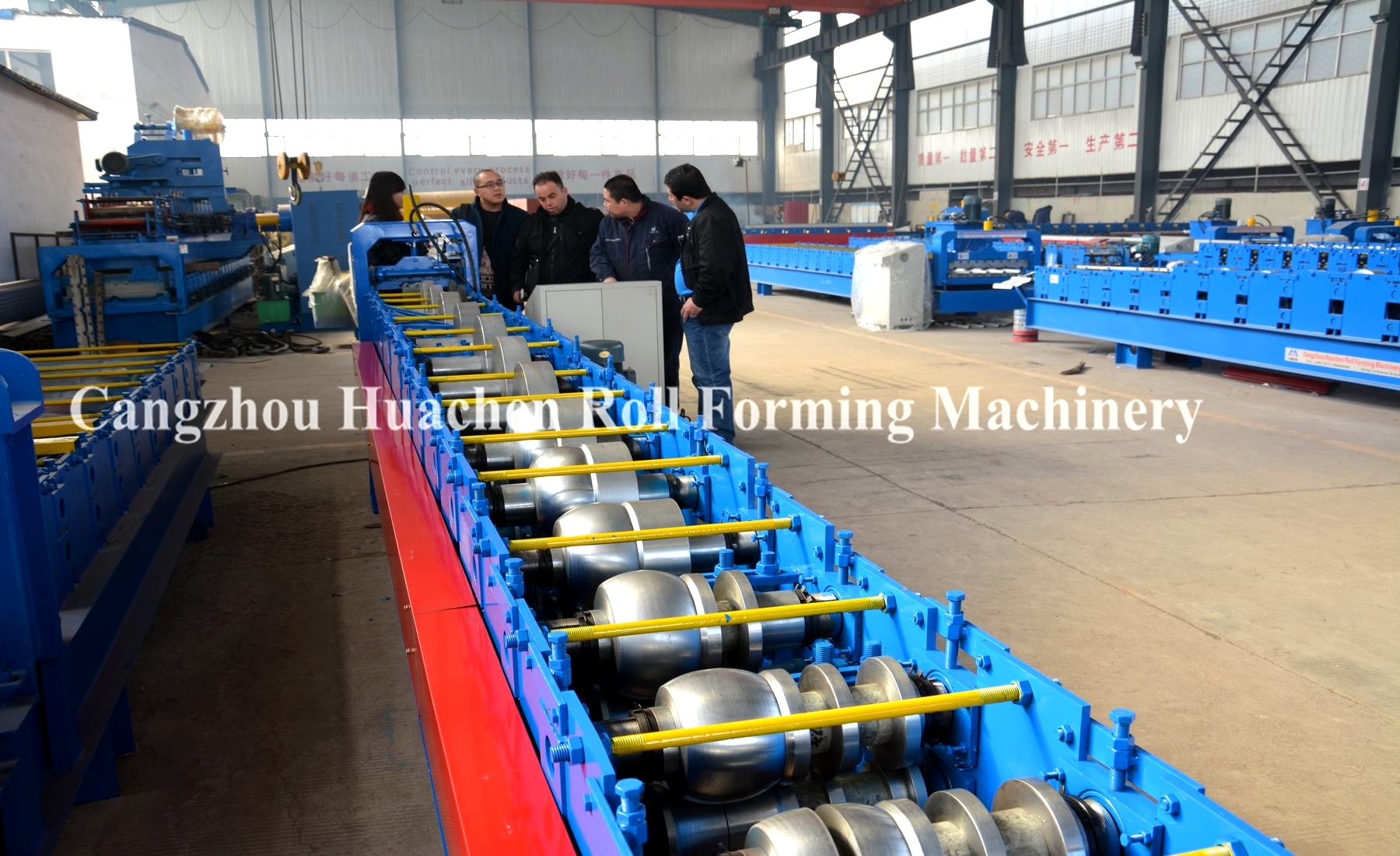

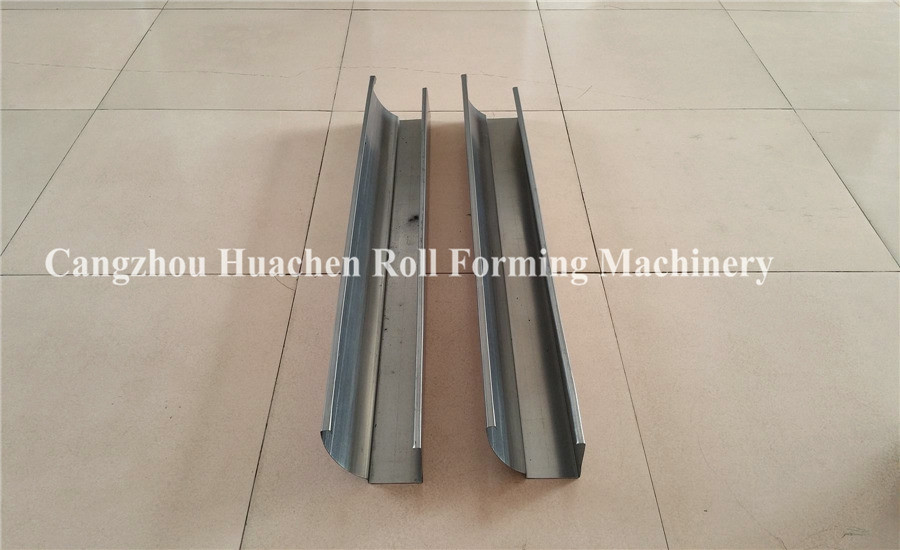

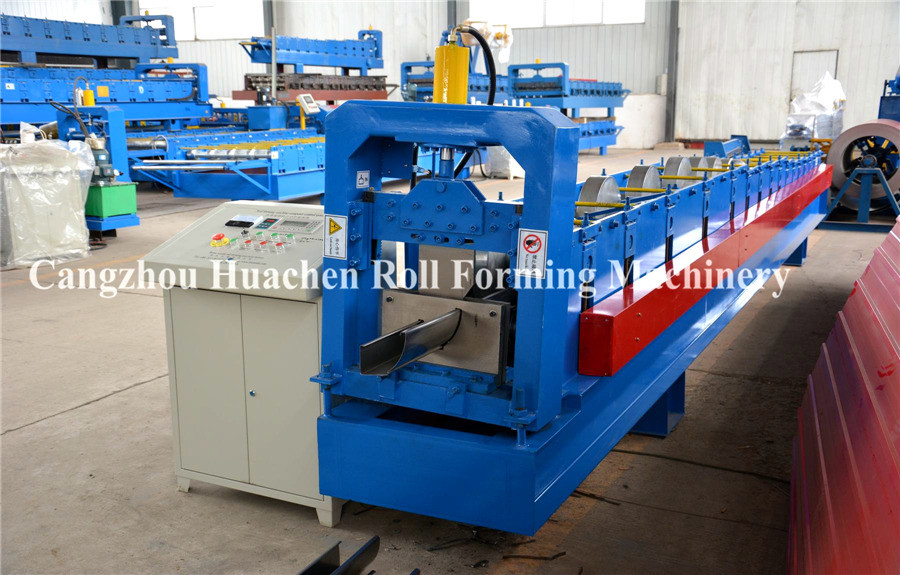

Half round waterdown gutter cold rolled forming machine
| No. | new type corrugated sheets roll forming machine | |
| 1 | Suitable material | PPGI/Aluminium sheet/galvanized sheet/various sheet plates |
| 2 | Thickness of coil sheet | 0.3-0.6mm |
| 3 | Coil width | 300mm |
| 4 | Cover width | 125mm |
| 5 | Material of main frame | H beam seamless welded |
| 6 | Diameter of Soild shaft | mm, high grade 45# steel |
| 7 | Roller |
Quenched and tempered treatment, hard chrome coated.05-0.07mm |
| 8 | Thickness of middle plate | 16-18mm |
| 9 | Forming station | 12-15 stations |
| 10 | Drive type | By chain(1.0 inch) link bearing model 6210 |
| 11 | Power of main motor | 4.0-5.5kw with Cycloidal reducer |
| 12 | Power of pump station | 4kw |
| 13 | Forming speed | About 12-16m/min |
| 14 | Hydraulic cutting | Controlled by PLC |
| 15 | PLC | DELTA(TAIWAN)/Mitsubishi |
| 16 | Material of razor blades | Cr 12, quenching 58-62℃ |
| 17 | Frequency converter |
It has the advantage of slowing down before cutting, to ensure the length accuracy(±1mm, far better than industrial standard ±3mm). |
| 18 | Switch | CHNT |
| 19 | Transducer | SAJ |
Q1. What's your delivery time?
A1:Depending on the type of machine, duration of 1.25 days to 60 days from the date of order.
Q2. Do you have after-sales support?
A2:Yes, we are happy to give advice and we also have skilled technicians available across the world.We need your machines running in order to keep your business running.
Q3. Do you sell only standard machines?
A3:No, most of our machines are built according to customers specifications,using top brand components.
Q4. What will you do if the machine is broken?
A4:Our machine's warranty period is 12months,if the broken parts can't repair,we can send the new parts replace the broken parts freely,but you need pay the express cost yourself.If it is beyond the warranty period,we can negotiate to solve the problem,and we supply the technical support for the whole life of the equipment.
Q5. Can you be responsible for transport?
A5:Yes,please tell me the destination port or address.we have rich experience in transporting.
Q6. How to visit your company?
A6: 1) Fly to Beijing airport, By high speed train From Beijing Nan to Cangzhou Xi (1 hour).
2) Fly to Shanghai Airport: By high speed train From Shanghai Hongqiao to Cangzhou Xi(4.5 hours), then we can pick up you.
