Steel Plate Make Ridge Cap tile Machine Ridge Cap Cold Roll forming Machine

اطلاعات پایه
Place of Origin: Botou Hebei China
نام تجاری: HC
گواهی: ISO
Model Number: HC457
Minimum Order Quantity: 1set
قیمت: 14000USD
Packaging Details: Main machine is nude,the computer control box is packed by carton box
Delivery Time: 30days
Payment Terms: 30% deposit by T/T in advance and 70% balance after inspection confirmation before shipment
Supply Ability: 20 sets/month
اطلاعات تکمیلی
Usage: Ridge cap Type: cold roll forming
Thickness: 0.3-0.6mm speed: 2m/min
length: 8M Warranty: 1 year
برجسته:

metal forming machines

,

cold roll forming equipment


توضیحات محصول

Steel Plate Make Ridge Cap tile Machine Ridge Cap Cold Roll forming Machine

Composition of machine:

1. 3T manual decoiler
2. Feeding →roll forming→pressing→t post cutting
3. Output table
4. Control desk
5. Hydraulic station
6. Spare part list

Profile, layout & production flow:

Profile thickness between 0.4mm and 0.7mm
Effective width: base on profile 406mm (final is base on testing result)
Following profile in only for customer reference, the exactly can be provide by customer
This machine adopt post-cutting.
Length tolerance: ±1.5mm per each pieces

Steel Plate Make Ridge Cap tile Machine Ridge Cap Cold Roll forming Machine 0

Layout of machine(only for reference, the exactly one will be send to customer in 20 days after confirmed order)

Working direction base on customer request:

Steel Plate Make Ridge Cap tile Machine Ridge Cap Cold Roll forming Machine 1

The production flow of equipment:

Decoiler→ feeding→roll forming→pressing→post cutting →output table



Description:



Ridge Cap Roll Forming Machine Main parameter

No.

   Main parameter of Ridge Cap Roll Forming Machine

1

Suitable to process

Color steel plate

2

Width of the plate

457mm

3

Rollers

12rows

4

Dimensions

7100*1150*1510mm

5

Power

3+3kw

6

Rolling material

45# steel(plated chrome on surface)

6

Thickness of the plate

0.3-0.6mm

7

Productivity

4m/min

8

Diameter of the roller

Φ66 mm

9

Voltage

380V 50Hz 3phases

10

Material of the cutting plate

Cr12

11

Hydraulic

40#

12

Processing precision

Within 1.00mm

13

Control system

PLC control

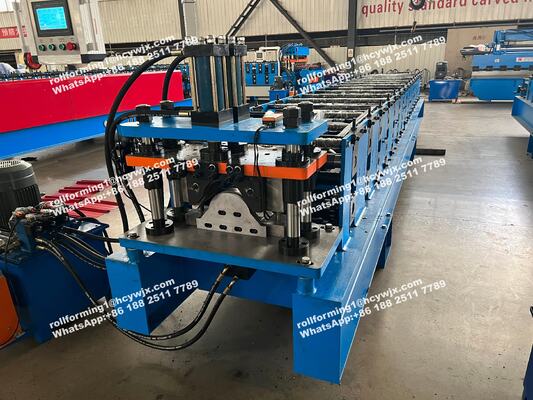

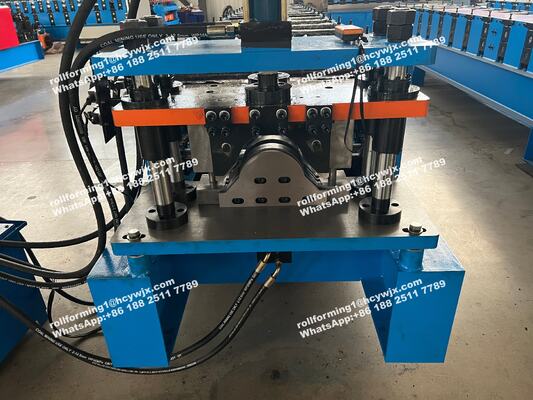

Equipment components: Man-made uncoiler-roll forming machine-computer control system-hydraulic control system-press form-cutting

Steel Plate Make Ridge Cap tile Machine Ridge Cap Cold Roll forming Machine 2Steel Plate Make Ridge Cap tile Machine Ridge Cap Cold Roll forming Machine 3Steel Plate Make Ridge Cap tile Machine Ridge Cap Cold Roll forming Machine 4Steel Plate Make Ridge Cap tile Machine Ridge Cap Cold Roll forming Machine 5

Our Service

Pre-sales service

* Inquiry and consulting support.
* Sample testing support.
* View our Factory.

After-sales service

* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.

Application

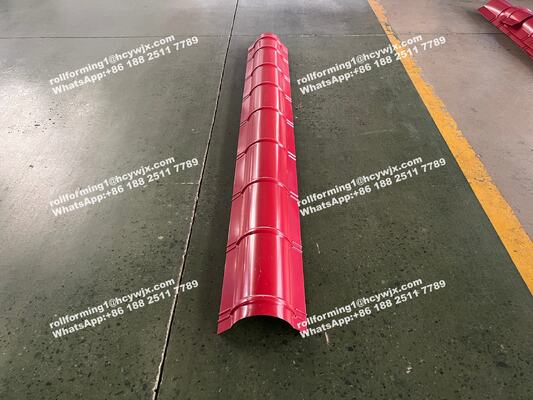

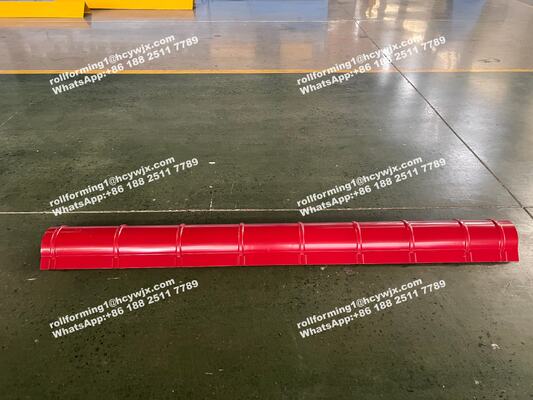

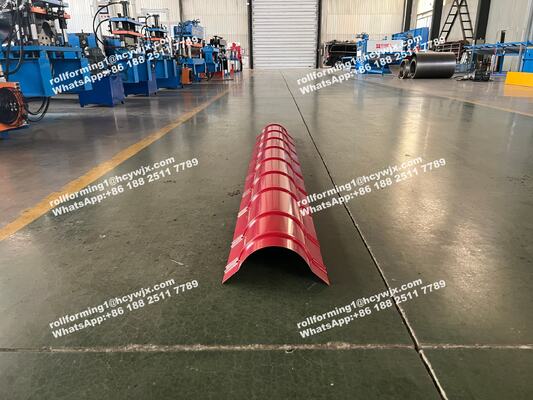

This product is widely used in many kinds of industrial factory, civilian buildings, and Roof board for attached part product. It has advantage of pretty appearance, durable using and so on.





Competitive Advantage



 1. sample customized

2. short production cycle

3. quality guarantee

4. high-effect, low consume

5. provide lifelong technical support
