جزئیات محصول:
|
| type: | Roofing Sheet Roll Forming Machine | usage: | roof sheet |
|---|---|---|---|
| material: | PPGI GI | thickness: | 0.3-0.8mm |
| capacity: | 20m/min | ||
| برجسته: | roof tile roll forming machine,roof panel roll forming machine,roof panel roll forming machine |
||

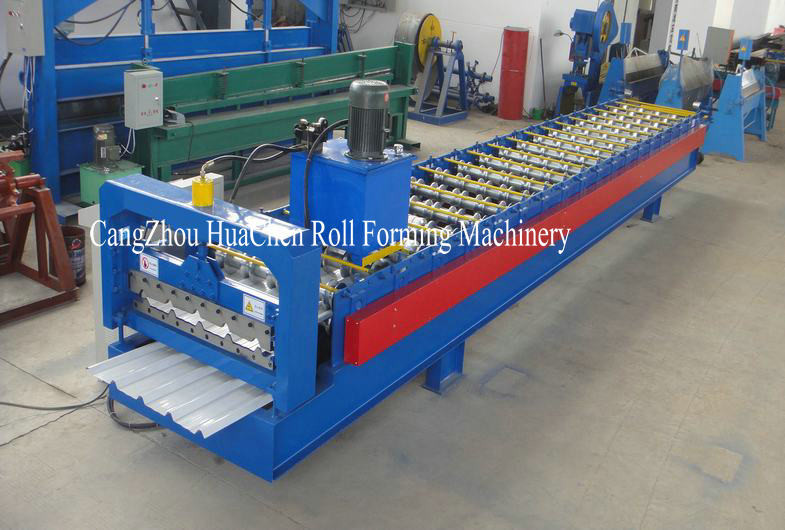

Trapezoid Cold Roll Forming Machine With Manual / Hydraulic Uncoiler
Quick Detail:
1. Suitable to process: Color steel plate
2. Width of the plate: 914mm
3. Rollers: 19 rows
4. Dimensions: 5.8*1.55*1.51m
5. Power: 4+4kw
6. Rolling material: 45# steel(plated chrome on surface)
7. Thickness of the plate:0.3-0.7mm
8. Voltage: 380V 50Hz 3phases
9. Material of the cutting plate: Cr12
10. Hydraulic: 40#
11. Processing precision: Within 1.00mm
12. Control system: PLC control
Description:
Roof Sheet Roll Forming Machine Main parameter
|
No. |
Main parameter of Roof Sheet Roll Forming Machine |
|
|
1 |
Suitable to process |
Color steel plate |
|
2 |
Width of the plate |
914mm |
|
3 |

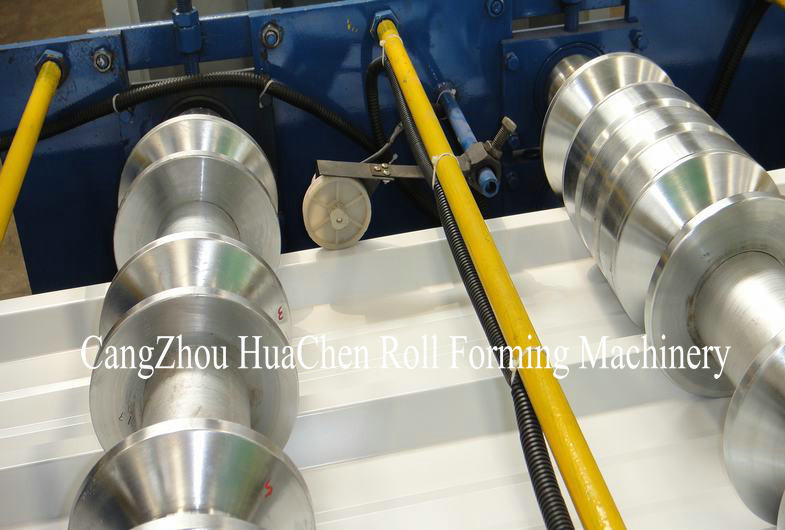

Rollers |
19 rows |
|
4 |
Dimensions |
5800*1550*1510mm |
|
5 |
Power |
4+4kw |
|
6 |
Rolling material |
45# steel(plated chrome on surface)
|
|
6 |
Thickness of the plate |
0.3-0.6mm |
|
7 |
Productivity |
8-10m/min |
|
8 |
Diameter of the roller |
Φ70mm |
|
9 |
Voltage |
380V 50Hz 3phases |
|
10 |
Material of the cutting plate |
Cr12 |
|
11 |
Hydraulic |
40# |
|
12 |
Processing precision |
Within 1.00mm |
|
13 |
Control system |
PLC control |

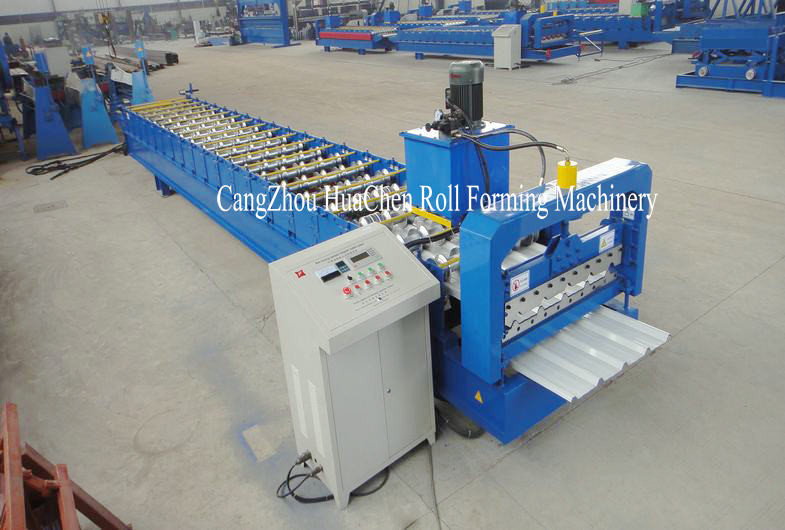

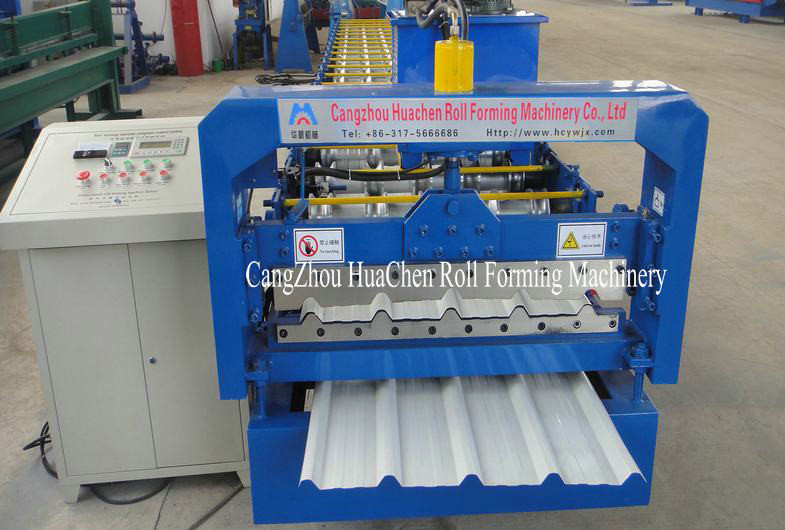

Equipment components: Man-made uncoiler-roll forming machine-computer control system-hydraulic control system-cutting
Application

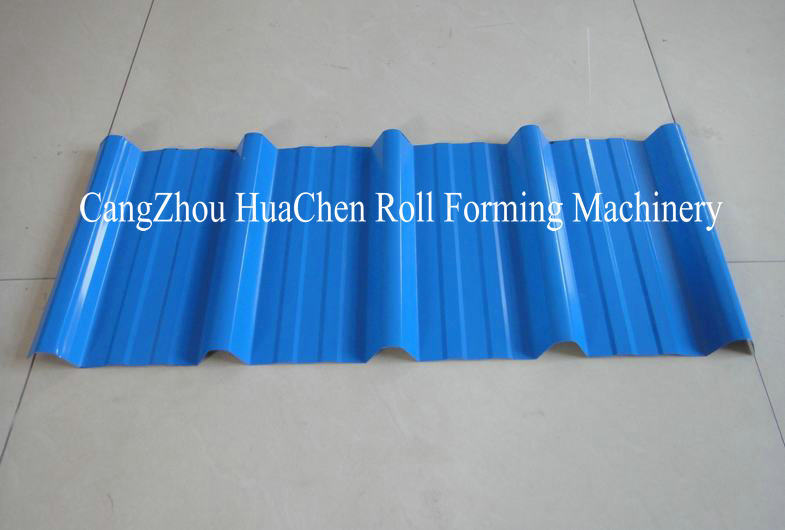

This type of sheet can be widely used in plant, house, storage and simple steel roof and wall. It has advantage of pretty appearance, durable using and so on.
Competitive Advantage
1. good service
2. easy installation
3. short delivery time
4. professional design team
5. easy to use
Worrying about machine packing and delivery ?
1.Main forming machine and un-coiler is naked(If you need we can also packed with water-proof plastic)
2.PLC control system and motor pump are packed with water proof paper coverage
3.All machines need one 40'container to hold.
