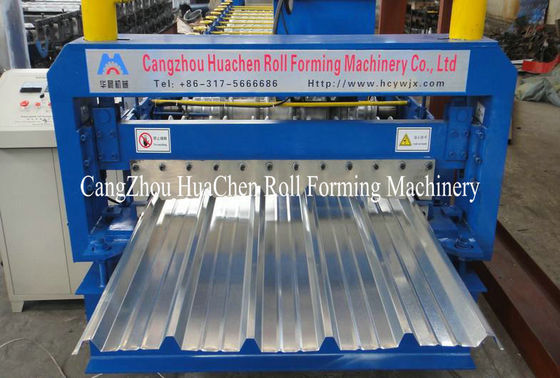

3 Phase Trapezoid Roofing Sheet Roll Forming Machine For 1200mm

چین 3 Phase Trapezoid Roofing Sheet Roll Forming Machine For 1200mm تامین کننده
3 Phase Trapezoid Roofing Sheet Roll Forming Machine For 1200mm تامین کننده 3 Phase Trapezoid Roofing Sheet Roll Forming Machine For 1200mm تامین کننده 3 Phase Trapezoid Roofing Sheet Roll Forming Machine For 1200mm تامین کننده 3 Phase Trapezoid Roofing Sheet Roll Forming Machine For 1200mm تامین کننده 3 Phase Trapezoid Roofing Sheet Roll Forming Machine For 1200mm تامین کننده

تصویر بزرگ :  3 Phase Trapezoid Roofing Sheet Roll Forming Machine For 1200mm

جزئیات محصول:

Place of Origin: Botou Hebei China
نام تجاری: HC
گواهی: ISO
Model Number: HC30-200-1000

پرداخت:

Minimum Order Quantity: 1set
قیمت: 8000-29000USD
Packaging Details: Main machine is nude,the computer control box is packed by carton box
Delivery Time: 30days
Payment Terms: 30% deposit by T/T in advance and 70% balance after inspection confirmation before shipment
Supply Ability: 20 sets/month
Contact Now
توضیحات محصول جزئیات
raw material: aluminum sheet type: Roofing Sheet Roll Forming Machine
use: roof panel profile: customized
cutting methold: hydraulic cut roller stations: 14
thickness: 0.3-0.7mm

Our firm is engaged in offering a wide array of Corrugated Roof Roll Forming Machine that is widely used in construction industry for making the roof tile and wall panel outside of building. The components used for its fabrication are procured from reliable sources of the market to deliver high performance and superior quality at users end. Our offered Corrugated Roof Roll Forming Machine is highly appreciated for its outstanding functionality, sturdy construction, optimum strength, easy usage and longer functional life. We offer this machine in different specifications to fulfill the diverse needs of clients at most affordable prices.



3 Phase Trapezoid Roofing Sheet Roll Forming Machine For 1200mm



Quick Detail:



1. Suitable to process: Color steel plate

2. Width of the plate: 1200mm

3. Rollers: 14 rows

4. Dimensions: 7.1*1.55*1.51m

5. Power: 4+4kw

6. Rolling material: 45# steel(plated chrome on surface)

7. Thickness of the plate:0.3-0.7mm

8. Voltage: 380V 50Hz 3phases

9. Material of the cutting plate: Cr12

10. Hydraulic: 40#

11. Processing precision: Within 1.00mm

12. Control system: PLC control





Description:



Roof Sheet Roll Forming Machine  Main parameter

No.

   Main parameter of Roof Sheet Roll Forming Machine

1

Suitable to process

Color steel plate

2

Width of the plate

1200mm

3

Rollers

14 rows

4

Dimensions

7100*1550*1510mm

5

Power

4+4kw

6

Rolling material

45# steel(plated chrome on surface)



6

Thickness of the plate

0.3-0.6mm

7

Productivity

8-10m/min

8

Diameter of the roller

Φ70mm

9

Voltage

380V 50Hz 3phases

10

Material of the cutting plate

Cr12

11

Hydraulic

40#

12

Processing precision

Within 1.00mm

13

Control system

PLC control

Equipment components: Man-made uncoiler-roll forming machine-computer control system-hydraulic control system-cutting

3 Phase Trapezoid Roofing Sheet Roll Forming Machine For 1200mm3 Phase Trapezoid Roofing Sheet Roll Forming Machine For 1200mm





Application



This type of sheet can be widely used in plant, house, storage and simple steel roof and wall. It has advantage of pretty appearance, durable using and so on.





Competitive Advantage



1. save space

2. easy install

3. perfect service

4. excellent quality

5. save freight



Worrying about machine packing and delivery ?
1.Main forming machine and un-coiler is naked(If you need we can also packed with water-proof plastic)
2.PLC control system and motor pump are packed with water proof paper coverage
3.All machines need one 40'container to hold.
3 Phase Trapezoid Roofing Sheet Roll Forming Machine For 1200mm
