Color Coated Galvanized Ridge Cap Roll Forming Machine Two Output Tables

Color Coated Galvanized Ridge Cap Roll Forming Machine Two Output Tables
Color Coated Galvanized Ridge Cap Roll Forming Machine Two Output Tables Color Coated Galvanized Ridge Cap Roll Forming Machine Two Output Tables Color Coated Galvanized Ridge Cap Roll Forming Machine Two Output Tables Color Coated Galvanized Ridge Cap Roll Forming Machine Two Output Tables Color Coated Galvanized Ridge Cap Roll Forming Machine Two Output Tables

تصویر بزرگ :  Color Coated Galvanized Ridge Cap Roll Forming Machine Two Output Tables

جزئیات محصول:
Place of Origin: Botou Hebei China
نام تجاری: HC
گواهی: ISO
Model Number: HC343
پرداخت:
Minimum Order Quantity: 1set
قیمت: 8000-19000USD
Packaging Details: Main machine is nude,the computer control box is packed by carton box
Delivery Time: 30days
Payment Terms: 30% deposit by T/T in advance and 70% balance after inspection confirmation before shipment
Supply Ability: 20 sets/month

Color Coated Galvanized Ridge Cap Roll Forming Machine Two Output Tables

شرح
Material: PPGI GI Thickness: 0.3-0.6mm
voltage: 380V
برجسته:

metal forming machines,cold roll forming equipment

,

cold roll forming equipment

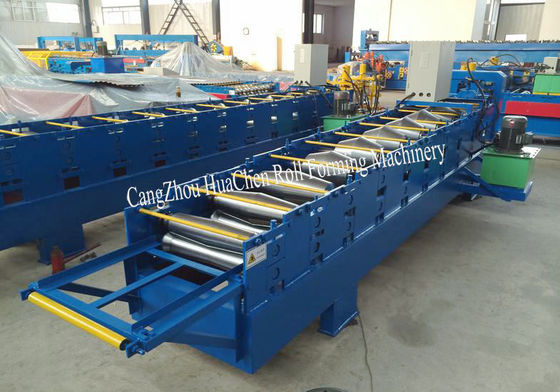

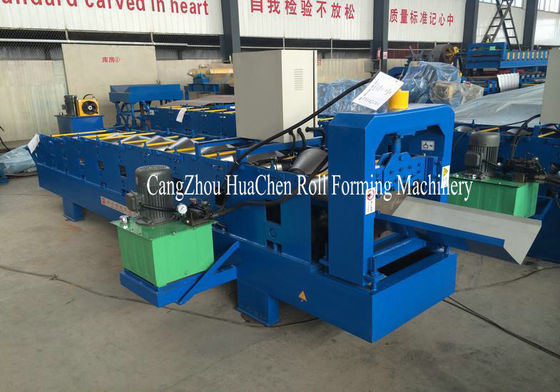

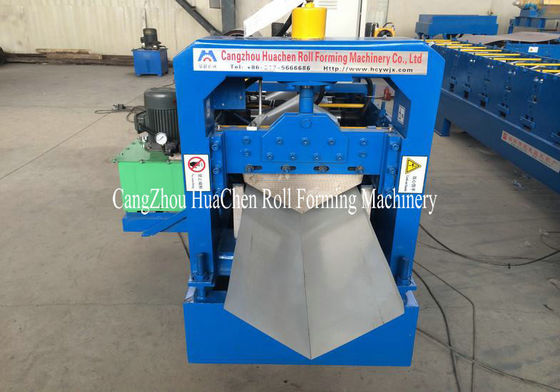

Color Coated Steel Galvanized Steel Ridge Cap Roll Forming Machine Two Output Tables





Quick Detail: Color Coated Steel Galvanized Steel Ridge Cap Roll Forming Machine Two Output Tables



1. Suitable to process: Color steel plate

2. Width of the plate: 400mm

3. Rollers: 11 rows

4. Dimensions: 5.8*1.35*1.51m

5. Power: 3+3kw

6. Rolling material: 45# steel(plated chrome on surface)

7. Thickness of the plate:0.3-0.6mm

8. Voltage: 380V 50Hz 3phases

9. Material of the cutting plate: Cr12

10. Hydraulic: 40#

11. Processing precision: Within 1.00mm

12. Control system: PLC control



Description: Color Coated Steel Galvanized Steel Ridge Cap Roll Forming Machine Two Output Tables



Color Coated Galvanized Ridge Cap Roll Forming Machine Two Output Tables 0



No.

   Main parameter of Color Coated Steel Galvanized Steel Ridge Cap Roll Forming Machine Two Output Tables

1

Suitable to process

Color steel plate

2

Width of the plate

400mm

3

Rollers

10rows

4

Dimensions

5700*1350*1510mm

5

Power

3+3kw

6

Rolling material

45# steel(plated chrome on surface)

6

Thickness of the plate

0.3-0.6mm

7

Productivity

8-10m/min

8

Diameter of the roller

Φ66 mm

9

Voltage

380V 50Hz 3phases

10

Material of the cutting plate

Cr12

11

Hydraulic

40#

12

Processing precision

Within 1.00mm

13

Control system

PLC control

Equipment components: Man-made uncoiler-roll forming machine-computer control system-hydraulic control system-cutting

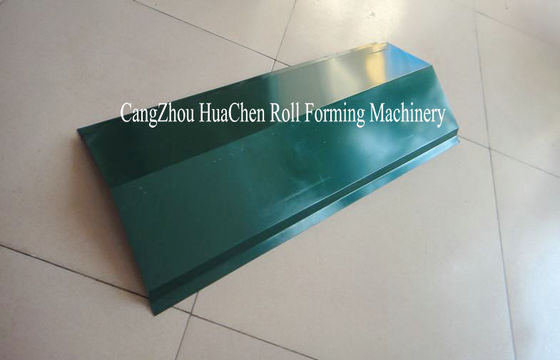

Application



Color Coated Galvanized Ridge Cap Roll Forming Machine Two Output Tables 1

Color Coated Galvanized Ridge Cap Roll Forming Machine Two Output Tables 2Color Coated Galvanized Ridge Cap Roll Forming Machine Two Output Tables 3



This product is widely used in many kinds of industrial factory, civilian buildings, and Roof board for attached part product. It has advantage of pretty appearance, durable using and so on.





Competitive Advantage



1. good service

2. easy installation

3. short delivery time

4. professional design team

5. easy to use

Why choose Huachen ?
1.Q: Do you have after sales support?
A: Yes, we are happy to give advice on machine operating and maintenance. we also have skilled technicians available abroad to help you.We need your machines running in order to keep your business running.

2.Q: How do your machines compare with other big companies in this market?
A: We are up to date with the latest technology and improve our machines accordingly .We need to make gress to move forward.

3.Q: How does your factory do regarding quality control?
A: Quality is priority.To all Huachen people,the concept "Control every process and perfect all products" is curved in mind. Every product will be fully assembled and carefully tested before it's packed for shipment.

4.Q: Do you sell only standard machines?
A: No, most of our machines are designed according to customers specifications,we offer OEM service.

5.Q: Will you deliver the right goods as ordered? How can I trust you?
A: Yes, we will. welcome to come and check your machine after finished, or we will show you machine working video for confirm. Then delivery.
