Automatic Roof Tile Roll Forming Machine With CR12 mould steel

Automatic Roof Tile Roll Forming Machine With CR12 mould steel
Automatic Roof Tile Roll Forming Machine With CR12 mould steel Automatic Roof Tile Roll Forming Machine With CR12 mould steel Automatic Roof Tile Roll Forming Machine With CR12 mould steel Automatic Roof Tile Roll Forming Machine With CR12 mould steel

تصویر بزرگ :  Automatic Roof Tile Roll Forming Machine With CR12 mould steel

جزئیات محصول:
Place of Origin: Botou Hebei China
نام تجاری: HC
گواهی: ISO
Model Number: HC18/28
پرداخت:
Minimum Order Quantity: 1set
قیمت: 15000-39000USD
Packaging Details: Main machine is nude,the computer control box is packed by carton box
Delivery Time: 30days
Payment Terms: 30% deposit by T/T in advance and 70% balance after inspection confirmation before shipment
Supply Ability: 20 sets/month

Automatic Roof Tile Roll Forming Machine With CR12 mould steel

شرح
برجسته:

metal roll forming machine,corrugated roll forming machine

,

corrugated roll forming machine

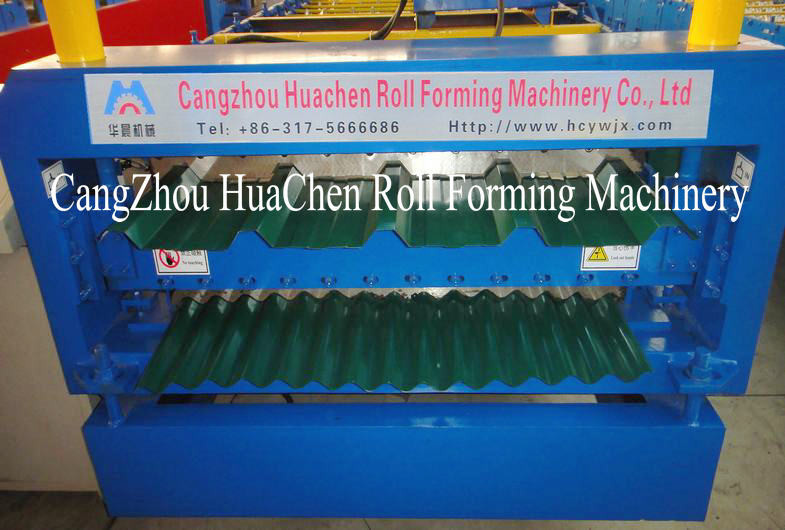

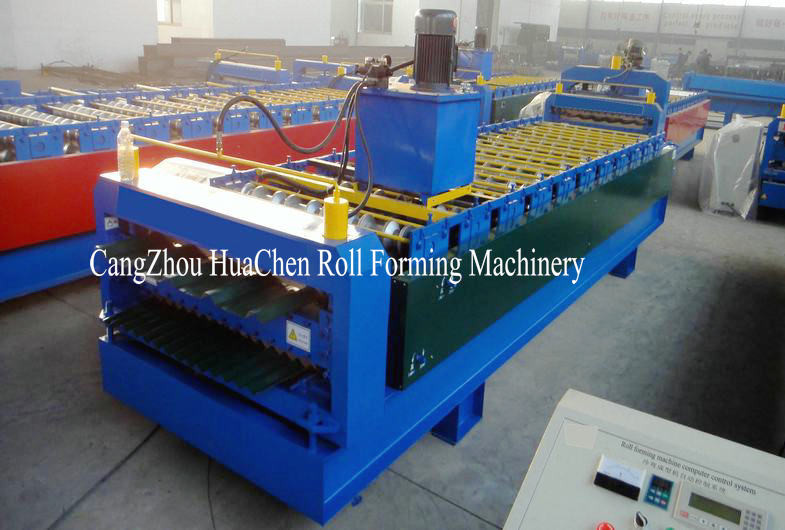

Automatic Double Layer Roll Forming Machine
 Automatic Roof Tile Roll Forming Machine With CR12 mould steel 0Automatic Roof Tile Roll Forming Machine With CR12 mould steel 1Automatic Roof Tile Roll Forming Machine With CR12 mould steel 2

Automatic Double Layer Roll Forming Machine


Quick Detail:

1. Suitable to process: Color steel plate
2. Width of the plate: 1220mm
3. Rollers: 12/12 rows
4. Dimensions: 7.2*1.55*1.91m
5. Power: 4+4kw
6. Rolling material: high grade 45# steel(plated chrome on surface)
7. Thickness of the plate:0.3-0.6mm
8. Voltage: 380V 50Hz 3phases
9. Material of the cutting plate: Cr12
10. Hydraulic: 40#
11. Processing precision: Within 1.00mm
12. Control system: PLC control


Description:

Automatic Double Layer Roll Forming Machine Main parameter

No.

 Main parameter of Automatic Double Layer Roll Forming Machine

1

Suitable to process

Color steel plate

2

Width of the plate

1220mm

3

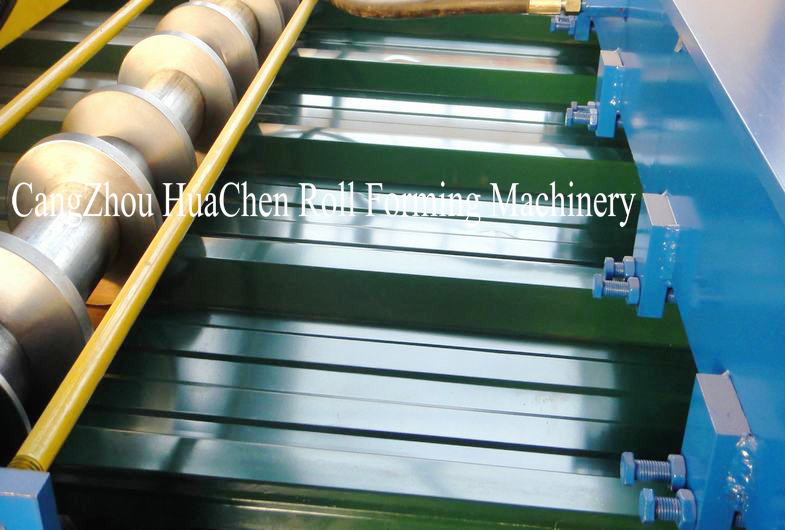

Rollers

upper level :12 rows
Down level :12 rows

4

Dimensions

7200*1550*1910mm

5

Power

4+4kw

6

Rolling material

high grade 45# steel(plated chrome on surface)

6

Thickness of the plate

0.3-0.6mm

7

Productivity

20m/min

8

Diameter of the roller

Φ70mm

9

Voltage

380V 50Hz 3phases

10

Material of the cutting plate

Cr12

11

Hydraulic

40#

12

Processing precision

Within 1.00mm

13

Control system

PLC control

Equipment components: Man-made uncoiler-roll forming machine-computer control system-hydraulic control system- cutting


Application

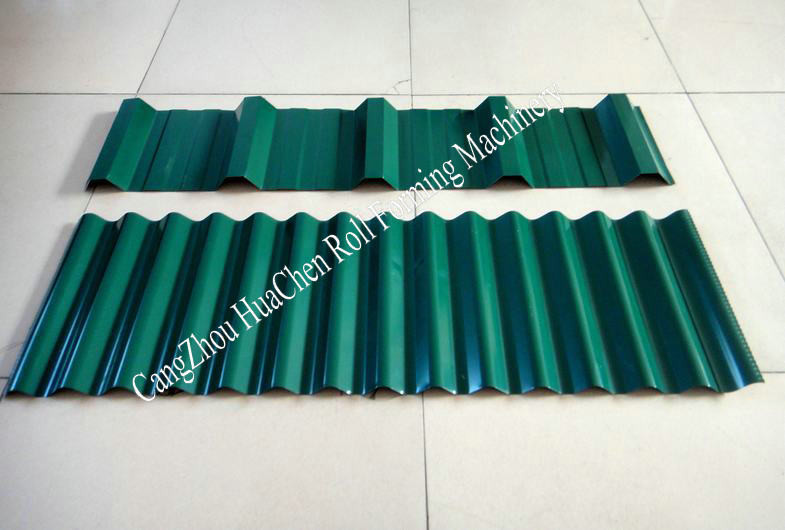

This kind of machine make two types of tile together perfectly, it has reasonable structure, beautiful appearance, with advantage of saving space, easy operate and especially welcomed by the customer  with limit area or site


Competitive Advantage

1. CE certification
2. hydraulic motor drive
3. Exported to more than 70 countries
4. suitable for various kinds of steel plate
5. voltage according to customer request

Automatic Roof Tile Roll Forming Machine With CR12 mould steel 3
