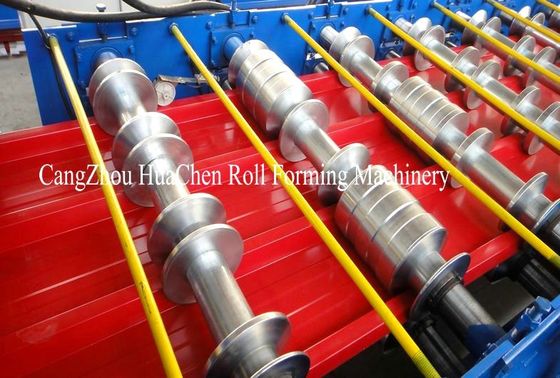

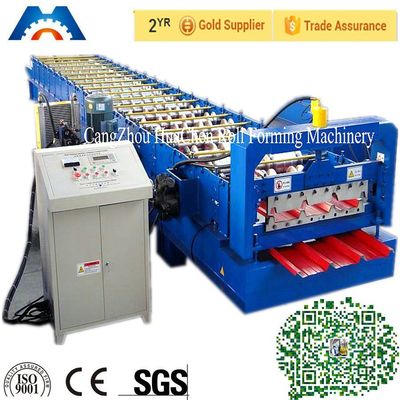

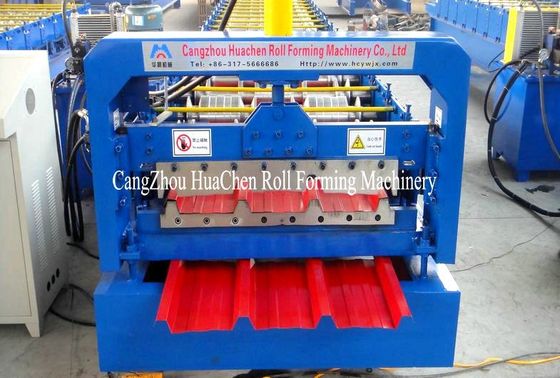

Q235 Color Steel Sheet Roofing Sheet Roll Forming Machine ISO 9001

Q235 Color Steel Sheet Roofing Sheet Roll Forming Machine ISO 9001
Q235 Color Steel Sheet Roofing Sheet Roll Forming Machine ISO 9001 Q235 Color Steel Sheet Roofing Sheet Roll Forming Machine ISO 9001 Q235 Color Steel Sheet Roofing Sheet Roll Forming Machine ISO 9001 Q235 Color Steel Sheet Roofing Sheet Roll Forming Machine ISO 9001 Q235 Color Steel Sheet Roofing Sheet Roll Forming Machine ISO 9001

تصویر بزرگ :  Q235 Color Steel Sheet Roofing Sheet Roll Forming Machine ISO 9001

جزئیات محصول:
Place of Origin: Botou Hebei China
نام تجاری: HC
گواهی: ISO
Model Number: HC38
پرداخت:
Minimum Order Quantity: 1set
قیمت: 8000-25000USD
Packaging Details: Main machine is nude,the computer control box is packed by carton box
Delivery Time: 30days
Payment Terms: 30% deposit by T/T in advance and 70% balance after inspection confirmation before shipment
Supply Ability: 20 sets/month

Q235 Color Steel Sheet Roofing Sheet Roll Forming Machine ISO 9001

شرح
Usage: Roof panel length: 12-60m
width: 1000mm thickness: 0.3-0.8mm
warranty: 12 months
برجسته:

roof tile roll forming machine,cold roll forming machine

,

cold roll forming machine

Q235 Color Steel Sheet Metal Roof Forming Machine



Q235 Color Steel Sheet Roofing Sheet Roll Forming Machine ISO 9001 0Q235 Color Steel Sheet Roofing Sheet Roll Forming Machine ISO 9001 1Q235 Color Steel Sheet Roofing Sheet Roll Forming Machine ISO 9001 2

Q235 Color Steel Sheet Metal Roof Forming Machine



Quick Detail:



1. Suitable to process: Color steel plate

2. Width of the plate:1000mm

3. Rollers: 18 rows

4. Dimensions: 9.1*1.45*1.51m

5. Power: 7.5kw

6. Rolling material: 45# steel(plated chrome on surface)

7. Thickness of the plate:0.3-0.7mm

8. Voltage: 380V 50Hz 3phases

9. Material of the cutting plate: Cr12

10. Hydraulic: 40#

11. Processing precision: Within 1.00mm

12. Control system: PLC control





Description:



Q235 Color Steel Sheet Metal Roof Forming Machine Main parameter

No.

   Main parameter of Q235 Color Steel Sheet Metal Roof Forming Machine

1

Suitable to process

Color steel plate

2

Width of the plate

600mm

3

Rollers

19 rows

4

Dimensions

9100*1450*1510mm

5

Power

5.5kw

6

Rolling material

45# steel(plated chrome on surface)



7

Thickness of the plate

0.3-0.6mm

8

Productivity

20m/min

9

Diameter of the roller

Φ70mm

10

Voltage

380V 50Hz 3phases

11

Material of the cutting plate

Cr12

12

Hydraulic

40#

13

Processing precision

Within 1.00mm

14

Control system

PLC control

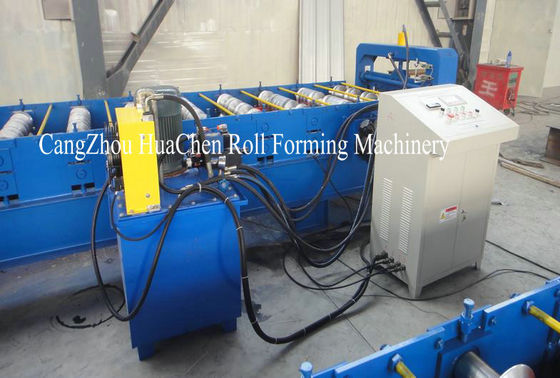

Equipment components: Man-made uncoiler-roll forming machine-computer control system-hydraulic control system-cutting

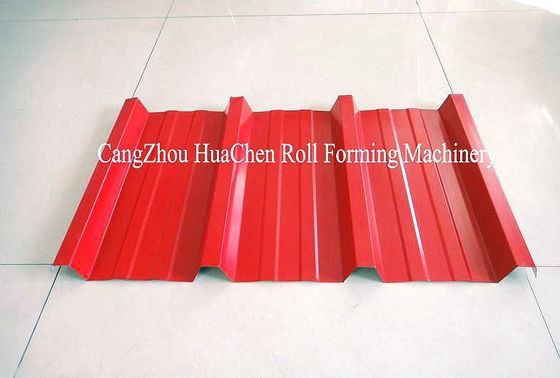

Application



This type of sheet can be widely used in plant, house, storage and simple steel roof and wall. It has advantage of pretty appearance, durable using and so on.





Competitive Advantage



1. good service

2. easy installation

3. short delivery time

4. professional design team

5. easy to use

Why choose Huachen ?
1.Q: Do you have after sales support?
A: Yes, we are happy to give advice on machine operating and maintenance. we also have skilled technicians available abroad to help you.We need your machines running in order to keep your business running.

2.Q: How do your machines compare with other big companies in this market?
A: We are up to date with the latest technology and improve our machines accordingly .We need to make gress to move forward.

3.Q: How does your factory do regarding quality control?
A: Quality is priority.To all Huachen people,the concept "Control every process and perfect all products" is curved in mind. Every product will be fully assembled and carefully tested before it's packed for shipment.

4.Q: Do you sell only standard machines?
A: No, most of our machines are designed according to customers specifications,we offer OEM service.

5.Q: Will you deliver the right goods as ordered? How can I trust you?
A: Yes, we will. welcome to come and check your machine after finished, or we will show you machine working video for confirm. Then delivery.
