New Design Steel Profile Roll Forming Machine With Competitive Advantages

گواهی
کیفیت خوب ورق روکش ورقه ای تشکیل دستگاه برای فروش
کیفیت خوب ورق روکش ورقه ای تشکیل دستگاه برای فروش
ماشین آسان برای استفاده. رئیس بسیار خوب است

—— آقای آنگولون از اروپا

این سازنده خوب، یک ارتباط خوب انگلیسی است و من ماشین های شما را دوست دارم. این کیفیت خوب و زیبا است!

—— Mr.Mark از آفریقا

تهیه کننده خوب! من تحویل سریع و چرخه تولید سریع خود را می خواهم، با شما تماس می گیرم.

—— Mr.Jack از امریکا

چت IM آنلاین در حال حاضر

New Design Steel Profile Roll Forming Machine With Competitive Advantages

چین New Design Steel Profile Roll Forming Machine With Competitive Advantages تامین کننده
New Design Steel Profile Roll Forming Machine With Competitive Advantages تامین کننده New Design Steel Profile Roll Forming Machine With Competitive Advantages تامین کننده New Design Steel Profile Roll Forming Machine With Competitive Advantages تامین کننده New Design Steel Profile Roll Forming Machine With Competitive Advantages تامین کننده New Design Steel Profile Roll Forming Machine With Competitive Advantages تامین کننده

تصویر بزرگ :  New Design Steel Profile Roll Forming Machine With Competitive Advantages

جزئیات محصول:

Place of Origin: China
نام تجاری: HC
گواهی: ISO CE
Model Number: HC32

پرداخت:

Minimum Order Quantity: 1set
قیمت: USD8000-15000
Packaging Details: 1.Main roll forming machine and un-coiler is nude packing (If you need, we can also packed it with water-proof plastic) 2. PLC control system and motor pump are packed with water proof paper,spare parts in carton box. 3.One set of machine needs a 40' con
Delivery Time: 30 work days
Payment Terms: D/A, Western Union, L/C, T/T
Supply Ability: 20 sets per month
Contact Now
توضیحات محصول جزئیات
Material: PPGi GI capacity: 4m/min
machine weight: 4.5T rollers: 45# steel
Type: Roll Forming Machine

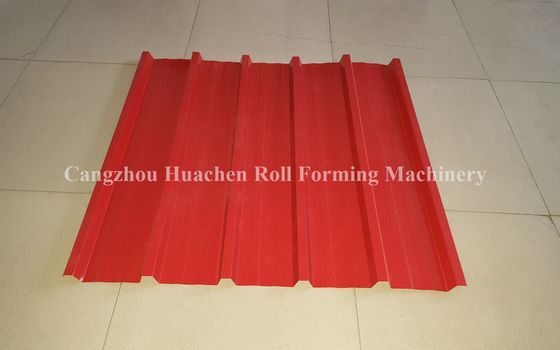

Steel Profile Roll Forming Machine Application

Our Metal Roofing Sheet Roll Forming Machine can produce various of steel roof and wall panel, it is a new building materials, the products are widely used as the roof and wall of factory, warehouse, garage, gymnasium, exhibition center, cinema, theatre, etc. It has many advantages, such as easy installation, short building period, beauty, light weight but high strength.


SPECIFICATIONS FOR Steel Profile Roll Forming Machine

Main Roll Forming Machine
Roller station
20 rows
Material of roller
High grade 45# forged steel plated with hard chrome plating
Material of cutter
Cr12 mould steel with quenched treatment

Material
Type
PPGI GI AL
Material width
customized
Material thickness
0.3-0.8mm

Others
Speed
20m/min
PLC system
EURA or customized
Weight
4..5T

 New Design Steel Profile Roll Forming Machine With Competitive AdvantagesNew Design Steel Profile Roll Forming Machine With Competitive AdvantagesNew Design Steel Profile Roll Forming Machine With Competitive Advantages

Steel Profile Roll Forming Machine Features

We do high standard roll forming machine for export about 10 years.
We have mature foreign trade team,senior engineers, experienced workers to make you satisfied.
We have machines at more than 90 cuntries and regions,and keep good business relationship.
we offer one year free warranty and free service for whole life of any machine.



Certifications
New Design Steel Profile Roll Forming Machine With Competitive AdvantagesNew Design Steel Profile Roll Forming Machine With Competitive AdvantagesNew Design Steel Profile Roll Forming Machine With Competitive Advantages

Metal Roofing Sheet Roll Forming Machine Parts

Detailed Images

New Design Steel Profile Roll Forming Machine With Competitive Advantages

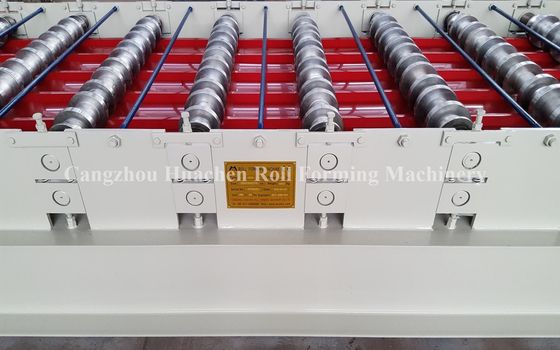

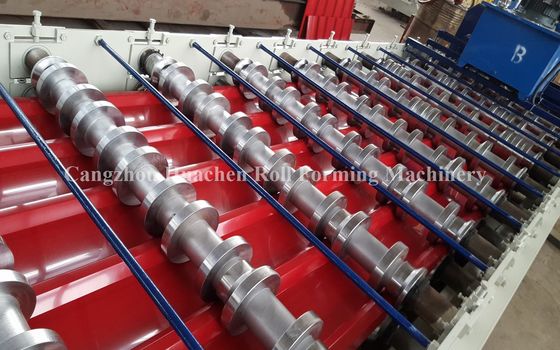

Name: Rollers
In order to get high quality product, our machine adopts welded steel frame structure, AC frequency conversion motor reducer drive, chain transmission, roller surfaces polishing, hard plating, heat treatment and chrome coating.
Roller chrome coated thickness: 0.05 mm
Roller material: Forging Steel 45# heat treatment

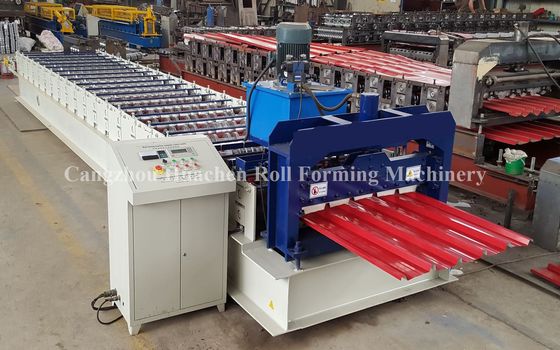

Main Roll Former

We have experieced workers to design the rollers as customized profile drawing , and adopts welded steel frame sturcture, AC frequency conversion motor reducer drive, chain transmission , to get strong machine for good finish products .



New Design Steel Profile Roll Forming Machine With Competitive Advantages
New Design Steel Profile Roll Forming Machine With Competitive Advantages

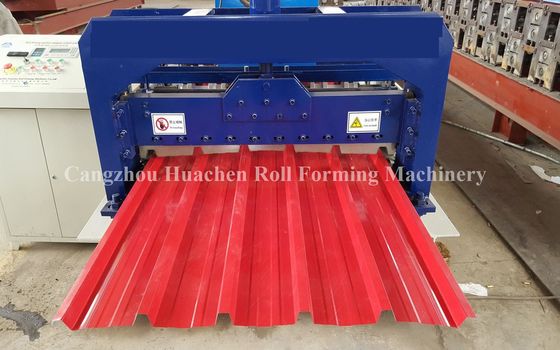

Hydraulic Cutting System

It adopts the hydraulic drive and automatic location to decide the dimension and cut the target products.
With non stop cutting
Material of blades: Cr12,quenching treatment



Our Service



New Design Steel Profile Roll Forming Machine With Competitive AdvantagesNew Design Steel Profile Roll Forming Machine With Competitive Advantages

Pre-Sales Service

* Inquiry and consulting support.
* Sample testing support.
* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to operate the machine.
* Engineers available to service machinery overseas.


Packing & Delivery

New Design Steel Profile Roll Forming Machine With Competitive Advantages

Size: 9400 (L) * 850 (W) * 1510 (H)
Weight: 4.5T
1.Main Roll Forming Machine and un-coiler is nude packing (If you need, we can also packed it with water-proof plastic)
2. PLC control system and motor pump are packed with water proof paper,spare parts in carton box.
3.One set of machine needs a 40' container to shipping.


New Design Steel Profile Roll Forming Machine With Competitive Advantages New Design Steel Profile Roll Forming Machine With Competitive Advantages New Design Steel Profile Roll Forming Machine With Competitive Advantages
