Roof Glazed Tile Roll Forming Machine , High speed metal Roll Forming equipment

چین Roof Glazed Tile Roll Forming Machine , High speed metal Roll Forming equipment تامین کننده

تصویر بزرگ :  Roof Glazed Tile Roll Forming Machine , High speed metal Roll Forming equipment

جزئیات محصول:

Place of Origin: Botou Hebei China
نام تجاری: HC
گواهی: ISO/CE
Model Number: HC24

پرداخت:

Minimum Order Quantity: 1set
قیمت: 12000-29000USD
Packaging Details: Main machine is nude,the computer control box is packed by carton box
Delivery Time: 30days
Payment Terms: 30% deposit by T/T in advance and 70% balance after inspection confirmation before shipment
Supply Ability: 20 sets/month
Contact Now
توضیحات محصول جزئیات
color: blue Type: Tile Forming Machine
Use: Roof Power(W): 4kw+4kw

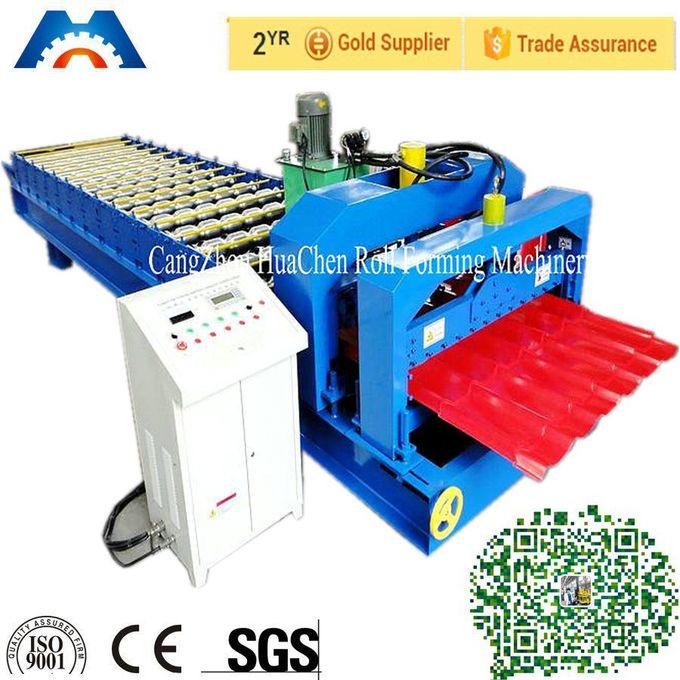

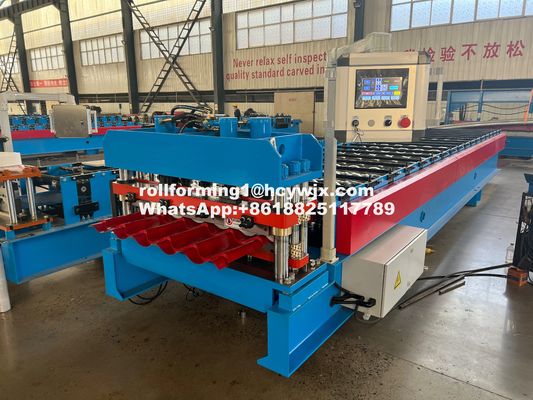

Roof Glazed Tile Roll Forming Machine , High speed metal Roll Forming equipment


Product Description

The structure of machine

1 set of manual decoiler

Un-powered; Single head;
Max. Capacity: 5000kg;
Coil inner-diameter: 508mm;

Used to load coil;
Guided feeding to level the panel

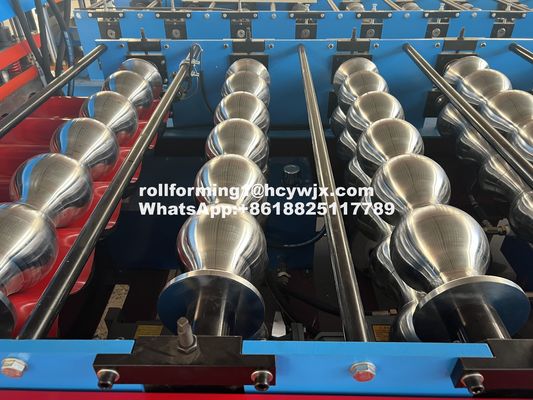

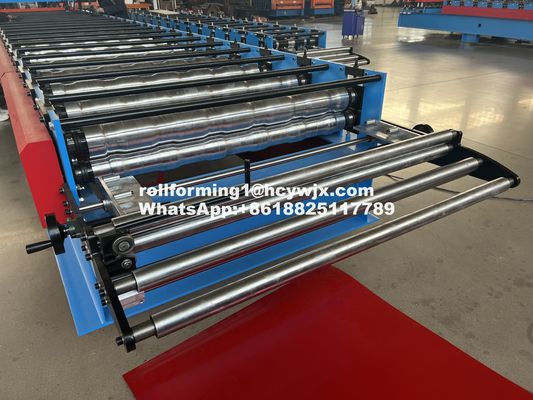

1 set of main roll forming machines

Steps: 13;Roller Material: 45# steel
Voltage: 380V/50Hz;Line speed: 12m/min;
Rolling chromium thickness: 0.05 mm;

Rollers are used to forming the roof panel

1 set of computer control cabinet

It adopts Taida PLC to control. The target piece length is
adjustable and digit of it can be adjusted.
5.7 inch touch screen, easy to operate Computed mode has two

modes: Automatic and manual one.

1 set of hydraulic System

It is controlled by gear wheel oil pump. After filling the hydraulic
oil into the hydraulic oil tank, the pump drive the cutter machine
to begin the cutting job.
Match equipment: A set of hydraulic tank, a set of hydraulic oil

pump, two hydraulic pipes and two sets of electromagnetism
valves.
Power of the oil pump: 4kw; Hydraulic oil: 40#


PLC control system used to set length of panel,
and control speed of producing easily.

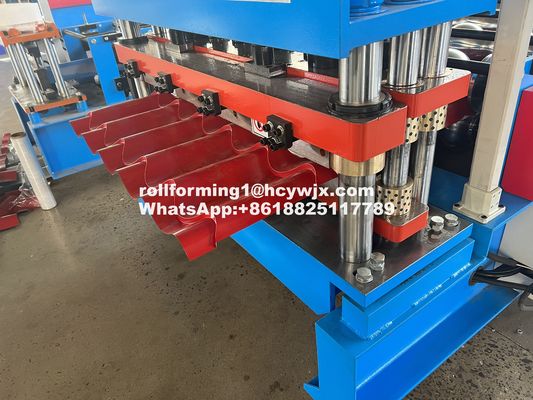

1 set of cutting mechanism

It adopts hydraulic drive and automatic location to decide the
dimention and cut the target products.
Match equipment: One set of cutting tool, one hydraulic tank,

one cutter machine.
Stop to cut, Post cut cutting length tolerance: ± 2mm.
Cutting tool material: GCr12 with quenched treatment 60-62° C.

Cuting roof or wall panels drived by hydraulic oil pump.

1 set of counterOne counter gauges length, pulses, and decides length.
1 set of output table It used to load the forming plate.

Roof Glazed Tile Roll Forming Machine , High speed metal Roll Forming equipmentRoof Glazed Tile Roll Forming Machine , High speed metal Roll Forming equipment
Application

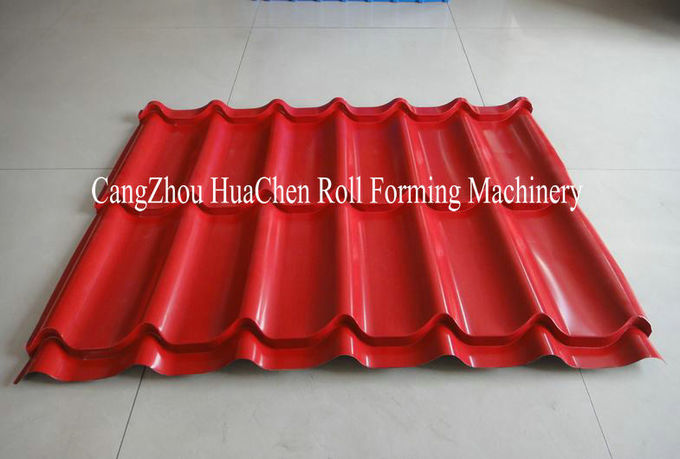

Our machine is used to manufacture various house frame. The roof tiles manufatured by our Roll
Forming Machine Line are beautiful and durable. With advantages of saving space and easy operation.
They are widely used in gardens, factories, resorts, hotels, exhibition halls, vacationlands, ancient
architectures and modern villas.
We have the most professional technician, foreign trade and design team. All kinds of roll forming
machine can be customized, so just send your panel profile and real enquiry to me.
