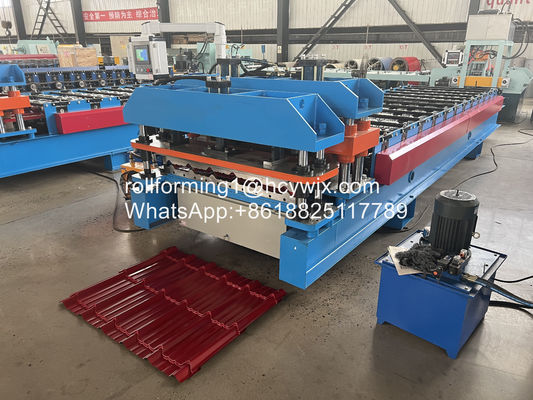

Colored Steel Glazed Tile Roll Forming Machine , Durable Roll Form Machine

Colored Steel Glazed Tile Roll Forming Machine , Durable Roll Form Machine
Colored Steel Glazed Tile Roll Forming Machine , Durable Roll Form Machine

تصویر بزرگ :  Colored Steel Glazed Tile Roll Forming Machine , Durable Roll Form Machine

جزئیات محصول:
Place of Origin: Botou Hebei China
نام تجاری: HC
گواهی: ISO/CE
Model Number: HC30
پرداخت:
Minimum Order Quantity: 1set
قیمت: 12000-29000USD
Packaging Details: Main machine is nude,the computer control box is packed by carton box
Delivery Time: 30days
Payment Terms: 30% deposit by T/T in advance and 70% balance after inspection confirmation before shipment
Supply Ability: 20 sets/month

Colored Steel Glazed Tile Roll Forming Machine , Durable Roll Form Machine

شرح
Power(W: 4+4KW Voltage: 380V
Cutting type: Hydraulic Cutting Shaft material: 45# St
Function: roof Brand of PLC: Simens Mitsubishi Delta
برجسته:

roll forming equipment

,

roof tile roll forming machine

 Colored Steel Glazed Tile Roll Forming Machine , Durable Roll Form Machine



Specification



Name Tile Forming Machine Colored Glaze Steel Roll Forming Machine
Control System PLC Delta Inverter
Power Supply 3-Phase,380V,50Hz
Main Frame 350 H-Beam
Main Power 5.5kw
Pump Power 3kw
Forming Speed 10 m/min
Roll Station Upper Level 11 Stands, Down Level 11 Stands
Roller Diameter 70mm
Hydraulic Pressure 10-12 MPa
Forming Size 840mm, 900mm
Feeding Thickness 0.3-1.2mm
Feeding Width 1000mm
Backboard Thickness 14mm, 16mm
Chain Size 20mm
Cutter Standard Cr12
Roller Standard Cr12
Cr-Plating Size 0.05mm
Overall Size 7000×1500×1600mm
Total Weight 4.5T





Product Show


Colored Steel Glazed Tile Roll Forming Machine , Durable Roll Form Machine 0Colored Steel Glazed Tile Roll Forming Machine , Durable Roll Form Machine 1Colored Steel Glazed Tile Roll Forming Machine , Durable Roll Form Machine 2Colored Steel Glazed Tile Roll Forming Machine , Durable Roll Form Machine 3

Components of Roof Tile Making Machine



No. Component Qty
1 Main forming machine 1set
2 Manual decoiler 1set
3 PLC control system 1set
4 Post cut 1set
5 Hydriculic pump station 1set
6 Electric motor 1set





Our Company Introduction



Tile Forming Machine Colored Glaze Steel Roll Forming Machine



After Sales Service



The After Sales Service can be guaranteed within 3 years.

Tile Forming Machine Colored Glaze Steel Roll Forming Machine
