جزئیات محصول:
|
| محل منبع: | Hebei, China (Mainland) | Production: | 8-12m/min |
|---|---|---|---|
| Power(W): | 4+4kw | Dimension: | 7*1.5*1.5m |
| Weight: | 4T | Thickness: | 0.3-0.8mm |
| برجسته: | roof tile roll forming machine,roof panel roll forming machine,roof panel roll forming machine |
||

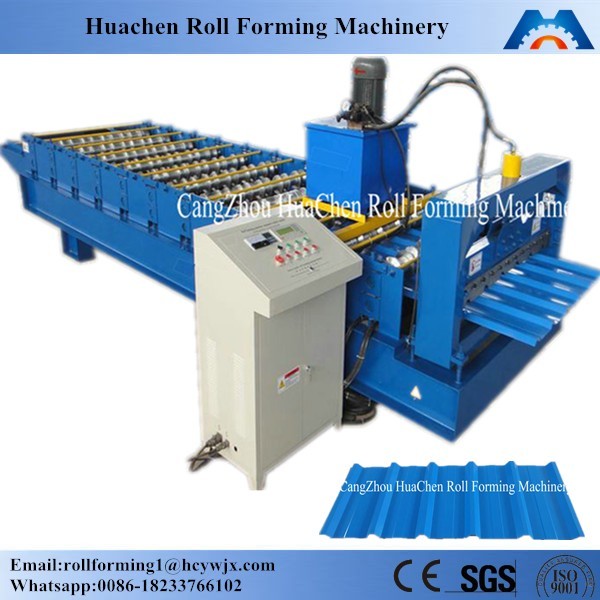

Corrugated Galvanized Roofing Sheet Roll Forming Machines , High Efficiency
Supply various roof/wall profiles
Accept customized design
Machine working life could be more than 10 years
Supply technical support for all life
Working flow:
Decoiling → Feeding & Guiding → Roll forming → Cutting → Output the finished production
Technical specifications:
| Item | Parameter | |
|
Suitable Material |
Type | PPGI/GI/PPGL |
| Thickness | 0.3-0.8mm | |
| Wide | 914mm/1000mm/1200mm/1250mm/1450mm | |
| Yield Strength | 230~550MPA | |
|
Product Specs |
Profile | Customized profile |
| Effective width | Base on customized profile | |
| Length | Any length | |
|
Power Specs |
Voltage | 380V/3PH/50HZ, accept customization |
| Main Motor | 4kw | |
| Hydraulic motor | 3kw | |
| Hydraulic pressure | 10-12MPa | |
|
Machine Specs |
Forming steps number | 13~20 steps |
| Shaft Material | 45 # steel tempered,Φ70~90mm | |
| Roller Material | 45 # steel chrome coated | |
| Main machine body | 350# H steel welded | |
| Transmission | Chain and Sprocket, chain size 1 inch | |
| Wall Plate | 16mm thickness | |
| Blade material | Cr12 mould steel with quenched treatment 60-62° | |
| Forming Speed | 8-12m/min for standard solution | |
| Cutting system |
Length-set cutting after roll formed and could pre-cutting to switch off the coils |
|
| Control System | Delta PLC and Inverter | |
| Manual decoiler |
Max width of coiling: 1000~1450mm Max weight of loading: 5000kg |
|
| Output Supporter | 2 Pcs Simple Supporter | |
| Dimension of the machine | 7.5m~11m×1.5mm×1.2m | |
| Weight of the machine | 3.5 ton ~6 ton | |
