|control system:||PLC control||cutting method:||hydraulic cut|
|working speed:||8-10m/min||per month:||30 sets|

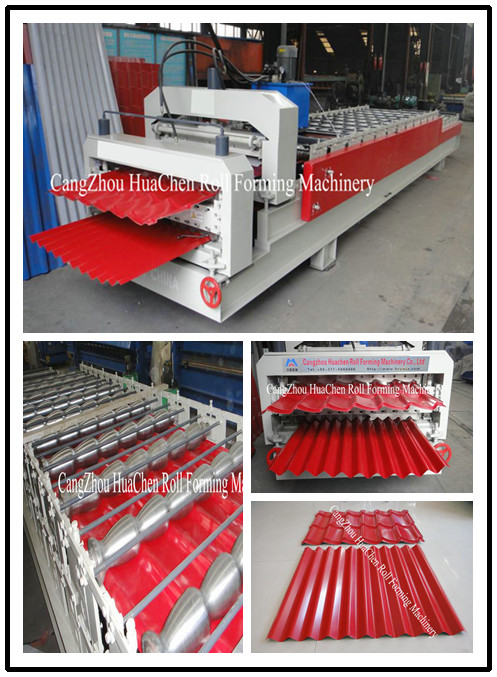

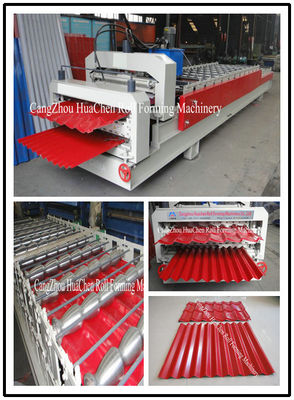

Color steel tile roll forming machine specification:
1. Number of forming groups: 12/14
2. The machine material: welding comprise of 300 H-steel
3. The wallboard: processing compose of 22mm steel plate
4. The mold: The mold is made of 45#steel, processed after rough turning, finish turning, finish grinding, hard chrome
plating to ensure that the mold no deformation, glabrous, wearable and accurate.
5. The shaft: The shaft is made of 45#steel, diameter of 77mm, finish turning, finish grinding after heat treatment,
quenching and high temperature tempering.
6. The bearing: Harbin type 6209
7. The roll material: 0.3-0.5mm color steel sheet, galvanized steel sheet , It can be customized according to the provided size .
8. Motor:4kw * 2sets (380v)
9. Transmission: 1.0 inch chain
10. Discharge rack: 2 sets
11. Machine feature: PLC NC frequency electrical boxes, touch screen`s display, the encoder counting,
the length and quantity of the material is controllable, accuracy with in 1.0mm, automatic hydraulic cut.
12. Machine Length: 7.5m * 1.5 m * 1.5 m
13. Machine Weight: 5.8tons
14. Production time: 30 days
15. One year warranty
