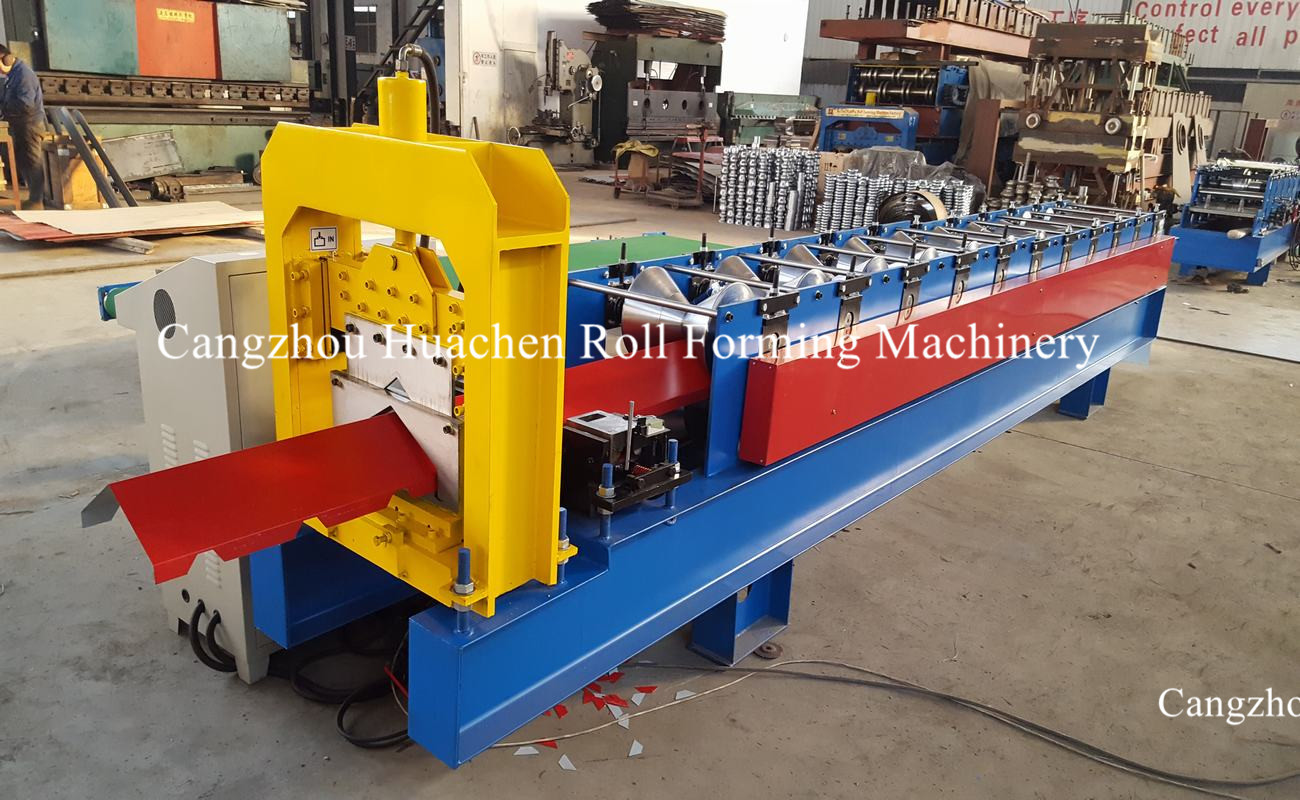

Chain Drive Ridge Cap Roll Forming Machine with Computer Control System

Chain Drive Ridge Cap Roll Forming Machine with Computer Control System
Chain Drive Ridge Cap Roll Forming Machine with Computer Control System

تصویر بزرگ :  Chain Drive Ridge Cap Roll Forming Machine with Computer Control System

جزئیات محصول:
Place of Origin: Botou Hebei China
نام تجاری: HC
گواهی: ISO
Model Number: HC400
پرداخت:
Minimum Order Quantity: 1set
قیمت: 13000-29000USD
Packaging Details: Main machine is nude,the computer control box is packed by carton box
Delivery Time: 30days
Payment Terms: 30% deposit by T/T in advance and 70% balance after inspection confirmation before shipment
Supply Ability: 20 sets/month

Chain Drive Ridge Cap Roll Forming Machine with Computer Control System

شرح
برجسته:

metal forming machines

,

cold roll forming equipment


Chain Drive Ridge Cap Roll Forming Machine with Computer Control System

Product Description



The archaistic tile sheet is rolled and pressed by modular tile making machine,it has many features,such as good appearance,primitive simiplicity and elegance,unique style,noblest grade,and etc. It is widely used in garden style factories,scenic resorts,pavilions,hotels,villas,exhibition halls,country clubs,and so on for outdoor decorations.



Roof tile making machine consists of uncoiler and its base,infeed guides,fixed position driven forming stations,pressing die,shearing device,hydraulic station,PLC control console and so on.Our company has dozens of profile models for this series roll forming machine,We can design different kinds of profile and fittings for machine,as per customers’ requirement.

Chain Drive Ridge Cap Roll Forming Machine with Computer Control System 0Chain Drive Ridge Cap Roll Forming Machine with Computer Control System 1Chain Drive Ridge Cap Roll Forming Machine with Computer Control System 2Chain Drive Ridge Cap Roll Forming Machine with Computer Control System 3





No.

Steel Bamboo Roofing Sheets Making Machine/glazed tile roll forming machine
1 Suitable material Color steel sheet ,galvanized steel sheet, aluminium sheet
2 Width of material 400mm or as you required
6 Thickness of material 0.3-0.8mm or as your needs
2 Working speed 12m/min
3 Main motor power 3kw with cycloidal reducer
4 Hydraulic station power 4kw
5 Electrical control system PLC control system
7 Shaft diameter 80mm
8 Roller station

14 rows



10 Dimension 7500x1500x1910mm
11 Weight About 4 T
12 Voltage 380V 3phase 50HZ or as the customer's requirements
13 Material of roller High grade 45# forged steel plated with hard chrome plating
14 Material of cutting Cr12 mould steel with quenched treatment
15 Working time Can be 24 hours
16 Workers 1-2 only



Please Note: All the parameters can be designed as your requirement.

Let me show you how to operate Chain Drive Computer Control System Ridge Cap Roll Forming Machine with Tile Sheets :

Decoiling→Feeding & Guiding→Roll Forming→ Cutting→Finished Products To Support Table





FAQ





1.You are trade company or factory

- We are trade company but we also have own factories. Building trade company is just for exporting various types of cold roll forming machines.



2. Why your price is higher than others

- As we persist on that each factory should put quality at the first place. We spend time and money on developing



how to make machines much more automatic, accurate and high quality. We can make sure that our machine could use more than 20 years without any problem. We can provide 2 years free quality assurance.



3. How long the machine could be made

- Normally speaking, welded pipe making machine could be made without 45 working days. If you need machines



in a hurry, we can make it for you less than a month.
