|Place of Origin:||Botou Hebei China|
|Minimum Order Quantity:||1set|
|Packaging Details:||Main machine is nude,the computer control box is packed by carton box|
|Payment Terms:||30% deposit by T/T in advance and 70% balance after inspection confirmation before shipment|
|Supply Ability:||20 sets/month|
|type:||glazed tile roll forming machine||width:||1250|
|Dimension:||7.5*1.5*1.2m||life time:||10 years|
roll forming equipment,
roof tile roll forming machine

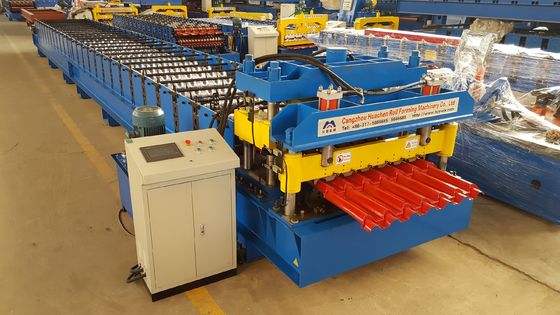

After Glazed tile roll forming machine step tile making machine finished,we take pictures and keep the finished sheets to our showroom.We test our machine strictly to make sure every customer get it satisfied. Your profile drawing is welcomed and acceptable. We can also design the roll forming machine as your requirement.
Detailed Parameters of Glazed tile roll forming machine step tile making machine
|No.||Glazed tile roll forming machine step tile making machine|
|1||Suitable material||Color steel sheet ,galvanized steel sheet, aluminium sheet|
|2||Width of material||1250mm or as you required|
|6||Thickness of material||0.3-0.6mm or as your needs|
|3||Main motor power||4kw with cycloidal reducer|
|4||Hydraulic station power||4kw|
|5||Electrical control system||PLC control system|
|11||Weight||About 6.5 T|
|12||Voltage||380V 3phase 50HZ or as the customer's requirements|
|13||Material of roller||High grade 45# forged steel plated with hard chrome plating|
|14||Material of cutting||Cr12 mould steel with quenched treatment|
|15||Working time||Can be 24 hours|
Please Note: All the parameters can be designed as your requirement.
Let me show you how to operate Glazed tile roll forming machine step tile making machine
Decoiling→Feeding & Guiding→Roll Forming→Cutting→Finished Products To Support Table
Not interested in this design ? Here are other profiles for your reference.
Worry about Packing and delivery ?
1.Main Glazed tile roll forming machine step tile making machine and un-coiler is nude packing (If you need, we can also packed it with water-proof plastic)
2. PLC control system and motor pump are packed with water proof paper,spare parts in carton box.
3.One set of machine needs a 40' container to shipping.
Why choose Huachen ?
We do high standard roll forming machine for export about 9 years.
We have mature foreign trade team,senior engineers, experienced workers to make you satisfied.
We have machines at more than 70 countries and regions,and keep good business relationship.
we offer one year free warranty and free service for whole life of any machine.
