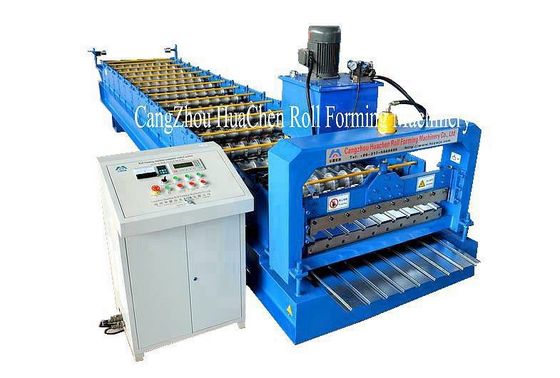

High Speed Roof Sheet / Wall Panel Roll Forming Machine With Chain Drive PLC Control

High Speed Roof Sheet / Wall Panel Roll Forming Machine With Chain Drive PLC Control
High Speed Roof Sheet / Wall Panel Roll Forming Machine With Chain Drive PLC Control

تصویر بزرگ :  High Speed Roof Sheet / Wall Panel Roll Forming Machine With Chain Drive PLC Control

جزئیات محصول:
Place of Origin: Botou Hebei China
نام تجاری: HC
گواهی: ISO
Model Number: HC12
پرداخت:
Minimum Order Quantity: 1set
قیمت: 8000-29000USD
Packaging Details: Main machine is nude,the computer control box is packed by carton box
Delivery Time: 30days
Payment Terms: 30% deposit by T/T in advance and 70% balance after inspection confirmation before shipment
Supply Ability: 20 sets/month

High Speed Roof Sheet / Wall Panel Roll Forming Machine With Chain Drive PLC Control

شرح
برجسته:

sheet metal rolling equipment,roof sheet making machine

,

roof sheet making machine

High Speed Roof Sheet / Wall Panel Roll Forming Machine With Chain Drive PLC Control



Quick Detail:



Composition


This wall panel roll forming machine consists of several parts, as listed below.

1. 5T decoiler
2. roll forming machine
3. Hydraulic shear
4. Hydraulic station
5. PLC control cabinet
6. run out table





Working process:



Passive decoiling → guided material feeding → roll forming → cut-to-length → run out





Description:



The wall panel roll forming machine is designed to make favored wall panels that are used to build walls of many industrial and civilian constructions around the world, including workshop, warehouse, hangar, gymnasium, theatre, exhibition hall, engine house, etc.





Applications:

  1. workshop
  2. warehouse
  3. hangar
  4. gymnasium
  5. theatre
  6. exhibition hall
  7. engine house
  8. industrial buiding
  9. civilian buiding





Specifications



Model   Note
Applicable material Color plate, galvanized sheet, galvalume plate and aluminum sheet This machine is customizable upon each customer's requirements and the characteristics of processed material.
Feeding width 1000mm
Processing thickness 0.4mm - 0.8mm
Roller material 45# steel coated with hard chrome
Main motor power / hydraulic station power 5.5kW / 3kW These parameters can be set according to the required production capacity.
Forming passes 16
Forming speed 5-15m/minute
Machine dimensions 7.6×1.3×1.2m
Machine weight 3.8T



High Speed Roof Sheet / Wall Panel Roll Forming Machine With Chain Drive PLC Control 0High Speed Roof Sheet / Wall Panel Roll Forming Machine With Chain Drive PLC Control 1High Speed Roof Sheet / Wall Panel Roll Forming Machine With Chain Drive PLC Control 2High Speed Roof Sheet / Wall Panel Roll Forming Machine With Chain Drive PLC Control 3

Competitive Advantage:



1. The finished panel has small depth and large pitch. Thus, it is relatively easier to manufacture this machine, and the price is moderate.

2. The wall panel itself has reinforcing rib, and corrugation is not generated during production. Its mechanical strength makes it suitable for general use.

3. There is no need to redesign the wall panel roll forming machine, so the production cycle is reduced greatly. In addition, customized products are also available if relevant drawings and requirements are provided.
