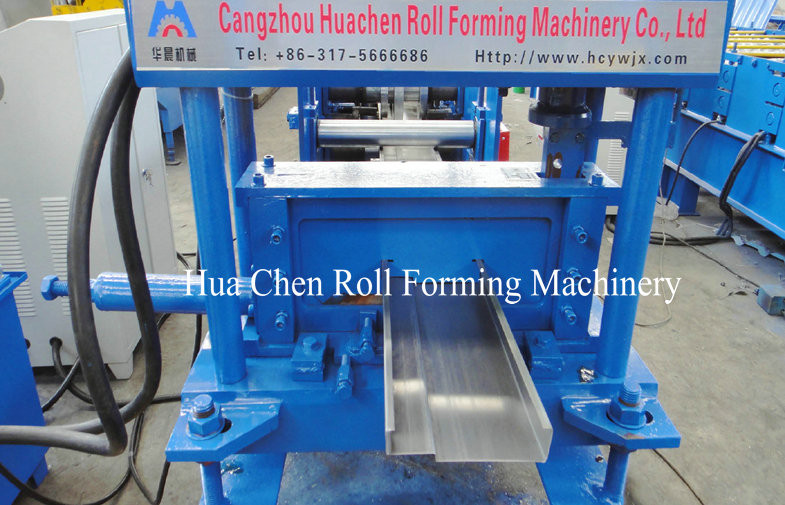

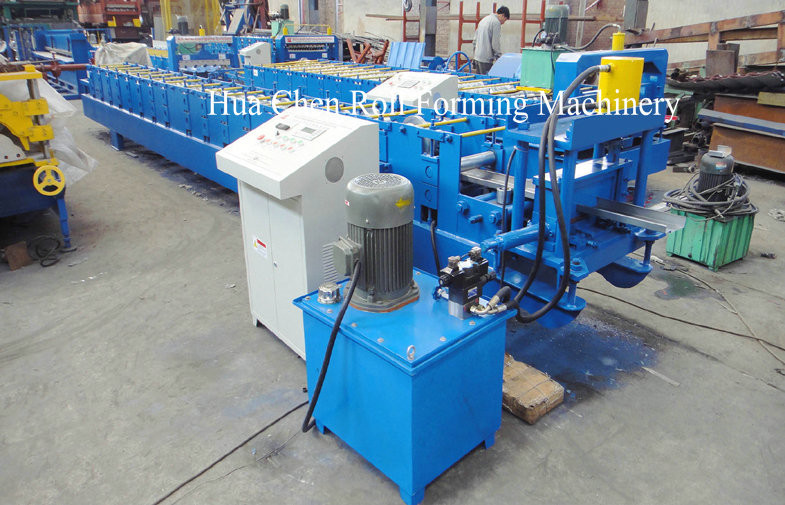

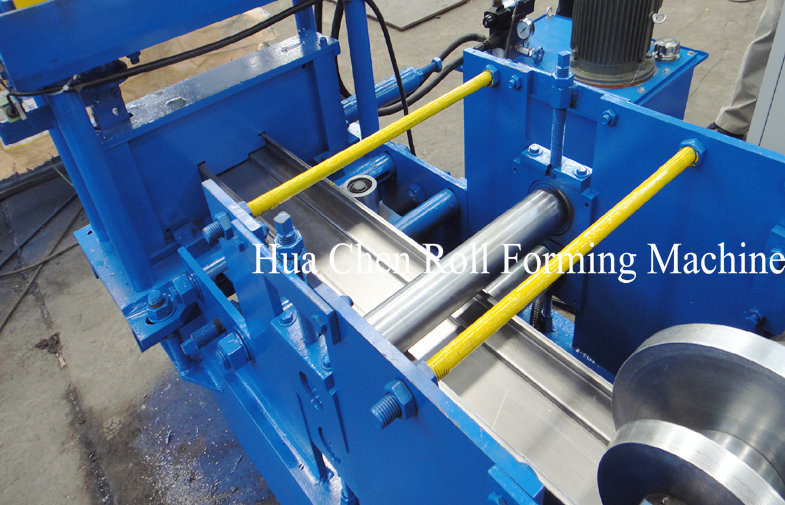

260 / 310mm Door Frame Roll Forming Machine

260 / 310mm Door Frame Roll Forming Machine
260 / 310mm Door Frame Roll Forming Machine 260 / 310mm Door Frame Roll Forming Machine 260 / 310mm Door Frame Roll Forming Machine 260 / 310mm Door Frame Roll Forming Machine

تصویر بزرگ :  260 / 310mm Door Frame Roll Forming Machine

جزئیات محصول:
Place of Origin: Botou Hebei China
نام تجاری: HC
گواهی: ISO
Model Number: HC146/196
پرداخت:
Minimum Order Quantity: 1set
قیمت: 12000-29000USD
Packaging Details: Main machine is nude,the computer control box is packed by carton box
Delivery Time: 30days
Payment Terms: 30% deposit by T/T in advance and 70% balance after inspection confirmation before shipment
Supply Ability: 20 sets/month

260 / 310mm Door Frame Roll Forming Machine

شرح
برجسته:

metal Roll Forming equipment,Roll Forming Machinery

,

Roll Forming Machinery

Door Frame Roll Forming Machine



Description:



Door Frame Roll Forming Machine Main parameter

No.

   Main parameter of Door Frame Roll Forming Machine

1

Suitable to process

Color steel plate

2

Width of the plate

260/310mm

3

Rollers

17 rows

4

Dimensions

8200*1350*1510mm

5

Power

5.5+4kw

6

Rolling material

shaft bearing steel(quenching)

6

Thickness of the plate

0.6-1mm

7

Productivity

8-10m/min

8

Diameter of the roller

Φ80mm

9

Voltage

380V 50Hz 3phases

10

Material of the cutting plate

Cr12

11

Hydraulic

40#

12

Processing precision

Within 1.00mm

13

Control system

PLC control





Equipment components: Man-made uncoiler-leveling-roll forming machine-computer control system-hydraulic control system- cutting





Application

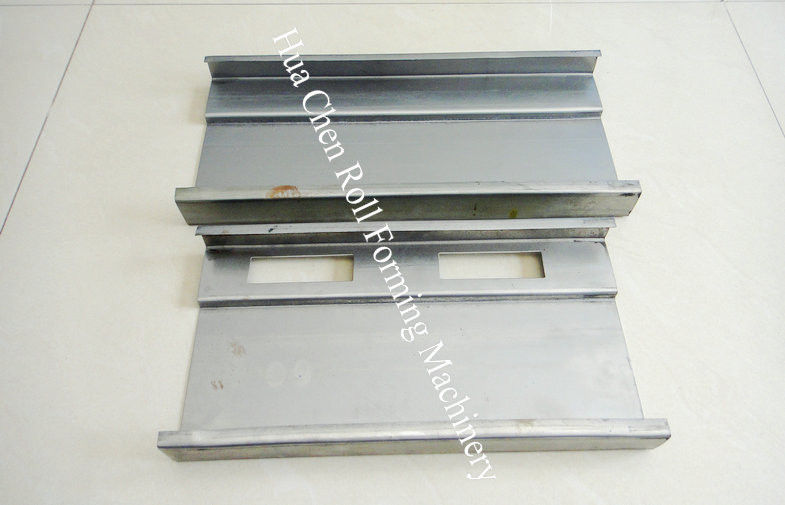

It can be used in the gate,inside door,window frame;nice appearance, durable





Competitive Advantage





1. good service

2. easy installation

3. short delivery time

4. professional design team

5. easy to use
