جزئیات محصول:
|
| Width: | 1250mm | Thickness: | 0.3-0.8mm |
|---|---|---|---|
| Blade: | as require | Power: | 3+3KW |
| Speed: | 8-10m/min | Life time: | 10 years |
| برجسته: | sheet metal cutting machine,automatic pipe cutting machine,automatic pipe cutting machine |
||

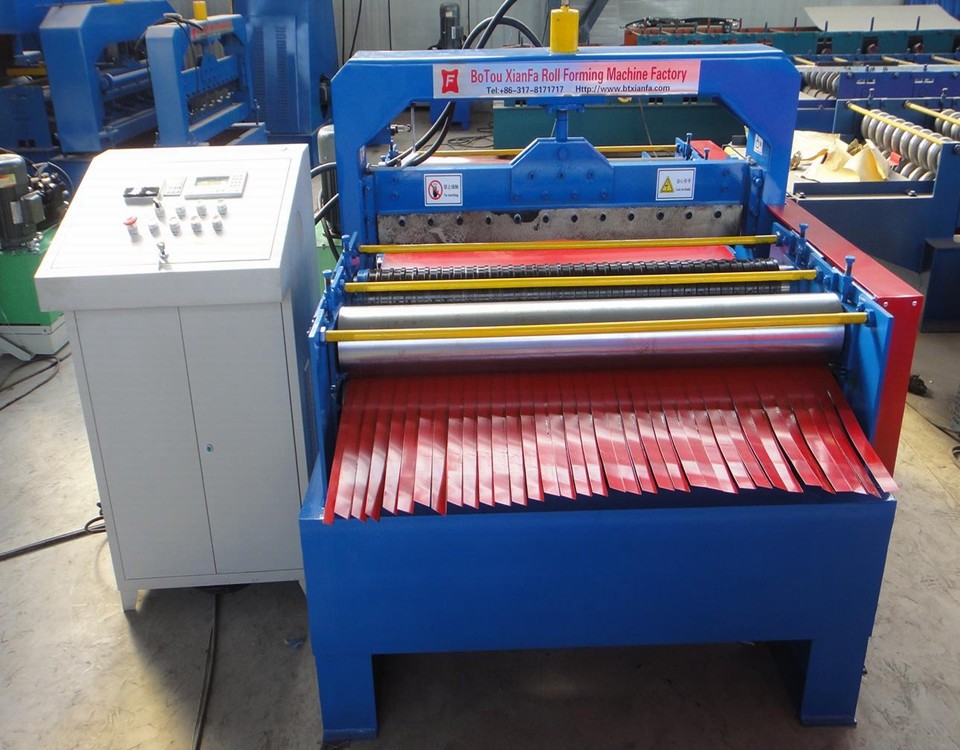

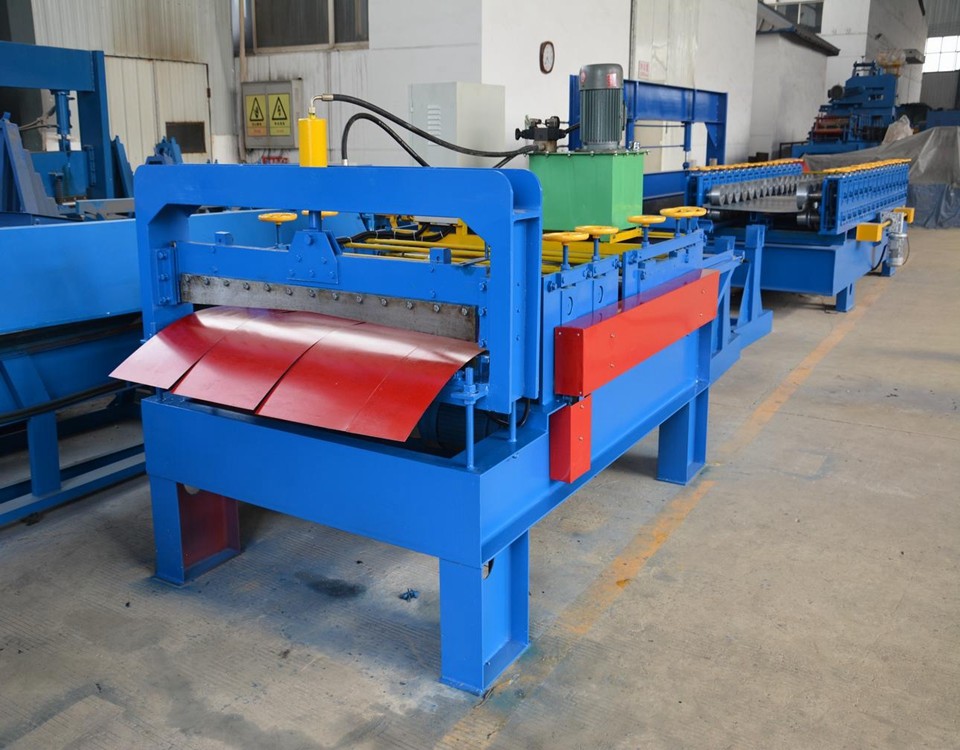

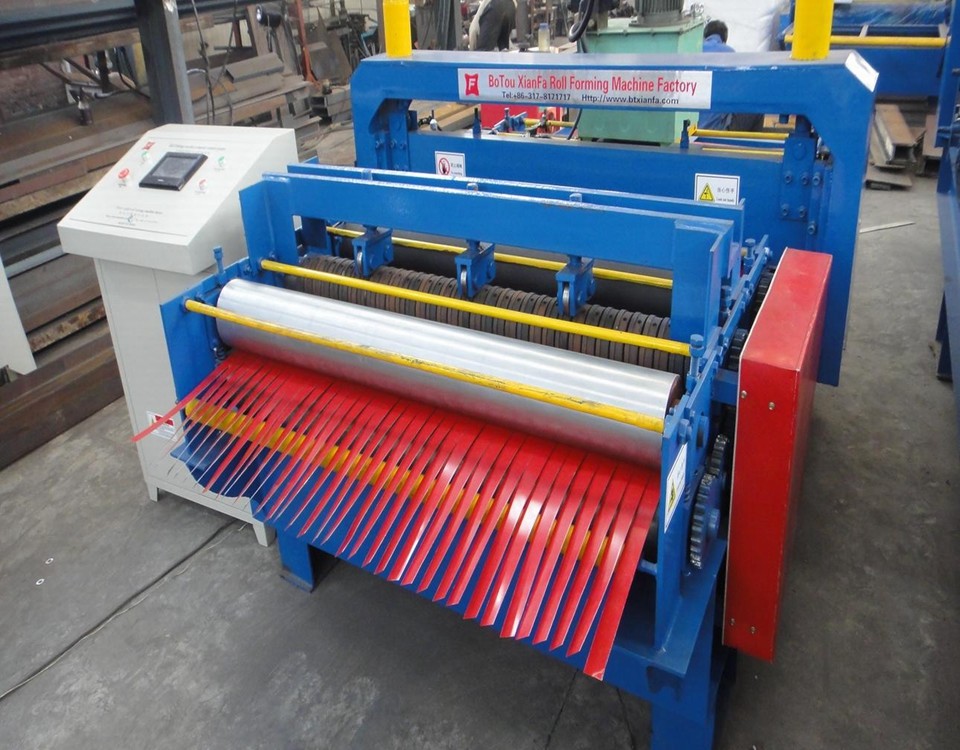

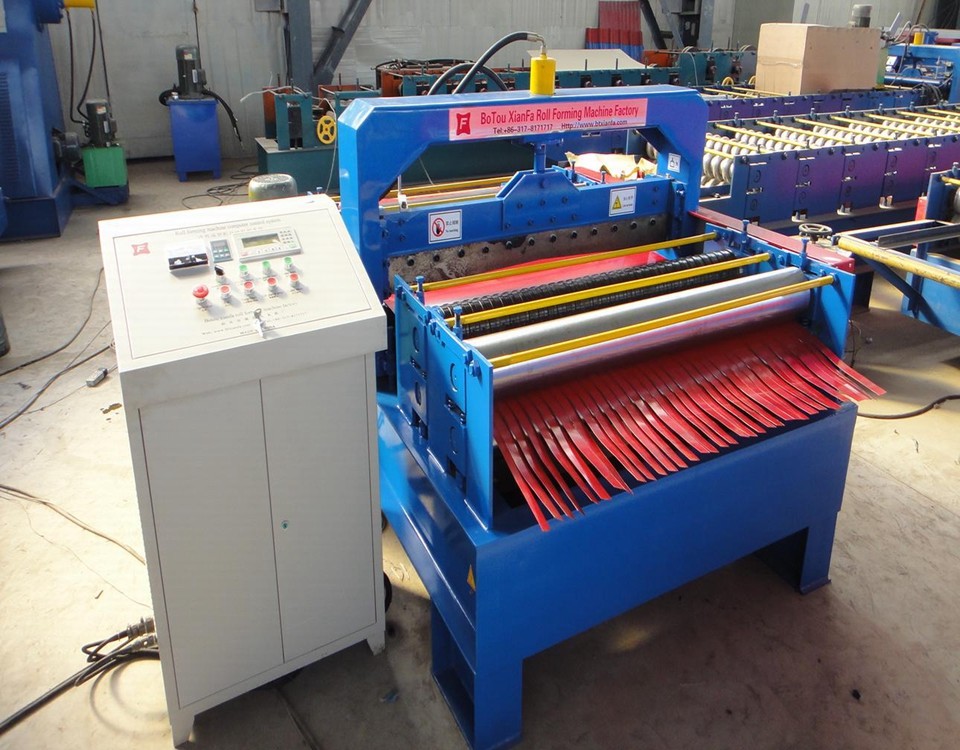

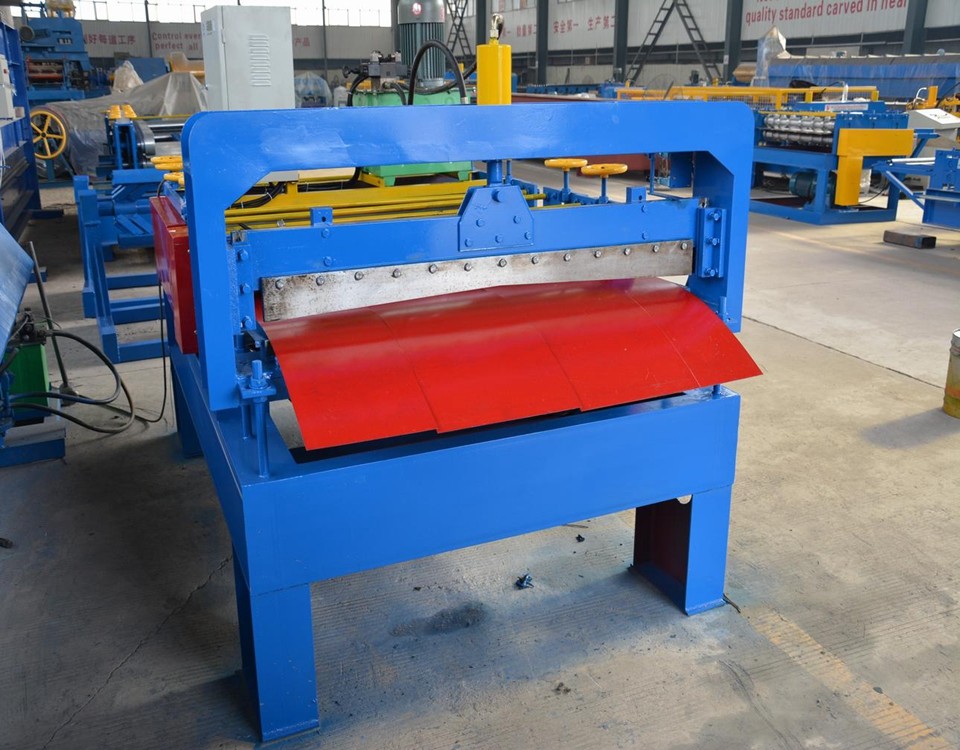

Metal Plate Cutting Machine
Quick Detail:
1. Suitable to process: Color steel plate
2. Width of the plate: 1000-1250mm
3. Rollers: 3 rows
4. Dimensions: 3.5*1.55*1.51m
5. Power: 4+4kw
6. Rolling material: 45# steel(plated chrome on surface)
7. Thickness of the plate:0.3-0.7mm
8. Voltage: 380V 50Hz 3phases
9. Hydraulic: 40#
10. Processing precision: Within 1.00mm
11. Control system: PLC control
Description:
Flatting-Cutting Machine Main parameter
|
No. |
Main parameter of Flatting-Cutting Machine |
|
|
1 |
Suitable to process |
Color steel plate |
|
2 |
Width of the plate |
1000-1250mm |
|
3 |
Rollers |
3 rows |
|
4 |
Dimensions |
3.5*1.55*1.51m |
|
5 |
Power |
4+4kw |
|
6 |
Thickness of the plate |
0.3-0.7mm |
|
7 |
Productivity |
25m/min |
|
8 |
Voltage |
380V 50Hz 3phases |
|
9 |
Hydraulic |
40# |
|
10 |
Processing precision |
Within 1.00mm |
|
11 |
Control system |
PLC control |
Equipment components: Man-made uncoiler-leveling-roll forming machine-computer control system-hydraulic control system-cutting
Application
use for cut the sheet to strips, also use for other accessories.
Competitive Advantage
1. CE certification
2 .ISO certification
3. working life 20 years
4. high quality steel
5. High efficiency
