جزئیات محصول:
|
Usage: | highway guardrail | material: | GI |
---|---|---|---|
Thickness: | 3-4mm | power: | 380V |
free warranty: | 1 year | technical support: | whole life |
برجسته کردن: | sheet metal Forming Machine, sheet metal roll forming machines,sheet metal roll forming machines |

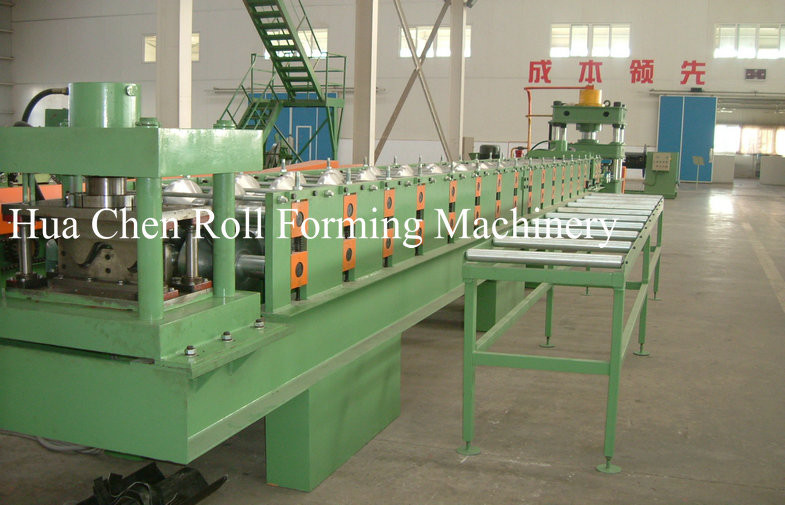

Highway Guardrail R Forming Machine
Quick Detail:
1. Suitable to process: Color steel plate
2. Width of the plate: 550mm
3. Rollers: 24 rows
4. Dimensions: 11.6*1.35*1.51m
5. Power: 22+7.5kw
6. Rolling material: shaft bearing steel(quenching)
7. Thickness of the plate:2.5-3mm
8. Voltage: 380V 50Hz 3phases
9. Material of the cutting plate: Cr12
10. Hydraulic: 40#
11. Processing precision: Within 1.00mm
12. Control system: PLC control
Model number | highway guardrail used roll forming machine |
Rolled material | 2-4mm thickness, General Steel such as Q235 |
Effective width | 350mm |
Feeding width | 488mm |
Forming steps | 16 stations |
Roller | GCR15, quenched treated HRC58-62℃ |
Diameter of shaft | 100mm |
Main motor power | 37 kw |
Pump power | 15 kw |
Drive type | by chains Or by Gear box(worm driving) |
Cutting Blade | Cr12, heat treatment 60-62°C |
Frequency Converter | It has the advantage of slowing down before cutting, to ensure the length accuracy (±1mm, far better than industrial standard ±3mm). |
component | 1 set of manual decoiler,1 set of main roll forming machine,1 set of computer control cabinet,1 set of hydraulic System,1 set of cutting mechanism,1 set of counter,1 set of output table |
Payment terms | cash,T/T,L/C. |
Delivery time | 30 Working days |
Description:
Highway Guardrail R Forming Machine Main parameter
No. |
Main parameter of Highway Guardrail R Forming Machine |
|
1 |
Suitable to process |
Color steel plate |
2 |
Width of the plate |
550mm |
3 |
Rollers |
24 rows |
4 |
Dimensions |
110600*1350*1510mm |
5 |
Power |
33+7.5kw |
6 |
Rolling material |
shaft bearing steel(quenching) |
6 |
Thickness of the plate |
2.5-3mm |
7 |
Productivity |
8-10m/min |
8 |
Diameter of the roller |
Φ100mm |
9 |
Voltage |
380V 50Hz 3phases |
10 |
Material of the cutting plate |
Cr12 |
11 |
Hydraulic |
40# |
12 |
Processing precision |
Within 1.00mm |
13 |
Control system |
PLC control |
Equipment components: Man-made uncoiler-leveling-roll forming machine-computer control system-hydraulic control system-punching-cutting
Before ordering:
We can help to analyze the roof tile in your market. Which one is popular and which one will be popular.
Then your product is hot sale roof tile .
We can confirm all details of the roof tile roll forming machine together, including the drawing, thickness of
material, hardness of the steel coil, the input width of the steel coil, capacity of the roll forming machine.
We can help you to find the real manufacturer of steel coil manufacturer. Say bye to Trade company. So you can
order the material coil with lowest price.
During production:
We can send the pictures to show you the schedule of your roll forming machines.
We will show you my blogger account for you to learn knowledge of roll forming machine if you would like
We will ask you what color of the roll forming machine body. Produce the machine under your suggestion
After-sale service:
We supply one year guarantee for the machine. The parts of the roll forming machine are free to send you and
you will pay the cost of freight. And you can aslo solve it if you ordered more parts for your rol forming machine
We supply all life tech support of our roll forming machines, Any questions, you can contact me by whatsapp +86 18233766102
