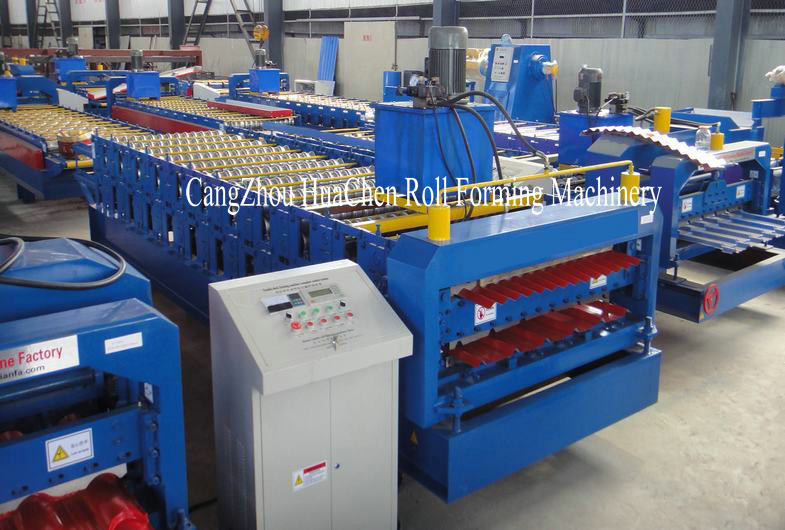

Automatic Galvanized Steel Double Layer Roll Forming Machine with 380V 50Hz

Automatic Galvanized Steel Double Layer Roll Forming Machine with 380V 50Hz
Automatic Galvanized Steel Double Layer Roll Forming Machine with 380V 50Hz
Automatic Galvanized Steel Double Layer Roll Forming Machine with 380V 50Hz Automatic Galvanized Steel Double Layer Roll Forming Machine with 380V 50Hz Automatic Galvanized Steel Double Layer Roll Forming Machine with 380V 50Hz Automatic Galvanized Steel Double Layer Roll Forming Machine with 380V 50Hz Automatic Galvanized Steel Double Layer Roll Forming Machine with 380V 50Hz Automatic Galvanized Steel Double Layer Roll Forming Machine with 380V 50Hz

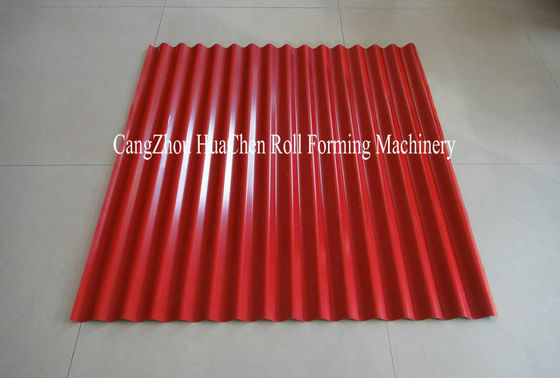

تصویر بزرگ :  Automatic Galvanized Steel Double Layer Roll Forming Machine with 380V 50Hz

جزئیات محصول:
محل منبع: Botou Hebei China
نام تجاری: HC
گواهی: ISO
شماره مدل: HC22/16
پرداخت:
مقدار حداقل تعداد سفارش: 1set
قیمت: 15000-39000USD
جزئیات بسته بندی: Main machine is nude,the computer control box is packed by carton box
زمان تحویل: 30days
شرایط پرداخت: 30% deposit by T/T in advance and 70% balance after inspection confirmation before shipment
قابلیت ارائه: 20 sets/month

Automatic Galvanized Steel Double Layer Roll Forming Machine with 380V 50Hz

شرح
برجسته:

sheet metal roll forming machines,corrugated roll forming machine

,

corrugated roll forming machine

Automatic Galvanized Steel Double Layer Roll Forming Machine with 380V 50Hz





1.Working Flow:



20m/min High Speed Double Layer Roll Forming Machine For Wave And IBR Roof

double sheet forming machine.jpg

Manual Uncoiler- Roll Forming Machine - Computer Control System - Hydraulic Control System - Cutting





Quick Detail:



20m/min High Speed Double Layer Roll Forming Machine For Wave And IBR Roof



1. Suitable to process: Color steel plate

2. Width of the plate: 1220mm

3. Rollers: 12/12 rows

4. Dimensions: 7.2*1.55*1.91m

5. Power: 4+4kw

6. Rolling material: high grade 45# steel(plated chrome on surface)

7. Thickness of the plate:0.3-0.6mm

8. Voltage: 380V 50Hz 3phases

9. Material of the cutting plate: Cr12

10. Hydraulic: 40#

11. Processing precision: Within 1.00mm

12. Control system: PLC control





Description:



20m/min High Speed Double Layer Roll Forming Machine For Wave And IBR Roof

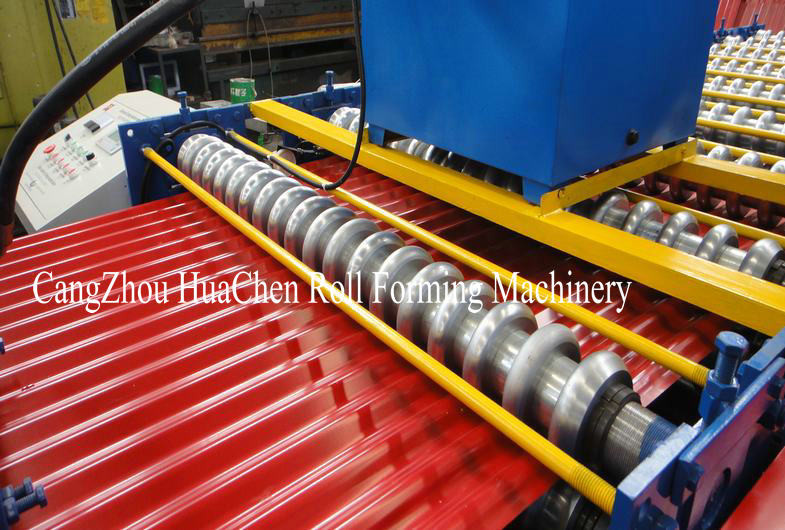

Automatic Galvanized Steel Double Layer Roll Forming Machine with 380V 50Hz 1



Double layer roll forming machine Main parameter

No.

 Main parameter of Double layer roll forming machine



1

Suitable to process

Color steel plate

2

Width of the plate

1220mm

3

Rollers

upper level :12 rows

Down level :12 rows

4

Dimensions

7200*1550*1910mm

5

Power

4+4kw

6

Rolling material

high grade 45# steel(plated chrome on surface)

6

Thickness of the plate

0.3-0.6mm

7

Productivity

20m/min

8

Diameter of the roller

Φ70mm

9

Voltage

380V 50Hz 3phases

10

Material of the cutting plate

Cr12

11

Hydraulic

40#

12

Processing precision

Within 1.00mm

13

Control system

PLC control

Equipment components: Man-made uncoiler-roll forming machine-computer control system-hydraulic control system- cutting





Application

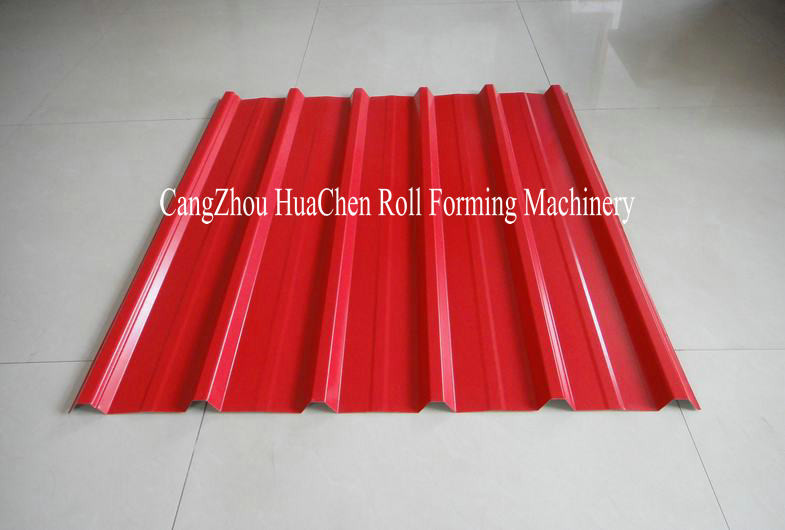

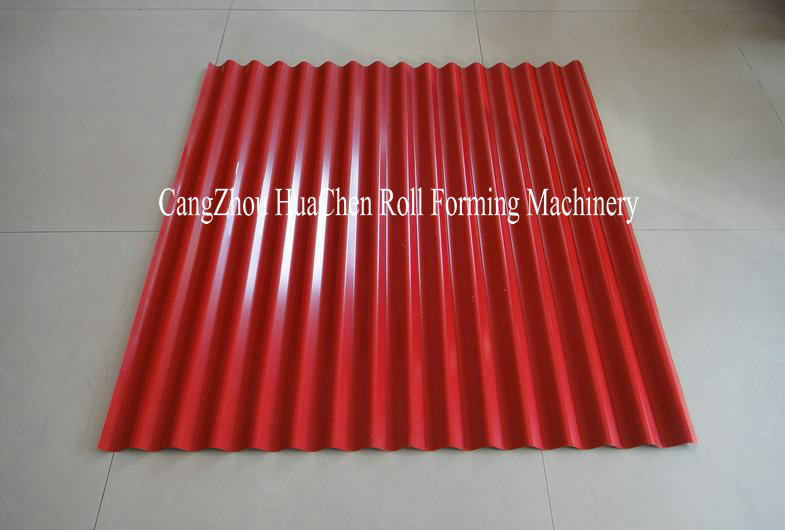

This kind of machine make two types of tile together perfectly, it has reasonable structure, beautiful appearance, with advantage of saving space, easy operate and especially welcomed by the customer  with limit area or site

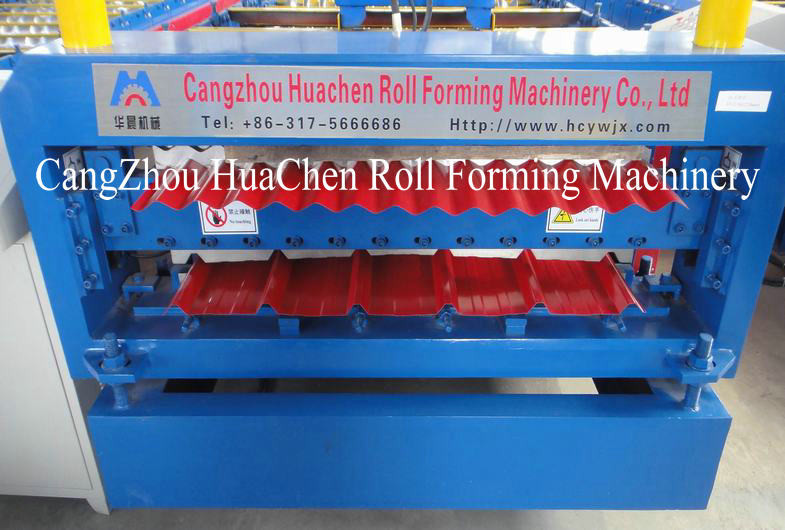

Automatic Galvanized Steel Double Layer Roll Forming Machine with 380V 50Hz 2

Automatic Galvanized Steel Double Layer Roll Forming Machine with 380V 50Hz 3





Competitive Advantage



1. sample customized

2. short production cycle

3. quality guarantee

4. high-effect, low consume

5. provide lifelong technical support
