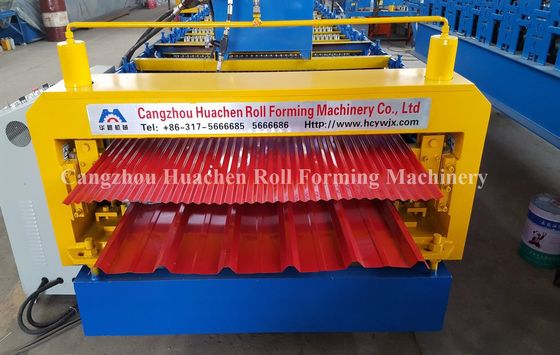

PLC Frequency Control Double Layer Roll Forming Machine , Roofing Sheet Roll Forming Lines Automatic

PLC Frequency Control Double Layer Roll Forming Machine , Roofing Sheet Roll Forming Lines Automatic
PLC Frequency Control Double Layer Roll Forming Machine , Roofing Sheet Roll Forming Lines Automatic
PLC Frequency Control Double Layer Roll Forming Machine , Roofing Sheet Roll Forming Lines Automatic PLC Frequency Control Double Layer Roll Forming Machine , Roofing Sheet Roll Forming Lines Automatic

تصویر بزرگ :  PLC Frequency Control Double Layer Roll Forming Machine , Roofing Sheet Roll Forming Lines Automatic

جزئیات محصول:
Place of Origin: Botou Hebei China
نام تجاری: HC
گواهی: ISO/CE
Model Number: HC8/25
پرداخت:
Minimum Order Quantity: 1set
قیمت: 15000-39000USD
Packaging Details: Main machine is nude,the computer control box is packed by carton box
Delivery Time: 30days
Payment Terms: 30% deposit by T/T in advance and 70% balance after inspection confirmation before shipment
Supply Ability: 20 sets/month

PLC Frequency Control Double Layer Roll Forming Machine , Roofing Sheet Roll Forming Lines Automatic

شرح
color: blue type: automatic
control system: PLC control cutting method: hydraulic cut
working speed: 8-10m/min per month: 30 sets
برجسته:

metal roll forming machine,corrugated roll forming machine

,

corrugated roll forming machine

PLC Frequency Control Double Layer Roll Forming Machine , Roofing Sheet Roll Forming Lines Automatic



Machine’s Feature: One machine can make two kinds of profile. Client’s profile available.



Technical data of double layer roll forming machine

Suitable material Q235 color steel sheet;0.3-0.7mm,
Forming speed about 20m/min
Power Requirement Main motor power: 7.5 Kw(Depend on final design)
Hydraulic station power: 2.2Kw(Depend on final design)
Material of forming rollers No.45 steel, plated with chrome on sureface.
Material of cutter Cr12 mould steel with quench treatment, HRC58-60
Material of shaft

High quality 45# steel with heat treatment.

Roller grinder milling.

Shaft diameter 72mm
Controlling system Mitsubishi PLC & converter
Total weight of machine About 6500KGS
Machine’s size about 7.5m×1.8m× 1.5m (Depend on final design)
Shipping 1x40GP  can load one machine



Product application of double layer roll forming machine:

The product from this roll forming machine are widely used roof or wall of fabrication building, such as the roof of garden, factory, hotel, exhibition center and villa,etc.

PLC Frequency Control Double Layer Roll Forming Machine , Roofing Sheet Roll Forming Lines Automatic 0PLC Frequency Control Double Layer Roll Forming Machine , Roofing Sheet Roll Forming Lines Automatic 1



Our Metal Double layer Roll Forming Machine’s advantages



1. Anti-rust roller: CNC machine tooled, Plated with 0.05mm hard chrome .



2. Heat treatment: Heat treatment for cutting frame to remove the steel stress, to avoid deformation.



3. Cutter blade: Cr12 mould steel with quenched treatment, long life time.



4. High precision: shafts for rollers are tooled by grinding machine at least twice. Rollers are CNC processed to ensure precision performance.



5. People originate: introduced Mitsubishi PLC with touch screen. Friendly man-machine interaction.



6. Excellent services: Technician can be sent to your factory to install the machine and train your workers. Lifttime services for our machines.



7. All-in-house source: We are "All-in-house source" factory to ensure quality and delivery of your machines.



8. Long life: Ensure you our produce machine’s lifetime more than 15 years.



Certificate: ISO 9001, CE,
