Trapezoidal Metal Roofing Sheet Roll Forming Machine Roof Panel Roll Forming Machine

Trapezoidal Metal Roofing Sheet Roll Forming Machine Roof Panel Roll Forming Machine
Trapezoidal Metal Roofing Sheet Roll Forming Machine Roof Panel Roll Forming Machine
Trapezoidal Metal Roofing Sheet Roll Forming Machine Roof Panel Roll Forming Machine Trapezoidal Metal Roofing Sheet Roll Forming Machine Roof Panel Roll Forming Machine

تصویر بزرگ :  Trapezoidal Metal Roofing Sheet Roll Forming Machine Roof Panel Roll Forming Machine

جزئیات محصول:
محل منبع: China
نام تجاری: HC
گواهی: ISO CE
شماره مدل: HC30
پرداخت:
مقدار حداقل تعداد سفارش: 1set
قیمت: USD8000-15000
جزئیات بسته بندی: 1.Main roll forming machine and un-coiler is nude packing (If you need, we can also packed it with water-proof plastic) 2. PLC control system and motor pump are packed with water proof paper,spare parts in carton box. 3.One set of machine needs a 40' con
زمان تحویل: 30 work days
شرایط پرداخت: D/A, Western Union, L/C, T/T
قابلیت ارائه: 20 sets per month

Trapezoidal Metal Roofing Sheet Roll Forming Machine Roof Panel Roll Forming Machine

شرح
Material: PPGi GI capacity: 20m/min
machine weight: 4.5T rollers: 45# steel
Type: Roof Sheet Roll Forming Equipment cutting blade: Cr12
برجسته:

roof tile roll forming machine,roof panel roll forming machine

,

roof panel roll forming machine



Double layer Full Automatic Roof Sheet Roll Forming Machine

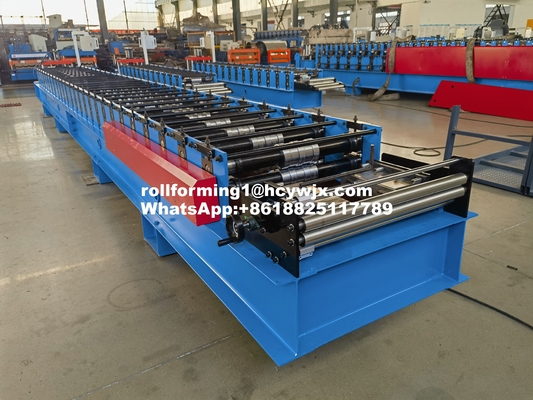

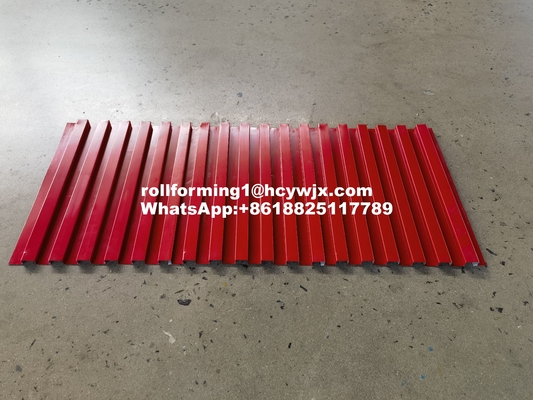

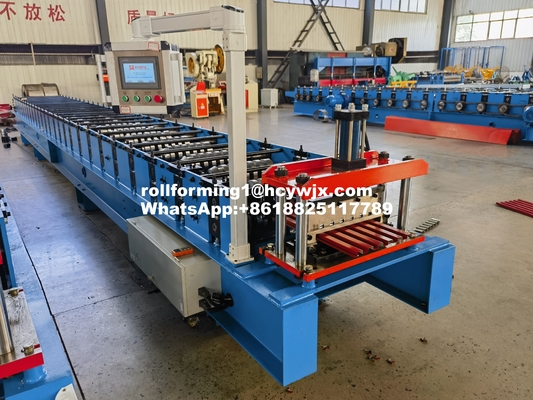

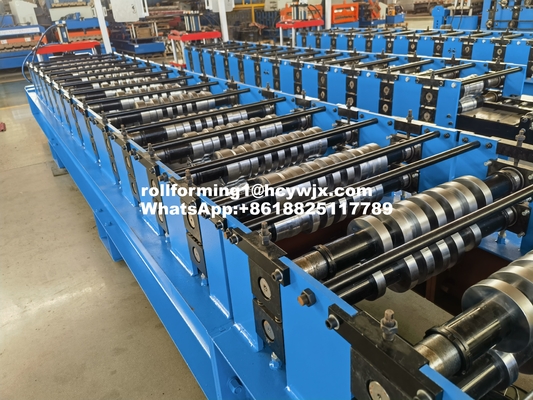

1. Roof Panel Roll Forming Machine Photos

Trapezoidal Metal Roofing Sheet Roll Forming Machine Roof Panel Roll Forming Machine 1Trapezoidal Metal Roofing Sheet Roll Forming Machine Roof Panel Roll Forming Machine 2



2. Processing flow diagram of our roof roll forming machine

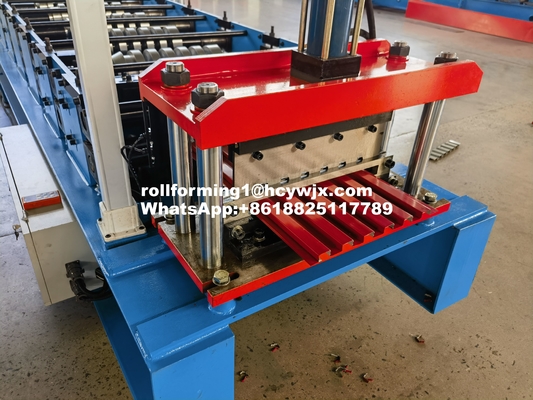

Manual decoiler→→ Feeding material into machine →Roll forming machine →Measure length→Hydraulic cutting →Finished Products



Trapezoidal Metal Roofing Sheet Roll Forming Machine Roof Panel Roll Forming Machine 3



3. Technical parameters about roof roll forming machine

Trapezoidal Metal Roofing Sheet Roll Forming Machine Roof Panel Roll Forming Machine 1





ROOF PANEL ROLL FORMING MACHINE

1 Suitable to process Color steel
2 Width of the raw material 1200
3 Output width 1000
4 Rollers 16 rows
5 Power 4kw+4kw
6 Thickness of the plate 0.3-0.8mm
7 Productivity

12-15m/min or

25-35m/min by hydraulic motor

8 Diameter of the roller 72mm
9 Weight About 4 T
10 Voltage 380V 50Hz 3phase
11 Received table 4 meters
12 Raw material of the cutter Cr12
13 Raw material of the roller

Bearing steel



FAQ



1. You are the manuafacturer or trading company ?

A: We are the professional manufacturer , and we have more than 20 years professional experiece in the field of roll forming machine.

2. Can you make the machine according to my design or photo type?

A: Yes. We have an experienced team to work out the most suitable design and production plan

for the machine.
3. How can we be assured that you will deliver us quality machine with spare parts?

A:1. Customers to send the technical people to our factory for checking the quality.

2.We can send the technicians to the buyer`s factory for the installation of the machine.
4.What policy of your garentee?

A: Within the One-YEARS period, we could supply you the replacement parts free of charge

for any damaged parts caused by quality problems after two years,you need to buy by factory cost.
