PLC control 16 Roller Shutter Door / door frame roll forming machine

گواهی
چین Cangzhou Huachen Roll Forming Machinery Co., Ltd. گواهینامه ها
چین Cangzhou Huachen Roll Forming Machinery Co., Ltd. گواهینامه ها
نظرات مشتریان
ماشین آسان برای استفاده. رئیس بسیار خوب است

—— آقای آنگولون از اروپا

این سازنده خوب، یک ارتباط خوب انگلیسی است و من ماشین های شما را دوست دارم. این کیفیت خوب و زیبا است!

—— Mr.Mark از آفریقا

تهیه کننده خوب! من تحویل سریع و چرخه تولید سریع خود را می خواهم، با شما تماس می گیرم.

—— Mr.Jack از امریکا

چت IM آنلاین در حال حاضر

PLC control 16 Roller Shutter Door / door frame roll forming machine

PLC control 16 Roller Shutter Door / door frame roll forming machine
PLC control 16 Roller Shutter Door / door frame roll forming machine

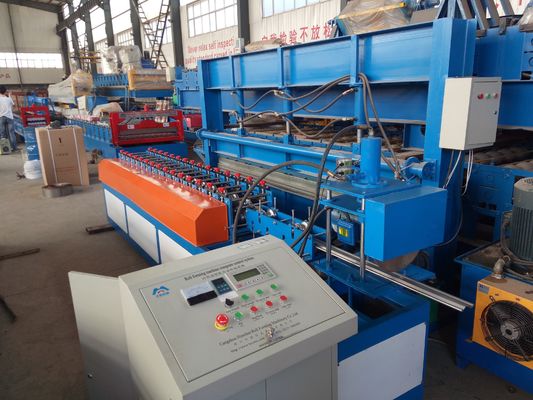

تصویر بزرگ :  PLC control 16 Roller Shutter Door / door frame roll forming machine

جزئیات محصول:
Place of Origin: Botou Hebei China
نام تجاری: HC
گواهی: ISO/CE
Model Number: HC85
پرداخت:
Minimum Order Quantity: 1set
قیمت: 5000-19000USD
Packaging Details: Main machine is nude,the computer control box is packed by carton box
Delivery Time: 30days
Payment Terms: 30% deposit by T/T in advance and 70% balance after inspection confirmation before shipment
Supply Ability: 20 sets/month

PLC control 16 Roller Shutter Door / door frame roll forming machine

شرح
type: automatic control system: PLC control
cutting method: fly saw cutting speed: 8-10m/min
برجسته:

steel roll forming machine,door frame roll forming machine

,

door frame roll forming machine

shutter door cold forming machine





a. Main technical parameter:



Suitable plate 0.4-1.5mm Alum or steel
Working speed 10-12m/min
Stations 16sets of rollers
Material of roller 45# advanced steel, plated hard chrome
Material of shaft 45# advanced steel(Diameter: Ø40)
Driven Gear box
Main power 7.5kw
Cutting pneumatic following cutting
Material of cutting knife Cr12,Quench HRC 58-62
Hydraulic Cutting blade 3kw
controlled PLC




Roller Material High grade No.45 forged steel, coated with hard chrome.
Active Shaft Material High grade No.45 carbon wrought steel,
Electric Elements PLC control panel, transducer imported from Mitsubishi of Japan.
Cutter blades Cr12 mould steel with quenched treatment.
other elements from famous supplier in china



Roller Material High grade No.45 forged steel, coated with hard chrome.
Active Shaft Material

High grade No.45 carbon wrought steel,

which can improve the integrated mechanic feature of the shaft.

Electric Elements

PLC control panel, transducer imported from Mitsubishi of Japan.

Other elements are from famous suppliers of China.

Cutter blades Cr12 mould steel with quenched treatment.



Terms

Payment type: 30% T/T prepaid and balance should be paid before loading
Delivery time: 30days after receving advance payment.
Guarantee period: 18months free service/ pay service all the machine life
Installation and training:
If buyers visit our factory and check the machine, we will teach you how to install and use the machine, and also train your workers/technician face to face.
Without visiting,we will send you user manual and video to teach you to install and operate.

PLC control 16 Roller Shutter Door / door frame roll forming machine 0



PLC control 16 Roller Shutter Door / door frame roll forming machine 1



PLC control 16 Roller Shutter Door / door frame roll forming machine 2
