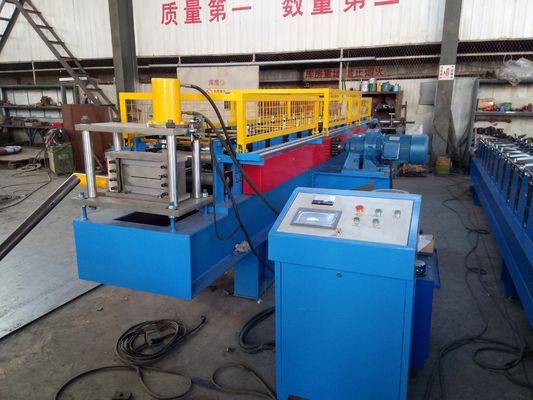

Width Adjustable Steel L Profile Cold Roll Forming Equipment With Yellow Safe Cover

Width Adjustable Steel L Profile Cold Roll Forming Equipment With Yellow Safe Cover
Width Adjustable Steel L Profile Cold Roll Forming Equipment With Yellow Safe Cover

تصویر بزرگ :  Width Adjustable Steel L Profile Cold Roll Forming Equipment With Yellow Safe Cover

جزئیات محصول:
Place of Origin: Botou Hebei China
نام تجاری: HC
گواهی: ISO
Model Number: HC170
پرداخت:
Minimum Order Quantity: 1set
قیمت: 12000-38000
Packaging Details: Main machine is nude,the computer control box is packed by carton box
Delivery Time: 30days
Payment Terms: 30% deposit by T/T in advance and 70% balance after inspection confirmation before shipment
Supply Ability: 20 sets/month

Width Adjustable Steel L Profile Cold Roll Forming Equipment With Yellow Safe Cover

شرح
Usage: Stud and track Type: Cold roll forming machine
Thickness: 1-2mm Capacity: 10m/min
Power: 4.5+3kw
برجسته:

metal roll forming machines,Plate roll forming machine

,

Plate roll forming machine

Width adjustable steel L profile cold roll forming machine with yellow safe cover



Product Description



Machine Description Quantity Delivery time Container Type



light weight steel frame automatic c channel roll forming machine 1 SET

45 working days

after receiving deposit

One 20GP



light weight steel frame automatic c channel roll forming machine Process Flow:

Uncoiling→Feeding material into machine→Roll forming→Measuring length→ Auto cutting→Products receiving



Product name light weight steel frame automatic c channel roll forming machine
NO. Items Parameters Remark
1

Suitable

Material

Type GI/PPGI/AL
    Thickness 1-2mm
2

Product

Specifications

Length Any length
    Length Tolerance ±2mm/6m
3 Working Speed 10 m/min Standard machine
4 Control System Mitsubishi/Siemens PLC& transducer Custom
5 Total Power 6KW
6 Total Weight About 3T Up to final design





Components of ceiling c channel forming machine :

No. Name Unit Qty
1 Manual decoiler set 1
2 Main forming machine set 1
3 PLC control system set 1
4 Hydraulic pump station set 1
5 Post cut set 1
6 Electric motor set 1
7 Output table set 1


Width Adjustable Steel L Profile Cold Roll Forming Equipment With Yellow Safe Cover 0Width Adjustable Steel L Profile Cold Roll Forming Equipment With Yellow Safe Cover 1Width Adjustable Steel L Profile Cold Roll Forming Equipment With Yellow Safe Cover 2

Forming device

Usage: In order to keep the product shape and precision, adopts welded sheet structure, motor reducer drive, chain

transmission,roller was chromed which can keep the molding plate surface smooth and not easy to be marked when

it is working

Feature : Ensure stability , precision and lifetime.



No. Main parameter of ceiling c channel forming machine
1 Length of the main part 3000*800*1400mm
2 Weight of main part About 3 t
3 Voltage 380V/50HZ3Phase (as customer’s request)
4 Roller fixer Guide column
5 Frame

Middle plate welded

Memorial arch frame type

6 Frame thickness 25mm
7 Drive mode Gear or chain
8 Material of rollers 45# steel with tempering
9 Material of shafts 45# steel with tempering
10 Diameter of shafts φ80mm
11 Number of rollers 15 rollers
Our Services



1. Installation and training:
a.If buyers visit our factory and check the machine, we will teach you how to install and use the machine, and also tr

ain your workers/technician face to face.
b.Without visiting, we will send you user manual and video to teach you to install and operate.
C.If buyer needs our technician to go to your local factory, please arrange board and lodging and other necessary th

ings.

2. After Service

a.One year guarantee for whole machine.

b.24 hours technical support by email or calling

c.If there is any problem found of the machine, we will repair it for free in one year.
