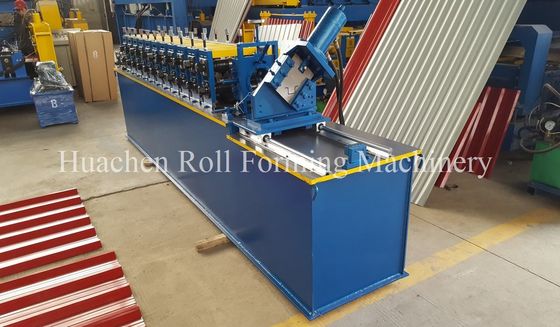

Metal Stud C Channel Cold Roll Forming Machine Prices/ c light keel steel machine
Technology parameter of metal stud light keel cold roll forming machine
| No. |
Main Parameter of keel roll forming machine |
| 1 |
Suitable to process |
Color steel plate |
| 2 |
Rollers |
10 rows |
| 3 |
Dimensions |
5500*1000*1300mm |
| 4 |
Power |
5.5+4kw |
| 5 |
Thickness of the plate |
7-1.2mm |
| 6 |
Productivity |
0-35m/min |
| 7 |
Diameter of the shaft |
∅50mm |
| 8 |
Material of the roller |
Cr12 Mov |
| 9 |
Control system |
integrated circuit |
| 10 |
Material of the shaft |
high grade 45# steel ,heated and quenched ,cylindrical grinding |
Producing process:
Decoiler -active feeding-forming -caculate length --automatic cutting --product
Q: Do you have after sales support?
A: Yes, we are happy to give advice and we also have skilled technicians available, We need your machines running in order to keep your business running.
Q: Once we've bought a machine from you, are you able to supply us with material?
A: We can assist you in finding the appropriate materials to suit your machine
Q: Do you sell only standard machines?
A: No, most of our machines are built according to customers specifications, using top brand name components
Q: What size decoiler can you supply us with?
A: From 5-ton decoiler to a 25-ton motorised hydraulic decoiler
Q: Do you have a warranty on your machines?
A: One year warranty excluding electrical components.
Q: What sales terms do you have?
A: Terms mutually agreed on and we do accept Letter of Credit by pre arrangement.
Q: Do you have instruction manuals?
A: We provide you with instruction manuals, electricity layouts, civil requirements, and machine drawings
Q: Once a machine arrives at our factory what happens then?
A: We will send you a technician or engineer that will commission and install your machine, with training for your staff if required at a separate fee.
Q: What do I need to offload my machine from the container?
A: You are not responsible for the offloading of your machinery, and it is recommended that you use a reputable rigging company.
Q: My current machine rollers need to be replaced. Would you be able to assist me?
A: Yes. Send us your profile and specifications then we will manufacture the rollers for you
Q: What kind of controls do you use on your machines?
A: AMS, Delta, Schneider, Siemens, and Mitsubishi
Q: What is your delivery time?
A: Depending on the type of machine, duration of 25 days to 185 days from date of order.
Q: Do we receive any updates while machine is in the manufacturing process?
A: Yes.Regular updates on progress will be sent to you.
