W Shaped Auto Cr12 Steel Sheet Metal Roll Forming Machines ISO Certification
Quick Detail:
1. Suitable to process: Color steel plate
2. Width of the plate: 550mm
3. Rollers: 24 rows
4. Dimensions: 11.6*1.35*1.51m
5. Power: 22+7.5kw
6. Rolling material: shaft bearing steel(quenching)
7. Thickness of the plate:2.5-3mm
8. Voltage: 380V 50Hz 3phases
9. Material of the cutting plate: Cr12
10. Hydraulic: 40#
11. Processing precision: Within 1.00mm
12. Control system: PLC control
5,Description:
Highway Guardrail R Forming Machine Main parameter
|
No. |
Main parameter of Highway Guardrail R Forming Machine |
|
|
1 |
Suitable to process |
Color steel plate |
|
2 |
Width of the plate |
550mm |
|
3 |
Rollers |
24 rows |
|
4 |
Dimensions |
110600*1350*1510mm |
|
5 |
Power |
33+7.5kw |
|
6 |
Rolling material |
shaft bearing steel(quenching) |
|
6 |
Thickness of the plate |
2.5-3mm |
|
7 |
Productivity |
8-10m/min |
|
8 |
Diameter of the roller |
Φ100mm |
|
9 |
Voltage |
380V 50Hz 3phases |
|
10 |
Material of the cutting plate |
Cr12 |
|
11 |
Hydraulic |
40# |
|
12 |
Processing precision |
Within 1.00mm |
|
13 |
Control system |
PLC control |

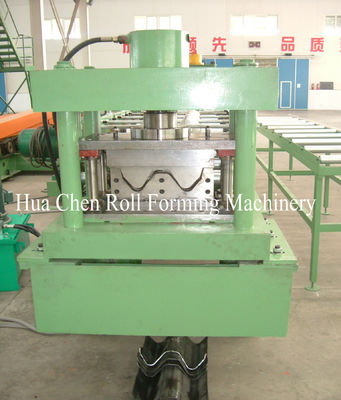

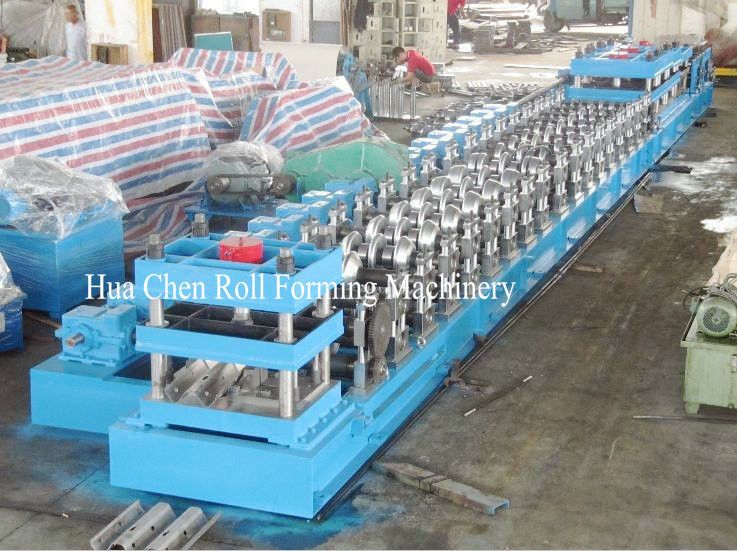

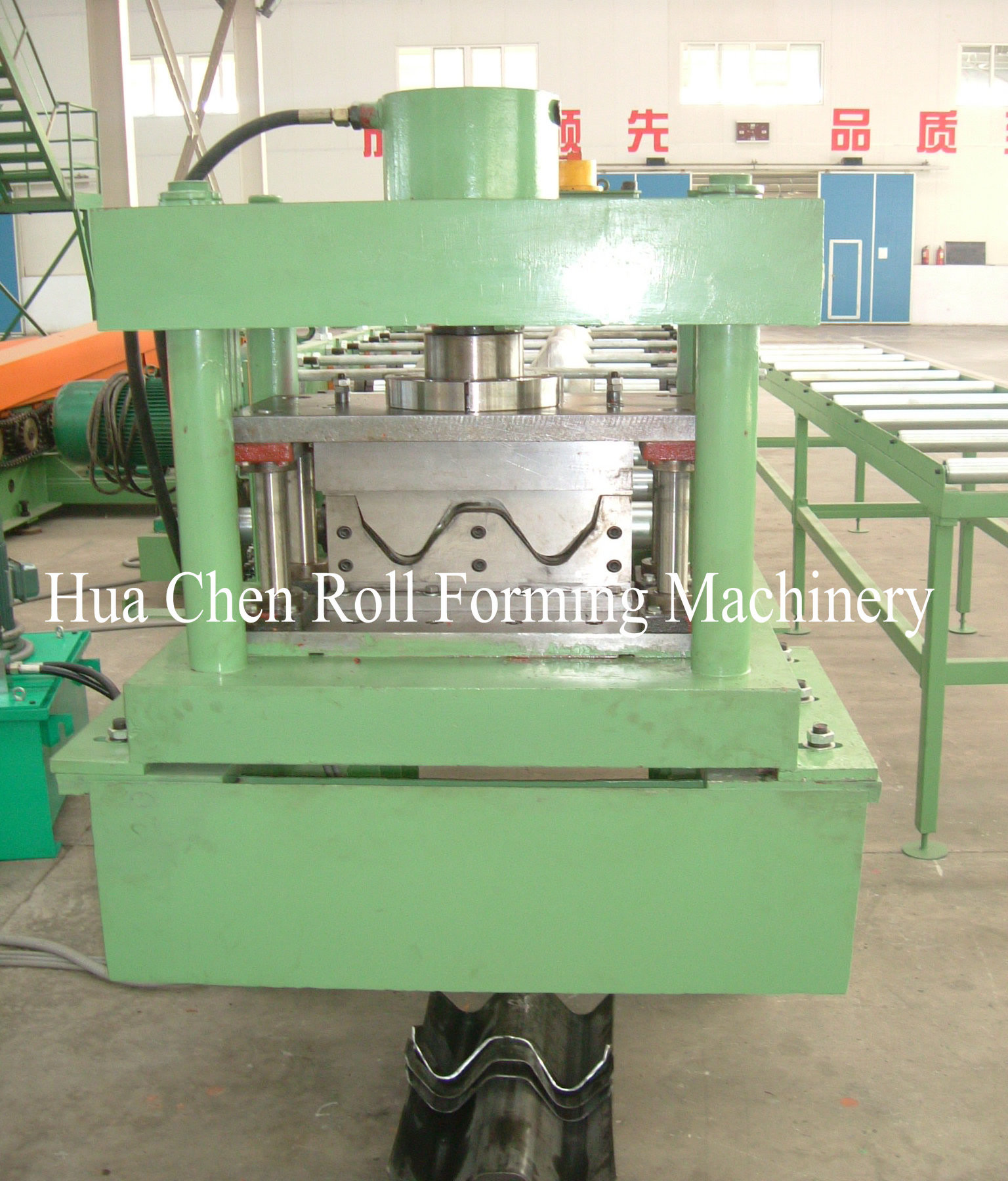

Equipment components: Man-made uncoiler-leveling-roll forming machine-computer control system-hydraulic control system-punching-cutting
Competitive Advantage
1. ISO certification
2. CE certification
3. PLC Panasonic
4. One year free warranty
5. Low loss, easy operate
