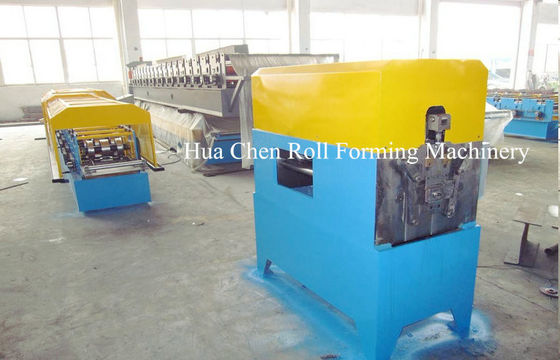

Metal Gutter Shaping Machine Downspouts cold roll forming Machine For Sale from china manufacturer

Metal Gutter Shaping Machine Downspouts cold roll forming Machine For Sale from china manufacturer
Metal Gutter Shaping Machine Downspouts cold roll forming Machine For Sale from china manufacturer Metal Gutter Shaping Machine Downspouts cold roll forming Machine For Sale from china manufacturer Metal Gutter Shaping Machine Downspouts cold roll forming Machine For Sale from china manufacturer Metal Gutter Shaping Machine Downspouts cold roll forming Machine For Sale from china manufacturer

تصویر بزرگ :  Metal Gutter Shaping Machine Downspouts cold roll forming Machine For Sale from china manufacturer

جزئیات محصول:
محل منبع: Botou Hebei China
نام تجاری: HC
گواهی: ISO
شماره مدل: HC330
پرداخت:
مقدار حداقل تعداد سفارش: 1set
قیمت: 28000-69000USD
جزئیات بسته بندی: Main machine is nude,the computer control box is packed by carton box
زمان تحویل: 30days
شرایط پرداخت: 30% deposit by T/T in advance and 70% balance after inspection confirmation before shipment
قابلیت ارائه: 20 sets/month

Metal Gutter Shaping Machine Downspouts cold roll forming Machine For Sale from china manufacturer

شرح
Material: DX51 Thickness: 0.4-0.6mm
Capacity: 10m/min Type: Square
warranty: 1 year life time: 10 years
برجسته:

Down pipe roll forming machine, pipe roll forming machine

,

pipe roll forming machine

Metal Gutter Shaping Machine Downspouts cold roll forming Machine For Sale from china manufacturer

Techical description



Material thickness 0.4-0.8mm
Roll speed 8-12m/min
Roll steps 14
Main motor power 4 KW
Shaft diameter 80mm
Material of roller 45# steel polished and coated with chrome HRC55-60°
Material of bearing high grade No.45 steel after treatment
Material thickness 0.3-0.8mm

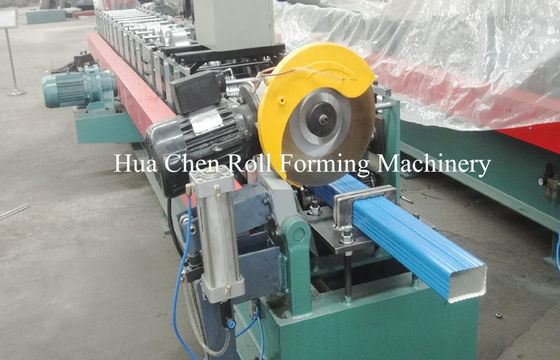

Mode of cutting Hydraulic cutting or flying saw
Material of scissors Cr12 steel after treatment

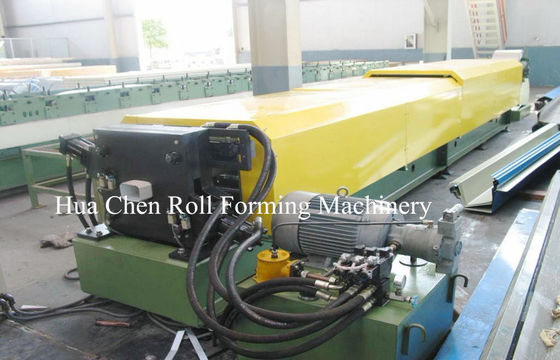

Hydraulic station power 3 Kw
Control system PLC Frequency Control System with touch screen
Computer cabinet size 700mm*1000mm*300m



Quick Detail:



1. Suitable to process: Color steel plate

2. Width of the plate: 330mm

3. Rollers: 15 rows

4. Dimensions: 7.4*1.15*1.51m

5. Power: 5.5+4kw

6. Rolling material: high grade 45# steel(plated chrome on surface)

7. Thickness of the plate:0.3-0.6 mm

8. Voltage: 380V 50Hz 3phases

9. Material of the cutting plate: Cr12

10. Hydraulic: 40#

11. Processing precision: Within 1.00mm

12. Control system: PLC control

Metal Gutter Shaping Machine Downspouts cold roll forming Machine For Sale from china manufacturer 0Metal Gutter Shaping Machine Downspouts cold roll forming Machine For Sale from china manufacturer 1Metal Gutter Shaping Machine Downspouts cold roll forming Machine For Sale from china manufacturer 2Metal Gutter Shaping Machine Downspouts cold roll forming Machine For Sale from china manufacturer 3



Description:



Downspout Roll Forming Machine  Main parameter

No.

   Main parameter of Downspout Roll Forming Machine

1

Suitable to process

Color steel plate

2

Width of the plate

330mm

3

Rollers

15rows

4

Dimensions

7400*1150*1510mm

5

Power

5.5+4kw

6

Rolling material

high grade 45# steel(plated chrome on surface)

6

Thickness of the plate

0.3-0.6mm

7

Productivity

8-10m/min

8

Diameter of the roller

Φ66mm

9

Voltage

380V 50Hz 3phases

10

Material of the cutting plate

Cr12

11

Hydraulic

40#

12

Processing precision

Within 1.00mm

13

Control system

PLC control

Equipment components: Man-made uncoiler-roll forming machine-computer control system-hydraulic control system-cutting

Machine components:



Decoiler 1set
Guiding Equipment 1set
Roll Forming Equipment 1set
Post Cut Equipment 1set
Hydraulic Station 1set
PLC Control System 1set
Supporter Table

1set







Application

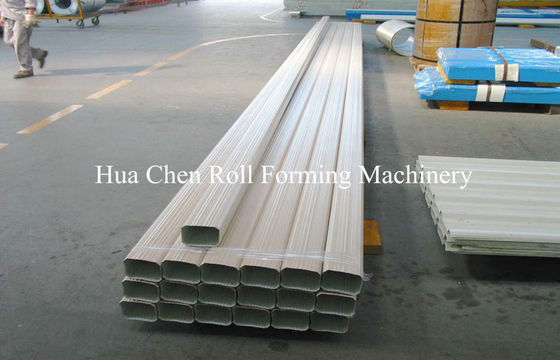

The roll formed product is mor durable than the tranditional ppc pipe, and not easy to aging.

It will make the project more integrate, and help enhancing the image of all project.

Drainpipe bending machine used for bend the roll formed pipe, to connect the drainpipe and the elbowed pipe.





Competitive Advantage





1. CE certification

2 .ISO certification

3. working life 20 years

4. high quality steel

5. High efficiency
