Long Life Precise Steel Floor Deck Roll Forming Machine with CE

1set
MOQ
28000-55000USD
قیمت
Long Life Precise Steel Floor Deck Roll Forming Machine with CE
امکانات گالری توضیحات محصول درخواست نقل قول
امکانات
مشخصات
color: blue
type: automatic
control system: PLC control
cutting system: hydraulic cut
per month: 20 sets
established year: 1997
workers: 100
برجسته کردن:

wall panel roll forming machine,metal deck roll forming machine

,

metal deck roll forming machine

اطلاعات اولیه
Place of Origin: Botou Hebei China
نام تجاری: HC
گواهی: ISO/CE
Model Number: HC70
پرداخت
Packaging Details: Main machine is nude,the computer control box is packed by carton box
Delivery Time: 30days
Payment Terms: 30% deposit by T/T in advance and 70% balance after inspection confirmation before shipment
Supply Ability: 20 sets/month
توضیحات محصول

Precise Steel Floor Deck Roll Forming Machine Long Life

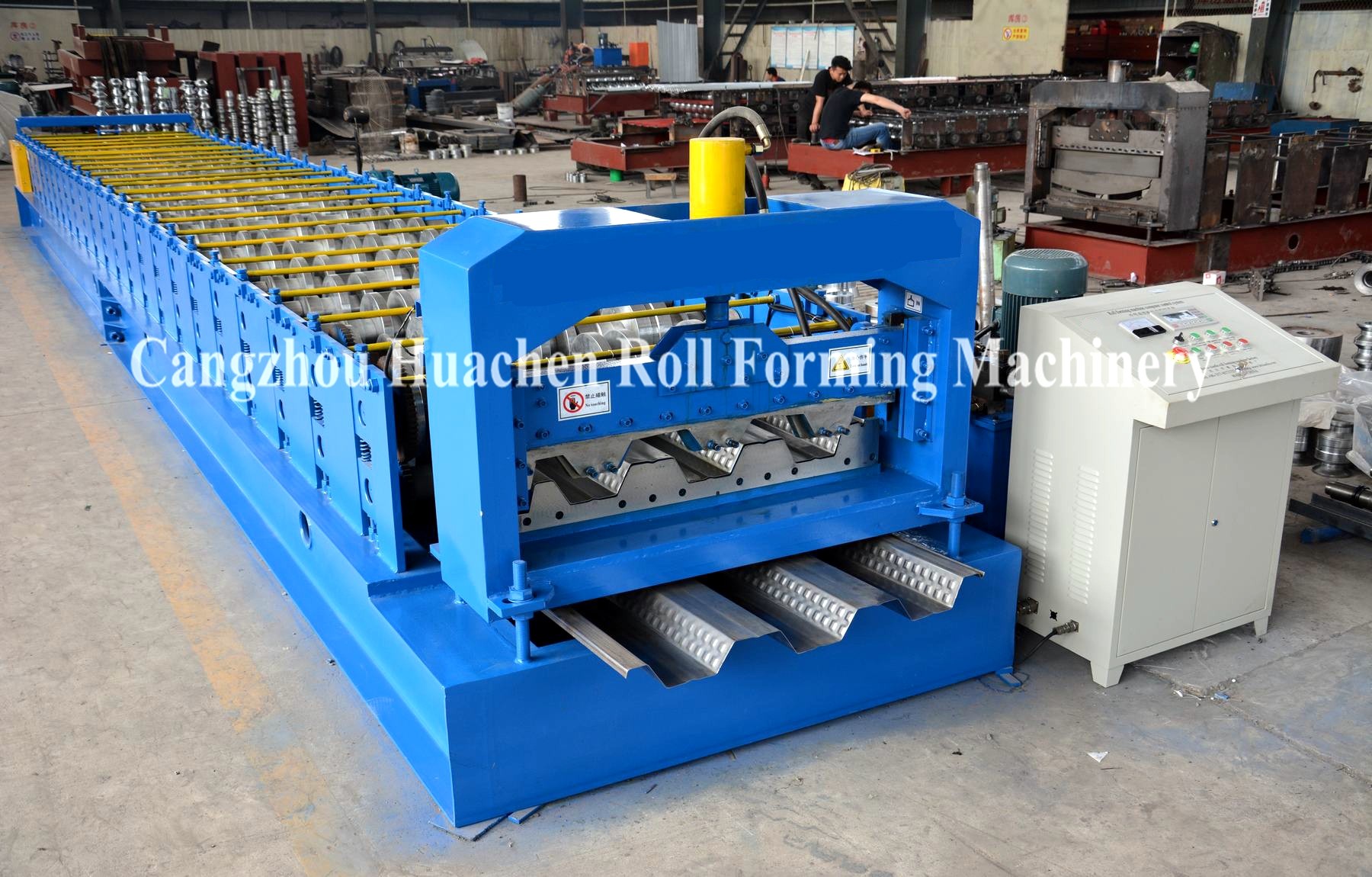

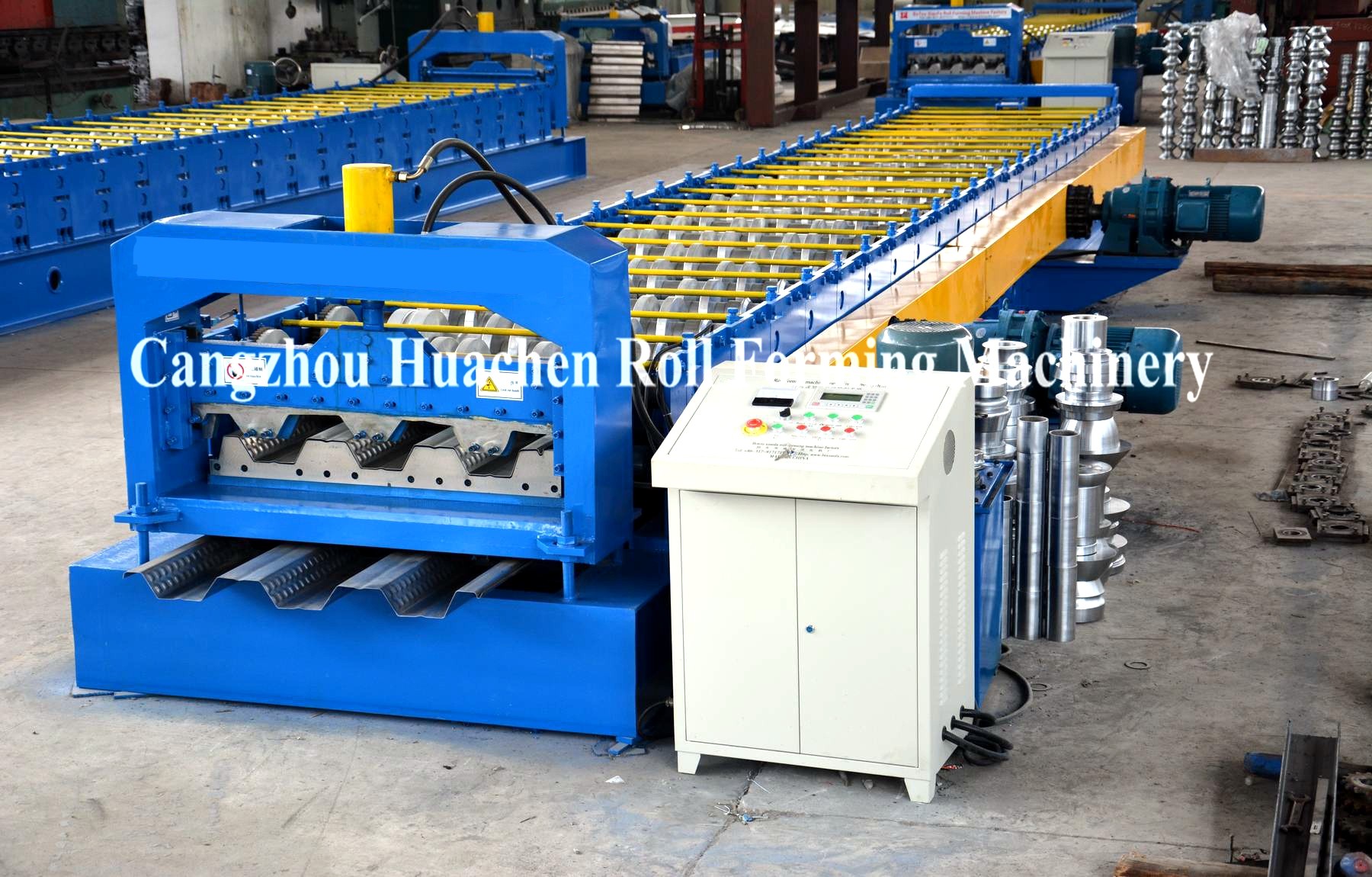

Long Life Precise Steel Floor Deck Roll Forming Machine with CE 0Long Life Precise Steel Floor Deck Roll Forming Machine with CE 1

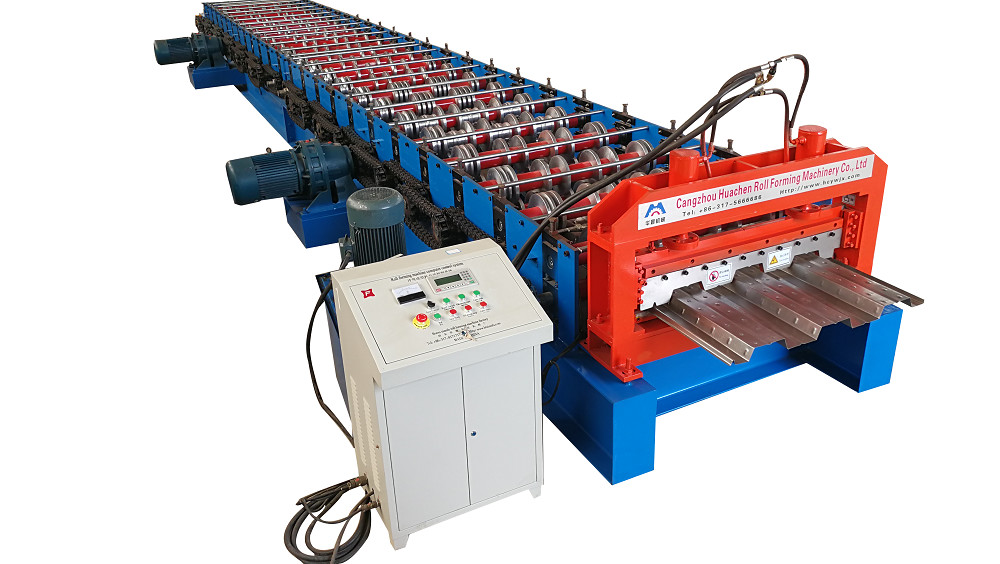

Long Life Precise Steel Floor Deck Roll Forming Machine with CE 2



With our in-depth knowledge and experience, we are engaged in manufacturing, exporting and supplying an excellent quality Floor Deck Roll Forming Machine to our honorable clients. Our offered machine is manufactured under the stern surveillance of our ingenious professionals using optimum quality components and modular technology in adherence with set international norms. Mainly used for plate forming applications, clients can purchase this Floor Deck Roll Forming Machine from us at pocket friendly prices.



Floor Deck Roll Forming Machine Main parameter

No.

   Main parameter of Floor Deck Roll Forming Machine

1

Suitable to process

Color steel plate

2

Width of the plate

1220mm

3

Rollers

24 rows

4

Dimensions

11400*1.85*1.61m

5

Power

33+11.5kw

6

Rolling material

shaft bearing steel(quenching)

6

Thickness of the plate

1.5mm

7

Productivity

15m/min

8

Diameter of the roller

Φ100mm

9

Voltage

380V 50Hz 3phases

10

Material of the cutting plate

Cr12

11

Hydraulic

40#

12

Processing precision

Within 1.00mm

13

Control system

PLC control

Equipment components: Man-made uncoiler-roll forming machine-computer control system-hydraulic control system- cutting





Product application: The metal deck produced by floor deck forming machine ia used as decking of building; It has high strength with big wave length. It adheres well to concrete. Used on high building, it not only saves steel mold plate, but also reduces the weight of storey. With the same bearing capacity, it economized steel and cuts down investment accordingly.





Competitive Advantage



1. CE certification

2. hydraulic motor drive

3. Exported to more than 70 countries

4. suitable for various kinds of steel plate

5. voltage according to customer request

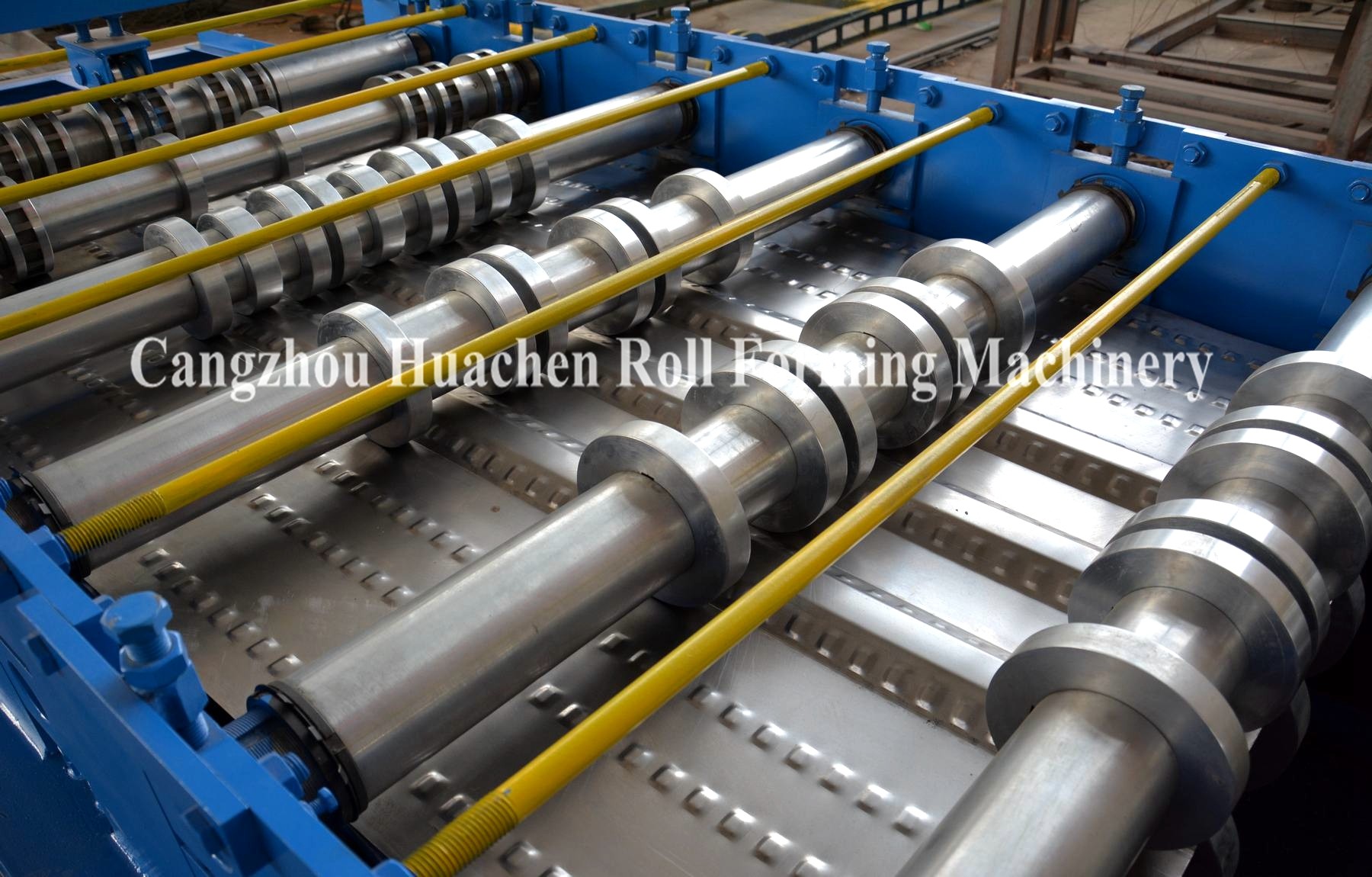

Long Life Precise Steel Floor Deck Roll Forming Machine with CE 3
