جزئیات محصول:
|
| Material: | PPGi GI | capacity: | 8-10m/min |
|---|---|---|---|
| machine weight: | 22T | rollers: | 45# steel |
| Type: | Roll Forming Machine | warranty: | 12 month |
| technical support: | whole life | ||
| برجسته: | metal deck roll forming machine,rolling forming machine,rolling forming machine |
||
| Machine Description | Quantity | Delivery time | Container Type |

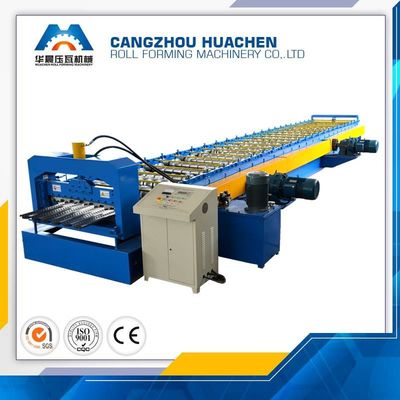

| Metal Floor Deck Sheet Roll Forming Machine | 1 SET |
40 working days after receiving deposit |
One 40GP |
Floor deck are widely used in building: the steel-structured large scale warehouses, plants, supermarkets, shopping
malls, trade markets, stadiums, holiday villages, sanatoriums, hotels, villas, residences, and different kinds of green
houses. What's more, equipment can be designed and manufactured as customers' requests.
Components of Metal Floor Deck Sheet Roll Forming Machine
| No. | Name | Unit | Qty |
| 1 | Manual decoiler | set | 1 |
| 2 | Main forming machine | set | 1 |
| 3 | PLC control system | set | 1 |
| 4 | Hydraulic pump station | set | 1 |
| 5 | Post cut | set | 1 |
| 6 | Electric motor | set | 1 |
| 7 | Output table | set | 1 |
Production Process of Floor Decking Plate Sheet Roll Forming Machines:
Uncoiling→Feeding material into machine→Roll forming→Measuring length→ Auto cutting→ Products receiving
Parameters of Floor Decking Plate Sheet Roll Forming Machines
| Product name | Decking Plate Sheet Forming Machine | |||
| NO. | Items | Parameters | Remark | |
| 1 | Suitable Material | Type | GI/PPGI/AL | |
| Width | 1000/1200/1220/1250mm | Custom | ||
| Thickness | 0.40-0.70mm | |||
| 2 |
Product Specifications |
Length | Any length | |
| Length Tolerance | ±2mm | |||
| 3 | Working Speed | 25 m/min (10 piece per min as 8 feet per piece) | Standard machine | |
| 4 | Control System | Mitsubishi/Siemens PLC& transducer | Custom | |
| 5 | Total Power | About 15KW | ||
| 6 | Total Weight | About 14T | Up to final design | |
1. Installation and training of machine manufacturer:
a.If buyers visit our factory and check the machine, we will teach you how to install and use the roll forming machine for sale , and also train your workers/technician face to face.
b.Without visiting, we will send you user manual and video to teach you to install and operate.
c.If buyer needs our technician to go to your local factory, please arrange board and lodging and other necessary things.
2. After Service of roll forming machine for sale
a.One year guarantee for whole roll forming machine for sale.
b.24 hours technical support by email or calling
c.If there is any problem found of steel roof sheet roll forming machinery, we will repair roll forming machine for sale for free in one year.
