Automatic Roofing Roll Forming Machine Cold Rolled Steel Panel Forming Line

نظرات مشتریان
ماشین آسان برای استفاده. رئیس بسیار خوب است

—— آقای آنگولون از اروپا

این سازنده خوب، یک ارتباط خوب انگلیسی است و من ماشین های شما را دوست دارم. این کیفیت خوب و زیبا است!

—— Mr.Mark از آفریقا

تهیه کننده خوب! من تحویل سریع و چرخه تولید سریع خود را می خواهم، با شما تماس می گیرم.

—— Mr.Jack از امریکا

چت IM آنلاین در حال حاضر

Automatic Roofing Roll Forming Machine Cold Rolled Steel Panel Forming Line

Automatic Roofing Roll Forming Machine Cold Rolled Steel Panel Forming Line
Automatic Roofing Roll Forming Machine Cold Rolled Steel Panel Forming Line
Automatic Roofing Roll Forming Machine Cold Rolled Steel Panel Forming Line Automatic Roofing Roll Forming Machine Cold Rolled Steel Panel Forming Line Automatic Roofing Roll Forming Machine Cold Rolled Steel Panel Forming Line Automatic Roofing Roll Forming Machine Cold Rolled Steel Panel Forming Line Automatic Roofing Roll Forming Machine Cold Rolled Steel Panel Forming Line Automatic Roofing Roll Forming Machine Cold Rolled Steel Panel Forming Line

تصویر بزرگ :  Automatic Roofing Roll Forming Machine Cold Rolled Steel Panel Forming Line

جزئیات محصول:
Place of Origin: Botou Hebei China
نام تجاری: HC
گواهی: ISO
Model Number: HC25
پرداخت:
Minimum Order Quantity: 1set
قیمت: 8000-29000USD
Packaging Details: Main machine is nude,the computer control box is packed by carton box
Delivery Time: 30days
Payment Terms: 30% deposit by T/T in advance and 70% balance after inspection confirmation before shipment
Supply Ability: 20 sets/month

Automatic Roofing Roll Forming Machine Cold Rolled Steel Panel Forming Line

شرح
Material: G550 Thickness: 0.3-0.6mm
Speed: 8-10m/min
برجسته:

cold roll forming machine,roof panel roll forming machine

,

roof panel roll forming machine

Automatic Roofing Roll Forming Machine Cold Rolled Steel Panel Forming Line

Automatic Roofing Roll Forming Machine Cold Rolled Steel Panel Forming Line 0Automatic Roofing Roll Forming Machine Cold Rolled Steel Panel Forming Line 1Automatic Roofing Roll Forming Machine Cold Rolled Steel Panel Forming Line 2

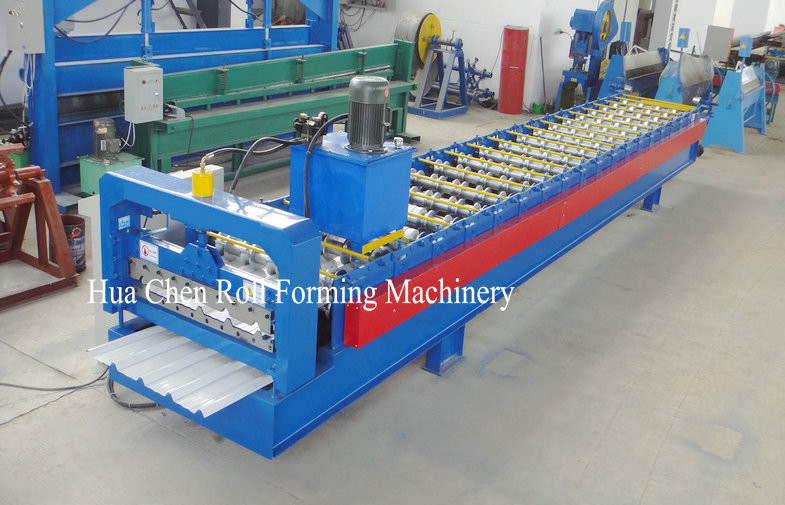

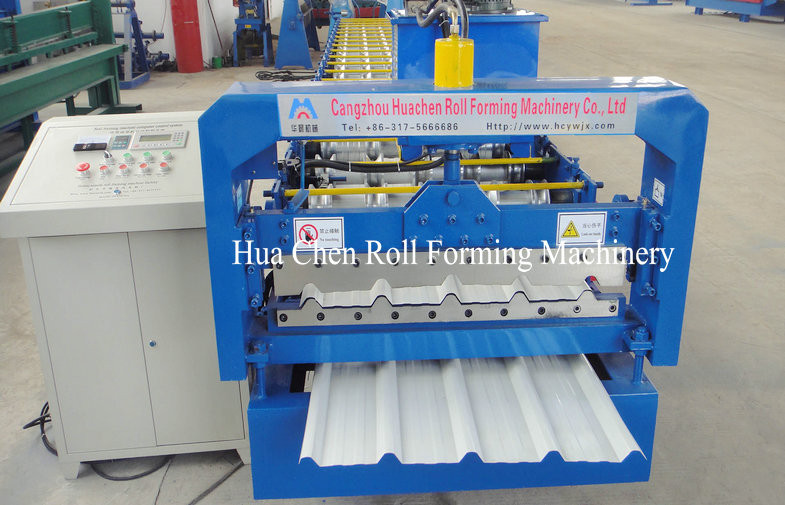

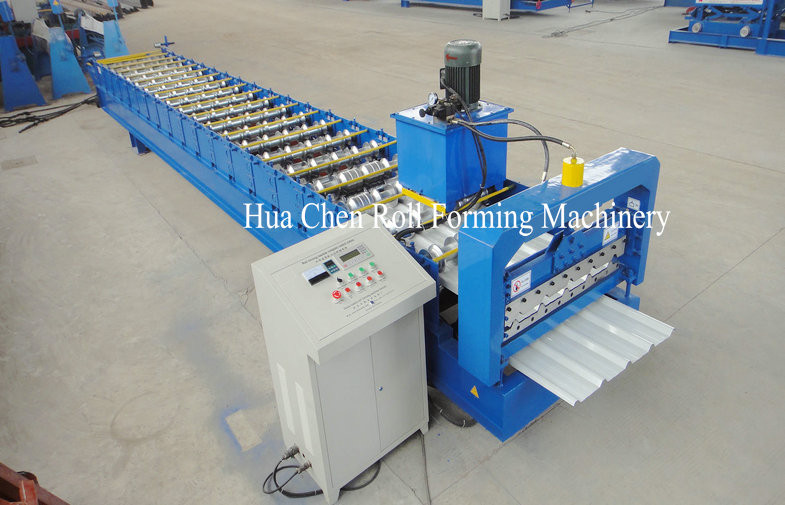

Description: Automatic Roofing Roll Forming Machine Cold Rolled Steel Panel Forming Line



 Main parameter

No.

   Main parameter of Roofing Sheet Roll Forming Machine

1

Suitable to process

Color steel plate

2

Width of the plate

914mm

3

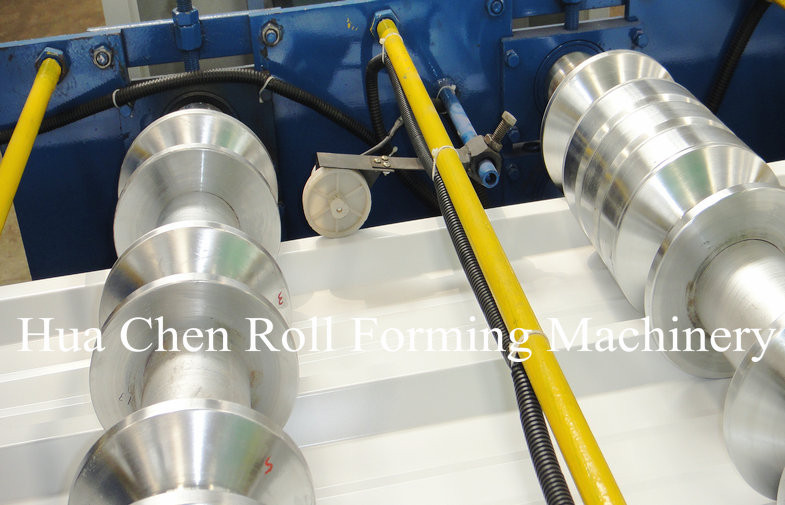

Rollers

19 rows

4

Dimensions

9100*1450*1510mm

5

Power

3+3kw

6

Rolling material

45# steel(plated chrome on surface)



7

Thickness of the plate

0.3-0.6mm

8

Productivity

15-20m/min

9

Diameter of the roller

Φ70mm

10

Voltage

380V 50Hz 3phases

11

Material of the cutting plate

Cr12

12

Hydraulic

40#

13

Processing precision

Within 1.00mm

14

Control system

PLC control

Equipment components: Man-made uncoiler-roll forming machine-computer control system-hydraulic control system-cutting





Application

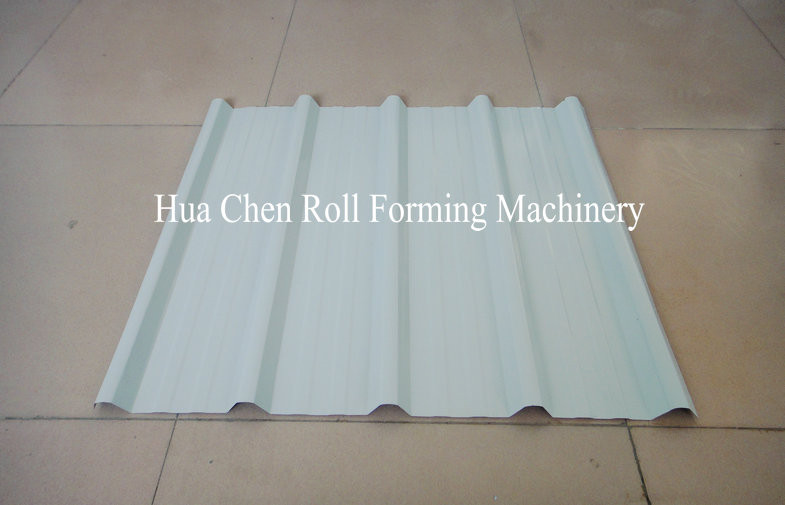

This type of sheet can be widely used in plant, house, storage and simple steel roof and wall. It has advantage of pretty appearance, durable using and so on.



Our firm is engaged in offering a wide array of Corrugated Roof Roll Forming Machine that is widely used in construction industry for making the roof tile and wall panel outside of building. The components used for its fabrication are procured from reliable sources of the market to deliver high performance and superior quality at users end. Our offered Corrugated Roof Roll Forming Machine is highly appreciated for its outstanding functionality, sturdy construction, optimum strength, easy usage and longer functional life. We offer this machine in different specifications to fulfill the diverse needs of clients at most affordable prices.
