جزئیات محصول:
|
| Coil width: | 1220mm | Thickness: | 0.3-0.6mm |
|---|---|---|---|
| Speed: | 20m/min | Roll material: | No.45 steel |
| Weight: | 4T | Size: | 7.2*1.5*1.51m |
| برجسته: | roof tile roll forming machine,cold roll forming machine,cold roll forming machine |
||

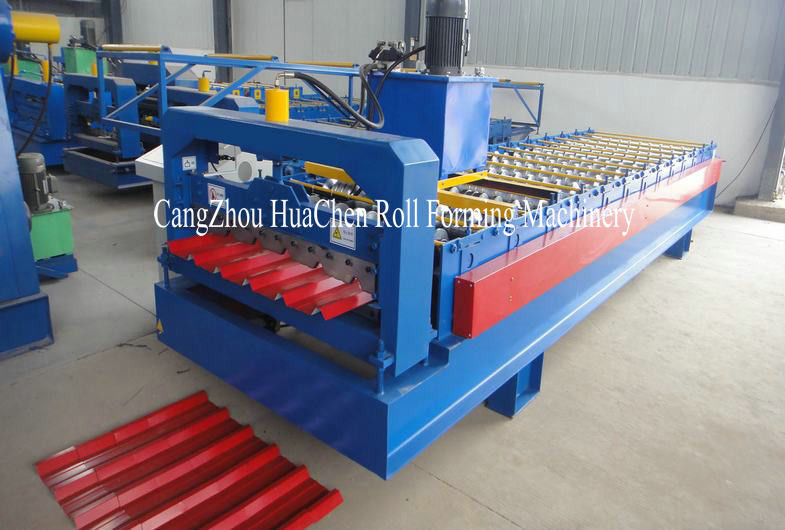

Anti Rust Roller Metrocopo Metal Roll Forming Machines / Steel Sheet Bending Machine
Steel Sheet Bending Machine, Sheet Rolling Machine
1. Working Flow:
Indian Design Metal Roofing Sheet Roll Forming Machine For 1220mm Material
Manual Uncoiler- Roll Forming Machine - Computer Control System - Hydraulic Control System - Cutting
Quick Detail:
Indian Design Metal Roofing Sheet Roll Forming Machine For 1220mm Material
1. Suitable to process: Color steel plate
2. Width of the plate: 1220mm

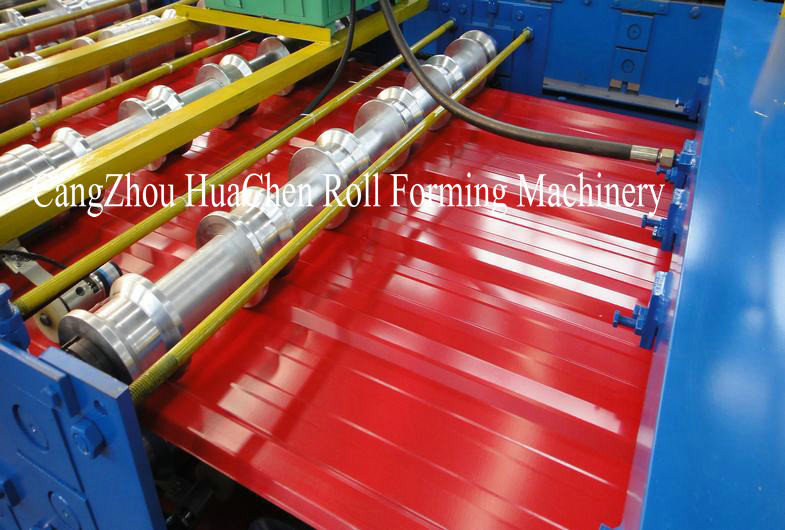

3. Rollers: 13 rows
4. Dimensions: 6.6*1.55*1.51m
5. Power: 4+4kw
6. Rolling material: 45# steel ( plated chrome on surface )
7. Thickness of the plate:0.3-0.7mm
8. Voltage: 380V 50Hz 3 phases

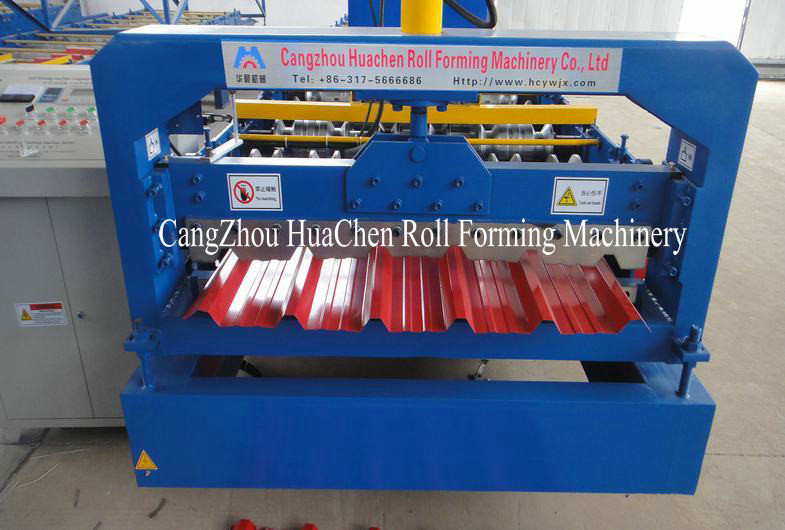

9. Material of the cutting plate: Cr12
10. Hydraulic: 40#
11. Processing precision: Within 1.00mm
12. Control system: PLC control
Description:
Indian Design Metal Roofing Sheet Roll Forming Machine For 1220mm Material
Roof Sheet Roll Forming Machine Main parameter
|
No. |
Main parameter of Roof Sheet Roll Forming Machine |
|
|
1 |
Suitable to process |
Color steel plate |
|
2 |
Width of the plate |
1220mm |
|
3 |
Rollers |
13 rows |
|
4 |
Dimensions |
6700*1550*1510mm |
|
5 |
Power |
4+4kw |
|
6 |
Rolling material |
45# steel(plated chrome on surface) |
|
7 |
Thickness of the plate |
0.3-0.6mm |
|
8 |
Productivity |
8-10m/min |
|
9 |
Diameter of the roller |
Φ70mm |
|
10 |
Voltage |
380V 50Hz 3phases |
|
11 |
Material of the cutting plate |
Cr12 |
|
12 |
Hydraulic |
40# |
|
13 |
Processing precision |
Within 1.00mm |
|
14 |
Control system |
PLC control |

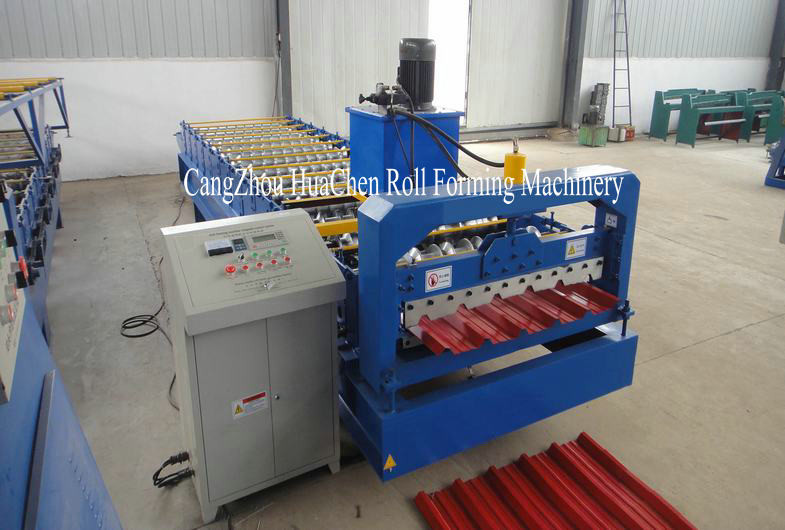

Equipment components: Man-made uncoiler-roll forming machine-computer control system-hydraulic control system-cutting
Application

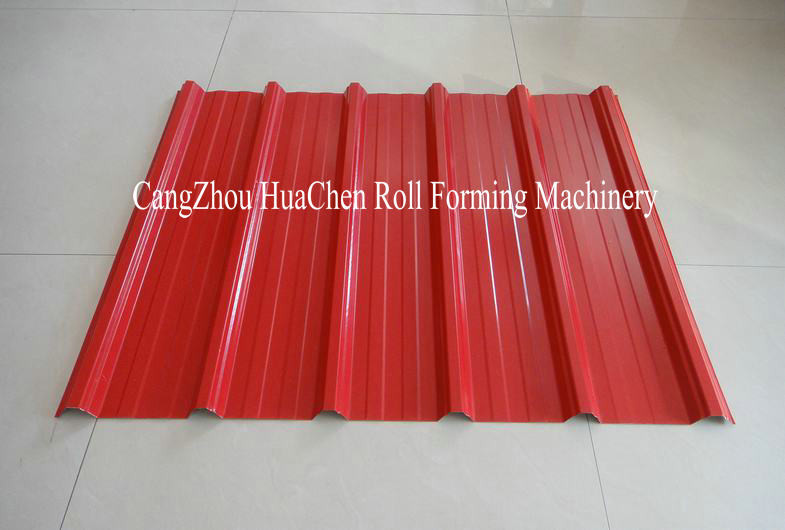

This type of sheet can be widely used in plant, house, storage and simple steel roof and wall. It has advantage of pretty appearance, durable using and so on.
Competitive Advantage
1. good service
2. easy installation
3. short delivery time
4. professional design team
5. easy to use
Worrying about machine packing and delivery ?
1.Main forming machine and un-coiler is naked(If you need we can also packed with water-proof plastic)
2.PLC control system and motor pump are packed with water proof paper coverage
3.All machines need one 40'container to hold.
How to make payment ?
Payment terms: 30% T/T as deposit when contract signed, and 70% balance before shipment.
Delivery time: 30-45 days after receiving deposit
Where is your factory located ? How can I visit you ?
Huachen Roll forming machinery is located at Industrial Zone of Botou , Hebei Province of China. Welcome to visit us by:
1.Fly to BEIJING or TIANJIN Airport, then take high speed train from BEIJING NAN to CANGZHOU XI, about 1 hour, I will pick up you there.
2.Fly to SHANGHAI Airport, then take high speed train from SHANGHAI HONGQIAO to CANGZHOUXI, about 4.5 hour,I will pick up you there.
Want a free quotation to make budget ? Just send me inquiry now
