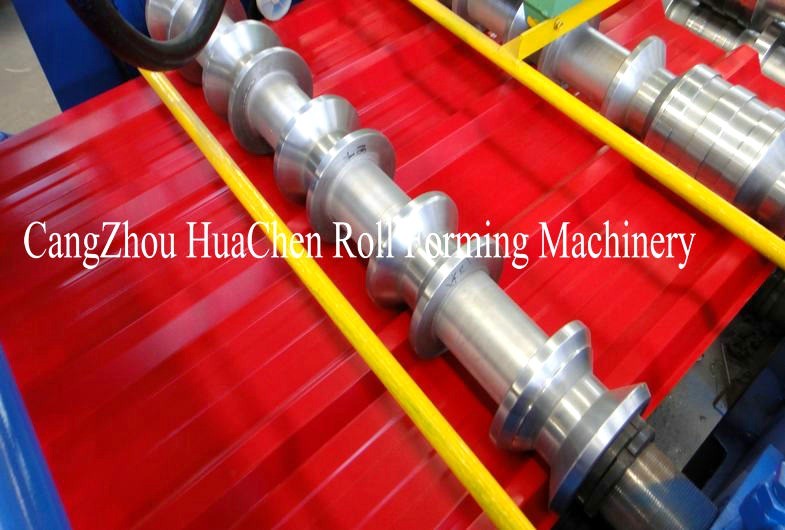

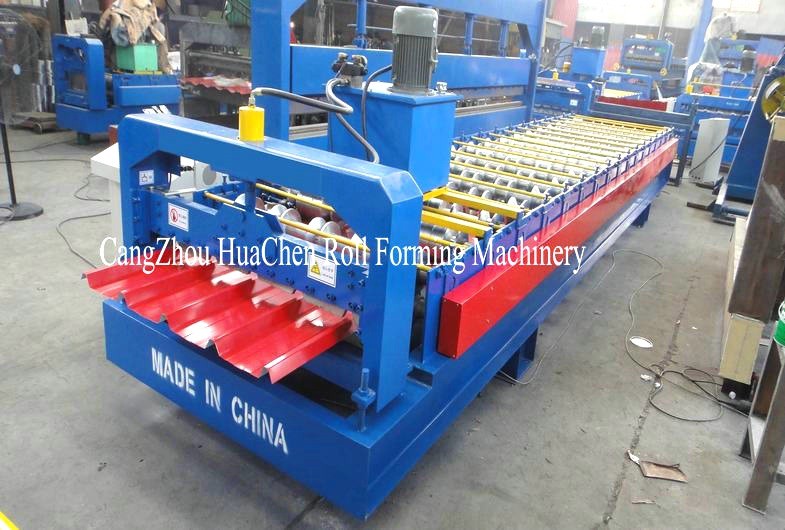

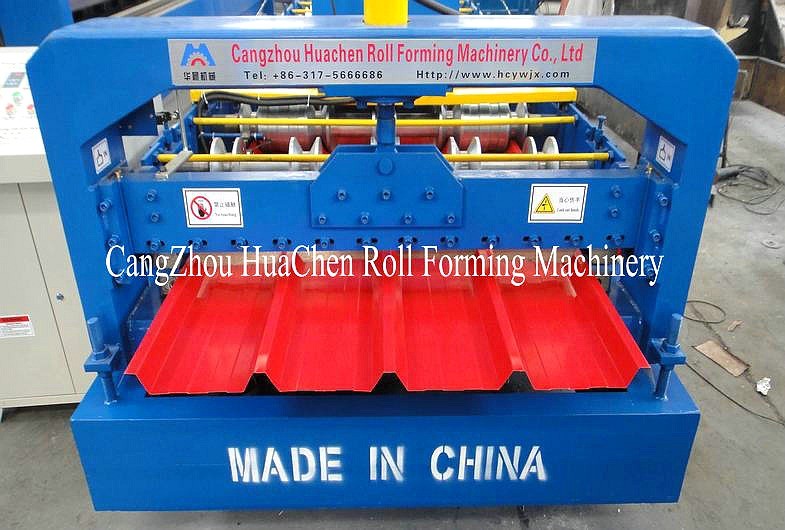

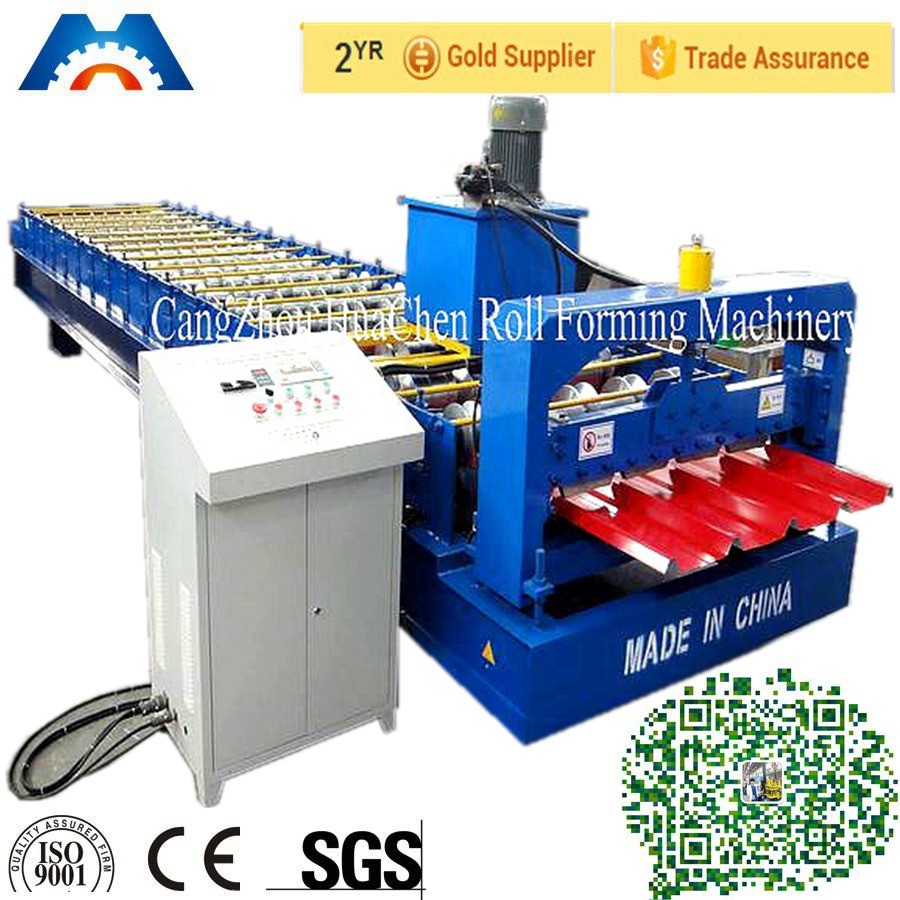

Corrugated Sheet Metal Roofing Roll Forming Machine Computer Control

Corrugated Sheet Metal Roofing Roll Forming Machine Computer Control
Corrugated Sheet Metal Roofing Roll Forming Machine Computer Control
Corrugated Sheet Metal Roofing Roll Forming Machine Computer Control Corrugated Sheet Metal Roofing Roll Forming Machine Computer Control Corrugated Sheet Metal Roofing Roll Forming Machine Computer Control Corrugated Sheet Metal Roofing Roll Forming Machine Computer Control Corrugated Sheet Metal Roofing Roll Forming Machine Computer Control Corrugated Sheet Metal Roofing Roll Forming Machine Computer Control

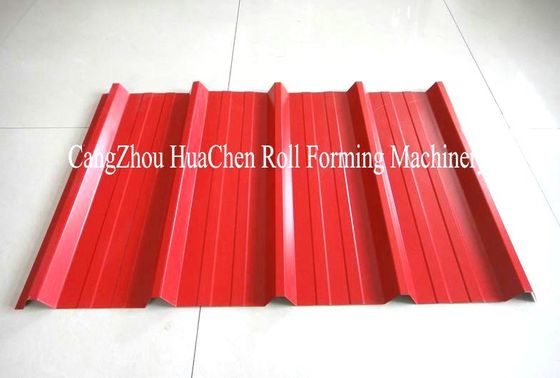

تصویر بزرگ :  Corrugated Sheet Metal Roofing Roll Forming Machine Computer Control

جزئیات محصول:
محل منبع: Botou Hebei China
نام تجاری: HC
گواهی: ISO
شماره مدل: HC37-200-1000
پرداخت:
مقدار حداقل تعداد سفارش: 1set
قیمت: 8000-29000USD
جزئیات بسته بندی: Main machine is nude,the computer control box is packed by carton box
زمان تحویل: 30days
شرایط پرداخت: 30% deposit by T/T in advance and 70% balance after inspection confirmation before shipment
قابلیت ارائه: 20 sets/month

Corrugated Sheet Metal Roofing Roll Forming Machine Computer Control

شرح
برجسته:

roof tile roll forming machine,roof panel roll forming machine

,

roof panel roll forming machine

Corrugated Sheet Metal Roofing Roll Forming Machine





Roofing Sheet Roll Forming Machine



Description:



Roofing Sheet Roll Forming Machine Main parameter

No.

   Main parameter of Roofing Sheet Roll Forming Machine

1

Suitable to process

Color steel plate

2

Width of the plate

1250mm

3

Rollers

17 rows

4

Dimensions

8200*1550*1510mm

5

Power

4+4kw

6

Rolling material

45# steel(plated chrome on surface)

7

Thickness of the plate

0.3-0.6mm

8

Productivity

15-20m/min

9

Diameter of the roller

Φ70mm

10

Voltage

380V 50Hz 3phases

11

Material of the cutting plate

Cr12

12

Hydraulic

40#

13

Processing precision

Within 1.00mm

14

Control system

PLC control

Equipment components: Man-made uncoiler-roll forming machine-computer control system-hydraulic control system-cutting



Corrugated Sheet Metal Roofing Roll Forming Machine Computer Control 0Corrugated Sheet Metal Roofing Roll Forming Machine Computer Control 1Corrugated Sheet Metal Roofing Roll Forming Machine Computer Control 2

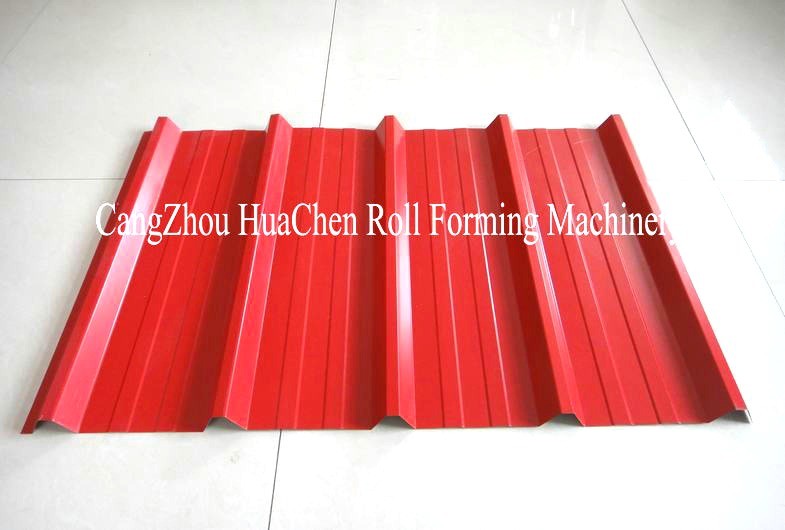

Application



This type of sheet can be widely used in plant, house, storage and simple steel roof and wall. It has advantage of pretty appearance, durable using and so on.





Competitive Advantage





1. elegant appearance

2. high quality steel structure

3. One year free guarantee

4. lifelong maintain

5. Panasonic PLC
