Gardens Knudson Roll Former / Sheet Metal Roll Forming Machines

Gardens Knudson Roll Former / Sheet Metal Roll Forming Machines
Gardens Knudson Roll Former / Sheet Metal Roll Forming Machines
Gardens Knudson Roll Former / Sheet Metal Roll Forming Machines Gardens Knudson Roll Former / Sheet Metal Roll Forming Machines

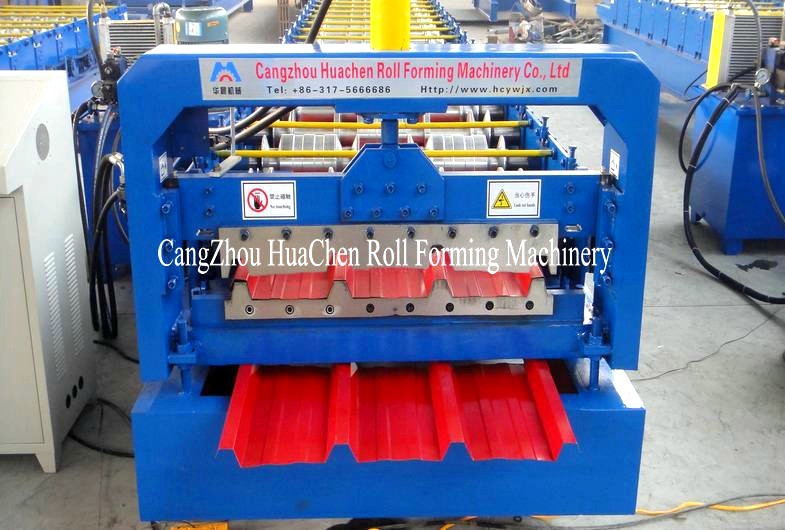

تصویر بزرگ :  Gardens Knudson Roll Former / Sheet Metal Roll Forming Machines

جزئیات محصول:
محل منبع: Botou Hebei China
نام تجاری: HC
گواهی: ISO
شماره مدل: HC38
پرداخت:
مقدار حداقل تعداد سفارش: 1set
قیمت: 8000-29000USD
جزئیات بسته بندی: Main machine is nude,the computer control box is packed by carton box
زمان تحویل: 30days
شرایط پرداخت: 30% deposit by T/T in advance and 70% balance after inspection confirmation before shipment
قابلیت ارائه: 20 sets/month

Gardens Knudson Roll Former / Sheet Metal Roll Forming Machines

شرح
type: Gardens Knudson Roll Former / Sheet Metal Roll Forming Machines Factories Use rollers: 18
roller material: No.45 steel warranty: 12 month
برجسته:

roof tile roll forming machine,cold roll forming machine

,

cold roll forming machine

Gardens Knudson Roll Former / Sheet Metal Roll Forming Machines


Machine design adopt the advanced European technology and craft , the machine design principle is to use all kinds of special rollers to form the customized shape of the roof tile, roof sheets.
Working Flow
Decoiler--Feeding and Guiding--Main Roll Forming--Cutting--Collecting Products
Machine Features


Feature1

High accuracy, length cutting tolerance is +/-1.5mm(per) it can guarantee the produts produced by the machine are very beautiful

Feature2Electrical motor gives the power to the chains or gear boxes to bring the machine to run It is very easy to install the machine
Feature3When producing another size of 1 shape you just need to change the spacers
Feature4Engineers adopted the advanced European technology and craft to design machines
Feature5Machine structure is very stable ,when machine running it is very safe
Feature6Cutting length, width, quantity are adjustable by PLC control system , hydraulic station provide the Cutting motor power for the cutting models
Feature7We will provide any technical support for any customers


Production Description
The roll forming machine adopt the advanced European technology, we choose the best material for every components of the machine, the material of the rollers is 45# steel ,chroming and polishing on the surface which can make the production profile surface is smooth when producing, the machine base adopts welded steel plate structure ,machine can be stable and fix , chains and gear box move the line , motor drives.
Working Flow
Decoiler--Feeding and Guiding--Main Roll Forming--Cutting--Collecting Products
Composition of machine

  • Decoiler
  • Main roll forming machine
  • Hydraulic cutting device
  • Hydraulic station
  • Manual out table

Machine Specifications


Coil MaterialThickness0.4-0.8mm
Coil widthDepend on customer’s requires
Yield StrengthG250Mpa
MaterialGalvanized steel sheet, color steel,
DecoilerCoil WidthMax. 1300mm
I.D510-610mm
O.DMax. 1200mm
CapabilityMax. 10Tons
Decoiler typeManual / Hydraulic/Automatic
Feed and levelPinch feeding1 Units ( 2 Rollers )
Cutting deviceCutting motionHydraulic Cutting, post-Cutting ( cutting sheet after forming )
Cutting bladesCr12Mov with heat treatment HRC58-62
Length MeasuringAutomatic length measuring by encoder & PLC.
Cutting Tolerance+/-1.5mm(per 3m)
Roll Forming MachineForming Stations18 Stations
Rectifying1 unit
Roller materialGCr15 steel, heat treatment
Diameter of shaft80mm
Shaft materialHigh grade 45# steel
Drive typeChains
Forming speed15m/min
Main power7.5KW
Servo motor1 Units
Driven SystemDriven by MotorTransmission by chains
Electrical controlPLCPANASONIC Brand or Custom-made
InverterYASKAWA Brand or Custom-made
Touch screenMCGS Brand or Custom-made
Operation typeTouch screen & Button
Hydraulic StationHydraulic stationFamous Chinese brand
Hydraulic power7.5KW
Runout TableTable typeSimple non-power type
FunctionTo support the finished panels
Total Weight APRRO 7-9 TONS



Machine Pictures
Gardens Knudson Roll Former / Sheet Metal Roll Forming Machines 0Gardens Knudson Roll Former / Sheet Metal Roll Forming Machines 1Gardens Knudson Roll Former / Sheet Metal Roll Forming Machines 2
