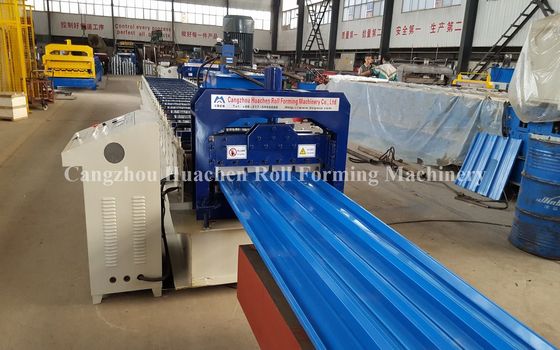

8-12m / Min Speed Roofing Sheet Roll Forming Machine 7.5kw 380v 50hz

8-12m / Min Speed Roofing Sheet Roll Forming Machine 7.5kw 380v 50hz
8-12m / Min Speed Roofing Sheet Roll Forming Machine 7.5kw 380v 50hz
8-12m / Min Speed Roofing Sheet Roll Forming Machine 7.5kw 380v 50hz 8-12m / Min Speed Roofing Sheet Roll Forming Machine 7.5kw 380v 50hz

تصویر بزرگ :  8-12m / Min Speed Roofing Sheet Roll Forming Machine 7.5kw 380v 50hz

جزئیات محصول:
محل منبع: Botou Hebei China
نام تجاری: HC
گواهی: ISO
شماره مدل: HC38
پرداخت:
مقدار حداقل تعداد سفارش: 1set
قیمت: 9000-29000USD
جزئیات بسته بندی: Main machine is nude,the computer control box is packed by carton box
زمان تحویل: 30days
شرایط پرداخت: 30% deposit by T/T in advance and 70% balance after inspection confirmation before shipment
قابلیت ارائه: 20 sets/month

8-12m / Min Speed Roofing Sheet Roll Forming Machine 7.5kw 380v 50hz

شرح
type: Roofing Sheet Roll Forming Machine rollers: 24
roller material: No.45 steel warranty: 12 month
برجسته:

roof tile roll forming machine,cold roll forming machine

,

cold roll forming machine

8-12m / Min Speed Roofing Sheet Roll Forming Machine 7.5kw 380v 50hz

This roof sheet roll forming machine consists of several parts, as listed below.


1. 5T decoiler
3. roll forming machine
6. Hydraulic shear
7. Hydraulic station
8. PLC control cabinet
9. run out table




Working process:

Passive decoiling → guided material feeding → rolling → cut-to-length → run out



Description:

Roof Panel Roll Forming Machine

The end product of this roof panel roll forming machine, namely roof panel, has found a lot of applications around the world. For example, it could be used to make the roofs for workshop, warehouse, hangar, gymnasium, theatre, exhibition hall, engine house as well as many other industrial and civilian buildings.


Common Features
1. The feeding widths are standard values including 1000mm, 1200mm and 1250mm. So, steel coils bought on the market could be processed by this machine directly, indicating that slitting is not necessary. In this way, the steel coil is fully utilized without any waste.

2. The finished roof panel is characterized by bright color, easy connection and convenient maintenance. The panel has reinforcing ribs, and corrugation is avoided during production. In addition, its mechanical strength meets the requirement of general use.

3. The rib height of the finished panel is not too high, so it is not very hard for us to manufacture this roll forming machine, and the machine is available at a reasonable price.

4. This product could be customized on the basis of customer's requirements and relevant drawings.

Roof panels made by this GWC25-205-820 roof panel roll forming machine are extremely popular on the market because of the high utilization rate, low depth (the height from the top of a crest to the bottom of a trough) and the cost-effective performance.



Applications:

  1. workshop
  2. warehouse
  3. hangar
  4. gymnasium
  5. theatre
  6. exhibition hall
  7. engine house
  8. industrial buiding
  9. civilian buiding



Specifications


Model HC38 Note
Applicable material Color plate, galvanized sheet, galvalume plate and aluminum sheet This machine is customizable upon each customer's requirements and the characteristics of processed material.
Feeding width 1000mm/1200mm
Processing thickness 0.4-0.8mm
Roller material 45# steel coated with hard chrome
Main motor power / hydraulic station power 5.5kW / 3kW These parameters can be set according to the required production capacity.
Forming passes 24
Forming speed 5-15m/minute
Machine dimensions 9.5×1.3×1.2m
Machine weight 6.5T





Competitive Advantage:

Besides the common features, this product also possesses other outstanding properties.
1. Our roof panel roll forming machine can add one pitch and becomes GWC35-125-875 type. The feeding width is changed to 1200mm accordingly.

2. This machine could work with bending machine to manufacture girderless arch roof.
