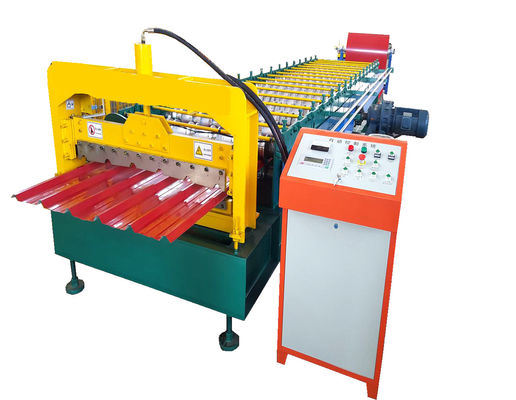

Galvanized Steel Profile Metal Roofing Corrugated Sheet Roll Forming Machines C10

Galvanized Steel Profile Metal Roofing Corrugated Sheet Roll Forming Machines C10
Galvanized Steel Profile Metal Roofing Corrugated Sheet Roll Forming Machines C10
Galvanized Steel Profile Metal Roofing Corrugated Sheet Roll Forming Machines C10 Galvanized Steel Profile Metal Roofing Corrugated Sheet Roll Forming Machines C10

تصویر بزرگ :  Galvanized Steel Profile Metal Roofing Corrugated Sheet Roll Forming Machines C10

جزئیات محصول:
Place of Origin: China
نام تجاری: HC
گواهی: ISO CE
Model Number: HC25
پرداخت:
Minimum Order Quantity: 1set
قیمت: USD8000-15000
Packaging Details: 1.Main roll forming machine and un-coiler is nude packing (If you need, we can also packed it with water-proof plastic) 2. PLC control system and motor pump are packed with water proof paper,spare parts in carton box. 3.One set of machine needs a 40' con
Delivery Time: 30 work days
Payment Terms: D/A, Western Union, L/C, T/T
Supply Ability: 20 sets per month

Galvanized Steel Profile Metal Roofing Corrugated Sheet Roll Forming Machines C10

شرح
Material: PPGi GI capacity: 20m/min
machine weight: 4.5T rollers: 45# steel
Type: Roof Sheet Roll Forming Equipment cutting blade: Cr12
برجسته:

roof tile roll forming machine,roof panel roll forming machine

,

roof panel roll forming machine



Double layer Full Automatic Roof Sheet Roll Forming Machine

Galvanized Steel Profile Metal Roofing Corrugated Sheet Roll Forming Machines C10 1Galvanized Steel Profile Metal Roofing Corrugated Sheet Roll Forming Machines C10 2

Galvanized Steel Profile Metal Roofing Corrugated Sheet Roll Forming Machines C10 3

Parameter for reference



Description Specification
Main moter power 5.5KW
Hydraulic station power 4KW
Hydraulic oil pump CB-E310
Sprocket P-25.4
Roller station 14
Yield strength 32MPa
Diameter of principal axis 95MM
Material of roller 45#steel hard chrome plating
Processing speed 8m/min
Thickness 0.3-1mm
Installation dimension about(L*W*H) 7.5*1.5*1.2M
Total weight 3.8T
Equipment parts includes:forming machine,hydraulic cutter,hydraulic station,electric controlling system,counter,product supporter







Material of main equipment of Roll Forming Machine







1 Roller material: high grade No.45 forged steel, plated hard chrome on the surface of roller with thickness 0.05mm



2 Active shaft material: high grade No.45 carbon wrought steel at diameter 75mm



3 Cutter blade: Cr12 mould steel with quenched treatment



4 Eletric elements: control systerm with PLC model S7-200,Siemens transducer with ABB control panel with TP 170, Siemens it can input 10 sets of spec at one time



5 Oil tank model of hydraulic systerm: CB-E310





(They can be modified according to customer requirements)







glazed roof tile making single-layer color steel roofing sheet roll forming machine made in China





Usage:



Color steel roll forming machine is widely used in producing color steel sheet for buildings.



About us



We are special in roll forming machine for nearly 20 years, with high quality and competitive price in China.

Our company covers an area of 30,000 square meters, including separated workshop for glazed roll forming machine, sandwich panel roll forming machine, C/Z purlin roll forming machine and Plastic coated workshop etc. the showcase workshop with our products open also is waiting for your coming.

our products are popular in Russia, India, UK, USA, Kazakhstan, Tajikstan ,Malaysia, Nigeria, Rumania and Albania etc. more than 50 countries and region with acclaim.
